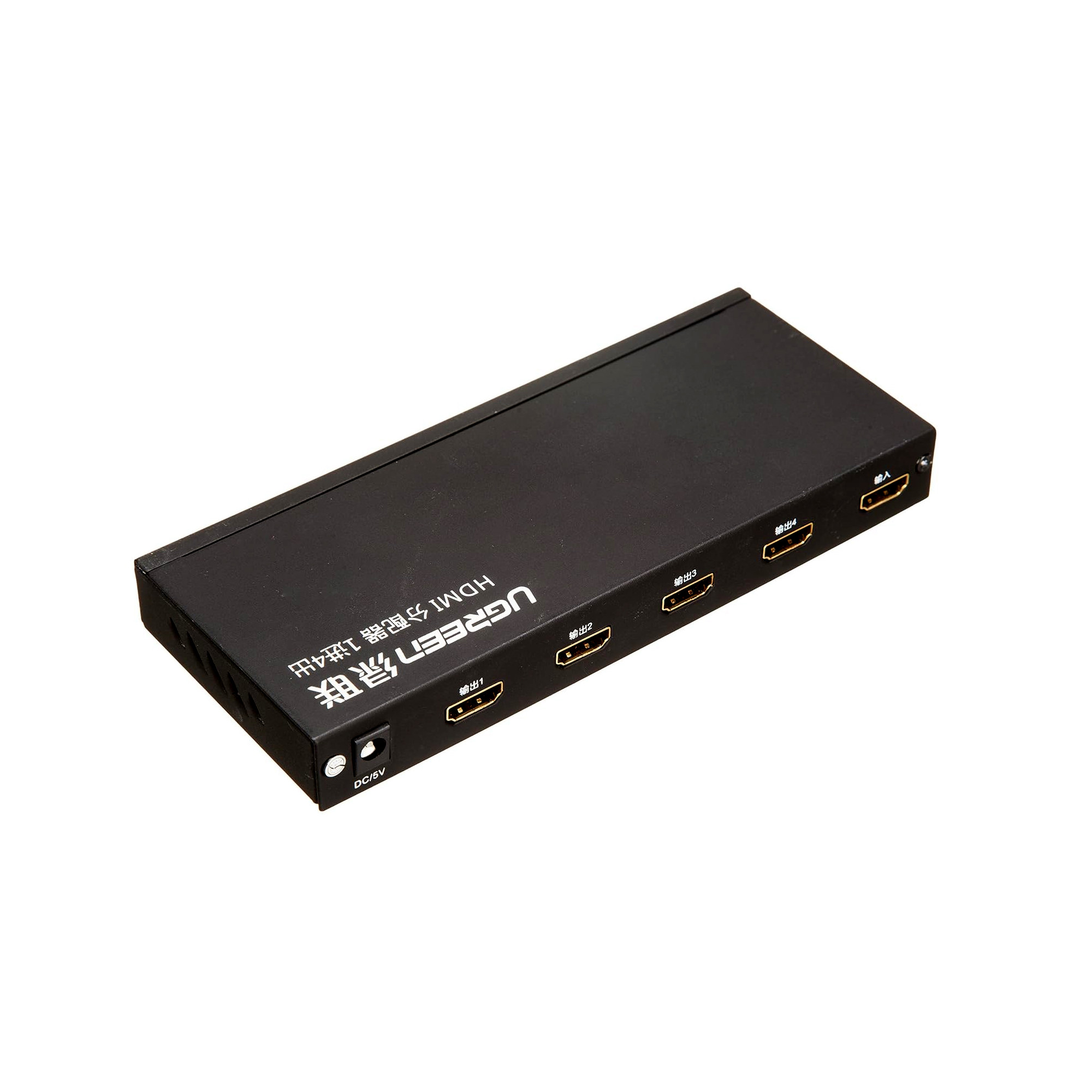

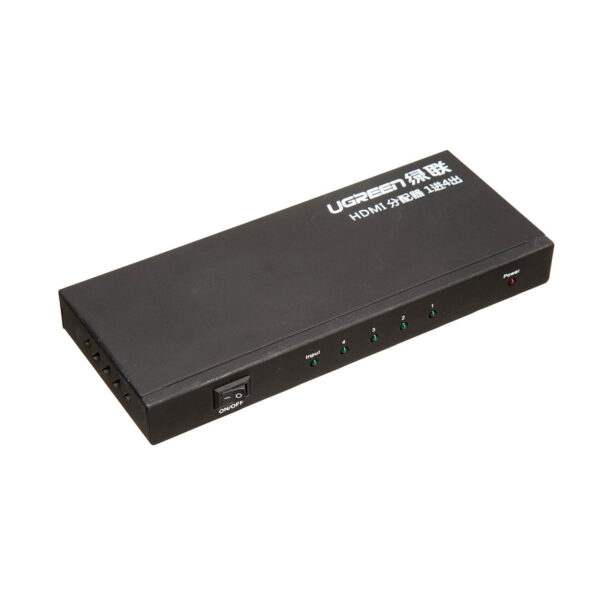

UGREEN 40202 EU 1×4 HDMI Amplifier Splitter (Black) 4K@30Hz, 10.2Gbps, HDCP 1.4, 1-in-4-Out, Cascade/EDID, Signal Amplification for TV/ PS5/ Xbox/ Projector

UGREEN 40202 EU 1×4 HDMI Amplifier Splitter (Black) 4K@30Hz, 10.2Gbps, HDCP 1.4, 1-in-4-Out, Cascade/EDID, Signal Amplification for TV/ PS5/ Xbox/ Projector

1-in-4-Out HDMI Splitter for Multi-Display Setups

The UGREEN 40202 EU HDMI amplifier splitter distributes a single HDMI source to up to four displays simultaneously . Perfect for home theaters, conference rooms, classrooms, and retail displays. This device ensures that you can share content across multiple screens without signal loss or degradation.

4K@30Hz Ultra HD Resolution

Supports 4K x 2K @ 30Hz resolution and backward compatibility with 1080P@60Hz . Delivers crisp, vibrant visuals with deep color video up to 12-bit. Experience stunning clarity and detail on all connected displays.

High-Speed 10.2Gbps Bandwidth

Features 340MHz bandwidth with transfer speeds up to 10.2Gbps for seamless audio and video transmission . Supports DTS, DTS-HD, Dolby TrueHD, Dolby AC-3, and LPCM7.1 audio formats for an immersive audio experience.

HDCP Compliant & Signal Amplification

HDCP 1.4 compliant for secure content streaming . Built-in signal amplification ensures stable transmission over long cable runs up to 40 meters for 1080P . CEC-capable on Input/Output 1 for enhanced device control. The built-in signal amplifier prevents degradation even with extended cable lengths.

Universal Compatibility & Easy Setup

Compatible with DVD players, satellite receivers, cable boxes, gaming consoles (PS5, PS4, Xbox), PCs, laptops, and more . Plug-and-play with no drivers required. Durable aluminum alloy housing  with LED indicators for active ports .

Key Specifications

• Input: 1 x HDMI female port (Type A connector)
• Output: 4 x HDMI female ports
• Max Resolution: 4K x 2K @ 30Hz / 1080P @ 60Hz
• Bandwidth: 340MHz, 10.2Gbps
• HDCP: 1.4 compliant
• Audio Formats: DTS, DTS-HD, Dolby TrueHD, Dolby AC-3, LPCM7.1
• Video Formats: RGB 8/10/12 bit, YCbCr 4:4:4, YCbCr 4:2:2
• Operating Temp: 0°C to 40°C
• Power Supply: DC 5V/1A (included)
• Dimensions: 177 x 73 x 22 mm
• Material: Aluminum alloy

When searching for the Best HDMI Splitter in Pakistan, this UGREEN model delivers exceptional value. Shop from the Official UGREEN Store in Pakistan. For complete home theater solutions, explore the UGREEN 40202 EU 1×4 HDMI Amplifier Splitter and UGREEN 80133 USB C Hub 10-in-1 USB-C Docking Station.

Products Specifications

• Brand: UGREEN
• Model: 40202 / 40202EU
• Product Type: 1-in-4-Out HDMI Amplifier Splitter
• Color: Black
• Input Port: 1 x HDMI Female (Type A)
• Output Ports: 4 x HDMI Female (Type A)
• HDMI Version: HDMI 1.4
• Max Resolution: 4K x 2K @ 30Hz (3840 x 2160)
• Backward Compatibility: 1080P @ 60Hz
• Bandwidth: 340MHz
• Transfer Speed: Up to 10.2 Gbps
• HDCP: HDCP 1.4 Compliant
• Video Formats: RGB 8/10/12 bit, YCbCr 4:4:4, YCbCr 4:2:2
• Audio Formats: DTS, DTS-HD, Dolby TrueHD, Dolby AC-3, LPCM7.1
• Audio Sampling: Up to 192kHz, 24-bit
• Deep Color: Up to 12-bit
• 3D Support: Yes
• CEC: CEC-capable (Input/Output 1)
• Cascade/EDID: Yes
• Signal Amplification: Built-in
• Transmission Range: Up to 40m (1080P)
• Power Supply: DC 5V/1A (Included)
• Power Consumption: ~20mA (no load), ~190mA (full load)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 20% to 80% RH (non-condensing)
• Dimensions: 177 x 73 x 22 mm
• Material: Aluminum Alloy
• Warranty: 12 Months (1 Year) Original Product Warranty
• Key Features:
  • 1-in-4-out HDMI splitting capability
  • 4K@30Hz Ultra HD resolution
  • 10.2Gbps high-speed bandwidth
  • HDCP 1.4 compliant for secure streaming
  • Built-in signal amplification for long distances
  • CEC-capable on Input/Output 1
  • Supports DTS, Dolby TrueHD, LPCM7.1
  • Deep color video up to 12-bit
  • Plug and play, no drivers required
  • Durable aluminum alloy housing
  • LED indicators for active ports
• Compatibility List:
  • Gaming Consoles: PS5, PS4, PS3, Xbox Series X, Xbox One, Xbox 360, Nintendo Switch
  • Media Players: Blu-ray Players, DVD Players, Streaming Devices
  • Computers: PCs, Laptops, MacBooks
  • Displays: TVs, Monitors, Projectors
  • Other: Satellite Receivers, Cable Boxes, Set-Top-Boxes
• Important Notes:
  • HDMI 1.4 specification with 4K@30Hz support
  • 4K@60Hz not supported (use UGREEN 90514 for 4K@60Hz)
  • Includes DC 5V/1A power adapter
  • HDMI cables not included
  • Plug and play, no driver installation required
• Explore Related Products:
  • UGREEN 90514 HDMI Splitter 1 in 4 Out 4K@60Hz
  • UGREEN 55857 HDMI Switch 3 in 1 Out 4K@60Hz
  • UGREEN 40362 DisplayPort to HDMI Adapter
  • UGREEN 40873 9-IN-1 USB-C to Multifunction Adapter
  • UGREEN 40202 EU 1×4 HDMI Amplifier Splitter (Black)

What’s in the Box

• 1 x UGREEN 40202 EU 1×4 HDMI Amplifier Splitter
• 1 x DC 5V/1A Power Adapter
• 1 x User Manual
• 1 x Warranty Card (12 Months / 1 Year Coverage)
• Note: HDMI Cables Not Included

Frequently Asked Questions

Q1: Does the UGREEN 40202 HDMI splitter support 4K@60Hz?

A: No, this splitter supports 4K@30Hz resolution (3840 x 2160 @ 30Hz) . For 4K@60Hz, consider the UGREEN 90514 HDMI Splitter. For HDMI switches, explore the UGREEN 55857 HDMI Switch 3 in 1 Out 4K@60Hz.

Q2: How many displays can I connect to this splitter?

A: Yes, this splitter supports 1 input and 4 outputs simultaneously . You can connect up to four HDMI displays including TVs, monitors, and projectors.

Q3: What audio formats does this splitter support?

A: Yes, this splitter supports DTS, DTS-HD, Dolby TrueHD, Dolby AC-3, and LPCM7.1 audio formats . For HDMI splitters, check the UGREEN 90514 HDMI Splitter 1 in 4 Out 4K@60Hz.

Q4: Does this splitter require external power?

A: Yes, this splitter requires the included DC 5V/1A power adapter to operate . This ensures stable signal distribution across all four outputs.

Q5: Is this splitter HDCP compliant?

A: Yes, this splitter is HDCP 1.4 compliant for secure content streaming . For HDMI adapters, consider the UGREEN 40362 DisplayPort to HDMI Adapter.

Q6: What is the maximum cable length supported?

A: Yes, this splitter supports transmission up to 40 meters for 1080P resolution . For 4K@30Hz, we recommend using high-quality HDMI cables of reasonable length. For USB-C hubs, explore the UGREEN 40873 9-IN-1 USB-C to Multifunction Adapter.

Q7: What devices are compatible with this splitter?

A: Yes, this splitter is compatible with DVD players, satellite receivers, cable boxes, gaming consoles (PS5, PS4, Xbox), PCs, laptops, and more .

Q8: Does this splitter support 3D content?

A: Yes, this splitter supports 3D video content . For HDMI splitters, explore the UGREEN 90514 HDMI Splitter 1 in 4 Out 4K@60Hz.

Q9: What is the build quality of this splitter?

A: Yes, this splitter features a durable aluminum alloy housing for efficient heat dissipation and long-term reliability . For HDMI adapters, consider the UGREEN 40362 DisplayPort to HDMI Adapter.

Q10: What is the warranty period for the UGREEN 40202?

A: UGREEN provides a 12 Months (1 Year) original product warranty for the 40202 HDMI Splitter purchased from authorized distributors in Pakistan . The warranty covers manufacturing defects. As the UGREEN Official Distributor in Pakistan, we provide comprehensive after-sales support. The UGREEN PK Official Store in Pakistan ensures you receive authentic products with complete warranty coverage.
