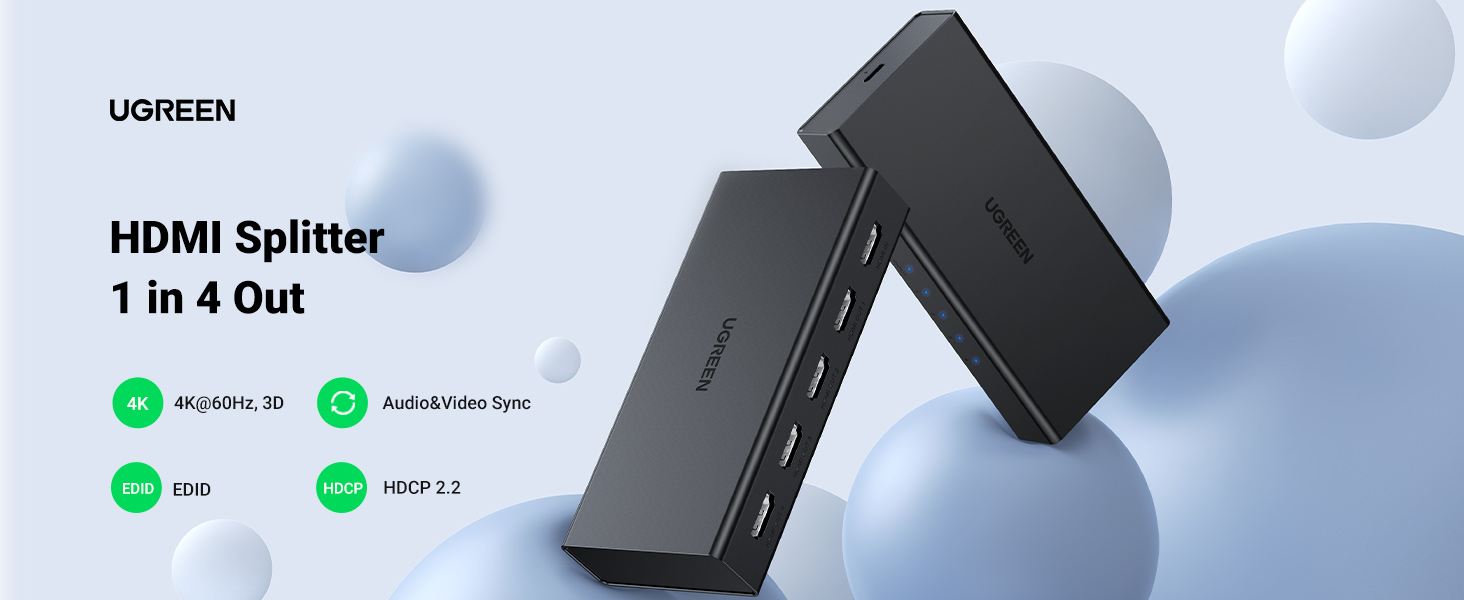

UGREEN 90514 HDMI Splitter 1 in 4 Out 4K@60Hz HDMI 2.0 Splitter 18 Gbps 1×4 Only Mirror Screen Support EDID HDCP 2.2/1.4 3D HDR Compatible with Apple TV Blu-Ray Monitor Xbox PS5/4 Switch Projector

1-in-4-Out HDMI Splitter for Multi-Display Setups

The UGREEN 90514 HDMI splitter duplicates 1 HDMI input signal to 4 different HDMI displays simultaneously . Perfect for home theaters, conference rooms, classrooms, and gaming setups. This device ensures that you can share content across multiple screens without signal loss or degradation.

4K@60Hz Ultra HD Resolution

Supports the latest 4K@60Hz resolution and is backward compatible with 4K@30Hz and 1920*1080@120Hz . Delivers vivid images with HDMI 2.0, HDCP 2.2/1.4, 3D, and HDR support . Experience stunning clarity and smooth motion on all connected displays.

High-Speed 18Gbps Bandwidth

Features 18Gbps data transmission for stable video and audio performance . Supports DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby AC-3, DSD, and 192KHz/24bit HBR Audio for an immersive audio experience.

EDID Control & Stable Transmission

EDID control eliminates black screen and flickering . USB powered design ensures stable video transmission. CEC supported on HDMI output 1 . The built-in signal amplifier ensures stable transmission even with extended cable lengths.

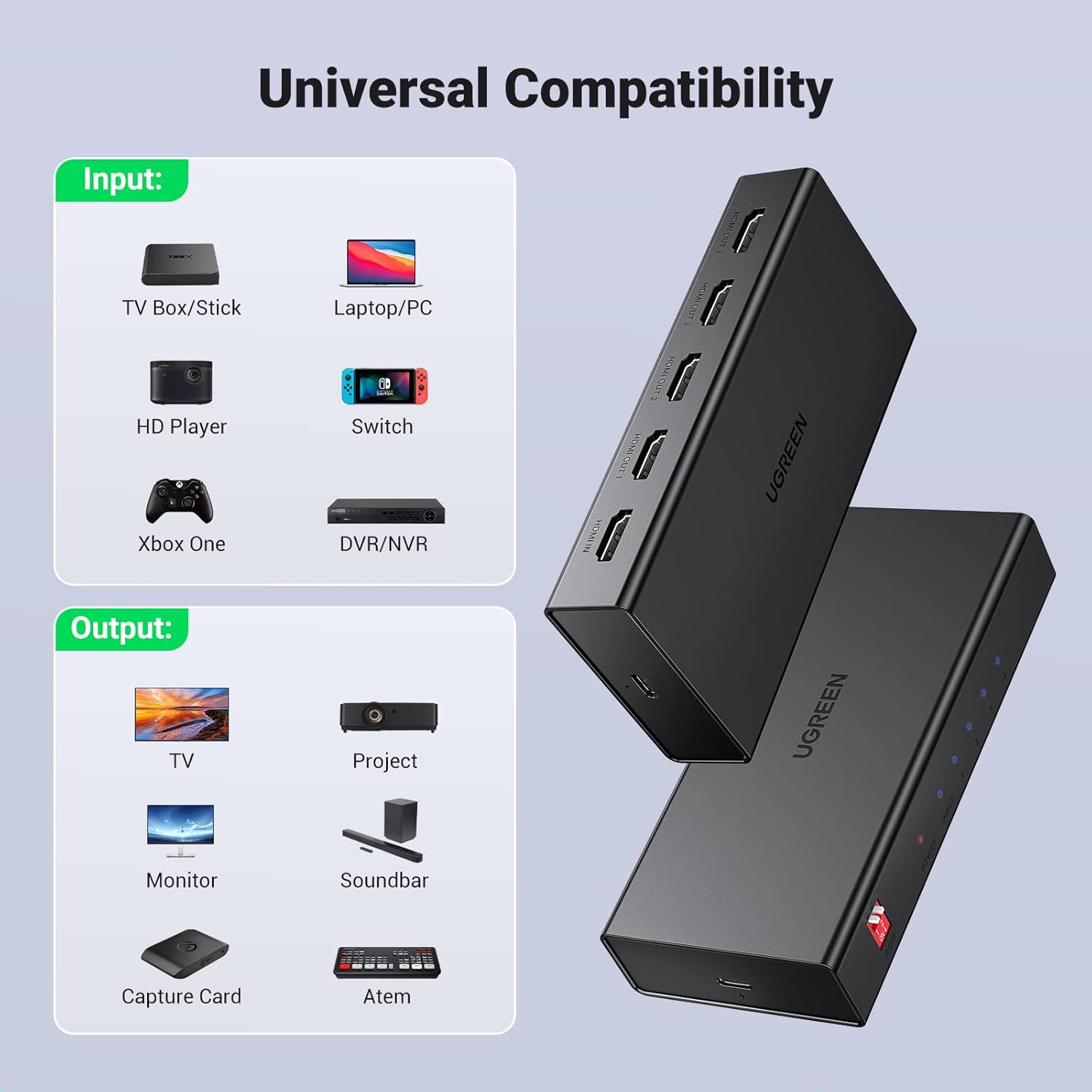

Universal Compatibility & Easy Setup

Compatible with Blu-ray Players, DVD Players, Xbox 360, PS3, PS4, PS5, Nintendo Switch, Apple TV, Fire TV Stick, Roku Stick, PC, Laptop, HDTV, HD Monitor, and Projector . Plug and play, no drivers required. Durable construction with LED indicators for active ports.

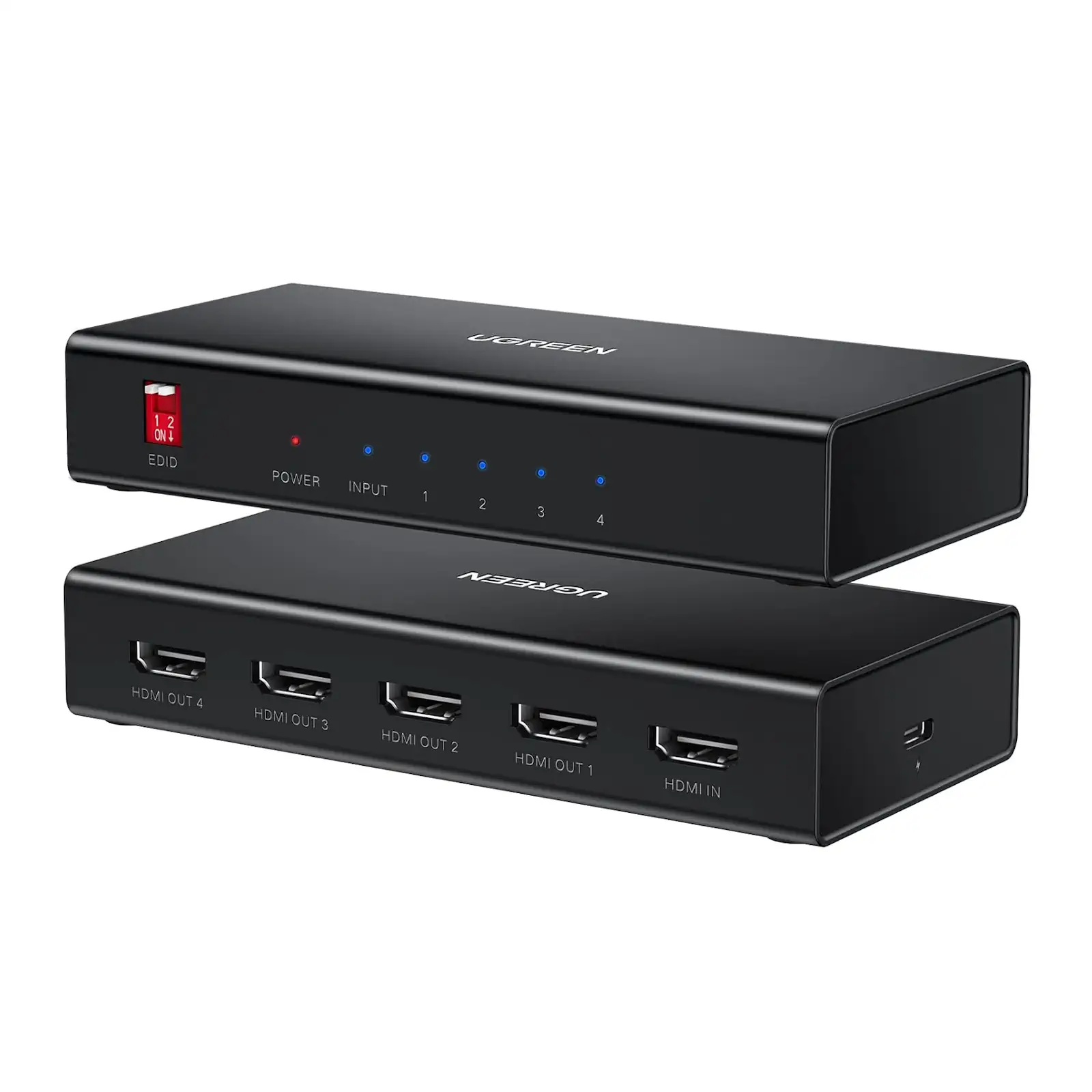

Key Specifications

• Input: 1 x HDMI
• Output: 4 x HDMI
• Max Resolution: 4K @ 60Hz
• Bandwidth: 18 Gbps
• HDCP: 2.2/1.4
• Audio Formats: DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby AC-3, DSD, 192KHz/24bit
• Features: CEC (output 1), EDID, 3D, HDR
• Power: USB Powered (5V/1A)
• Material: Aluminum alloy

When searching for the Best HDMI Splitter in Pakistan, this UGREEN model delivers exceptional value. Shop from the Official UGREEN Store in Pakistan. For complete home theater solutions, explore the UGREEN 40202 EU 1×4 HDMI Amplifier Splitter (Black) and UGREEN 80133 USB C Hub 10-in-1 USB-C Docking Station.

Products Specifications

• Brand: UGREEN
• Model: 90514
• Product Type: 1-in-4-Out HDMI Splitter (Mirror Only)
• Color: Black
• Input Port: 1 x HDMI Female
• Output Ports: 4 x HDMI Female
• HDMI Version: HDMI 2.0
• Max Resolution: 4K @ 60Hz (3840 x 2160)
• Backward Compatibility: 4K@30Hz, 1920×1080@120Hz, 1080P@60Hz
• Bandwidth: 18 Gbps
• HDCP: HDCP 2.2/1.4
• Video Formats: RGB 8/10/12 bpc, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Audio Formats: DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby AC-3, DSD, 192KHz/24bit, HBR Audio
• Features: CEC (HDMI Out 1), EDID Control, 3D, HDR

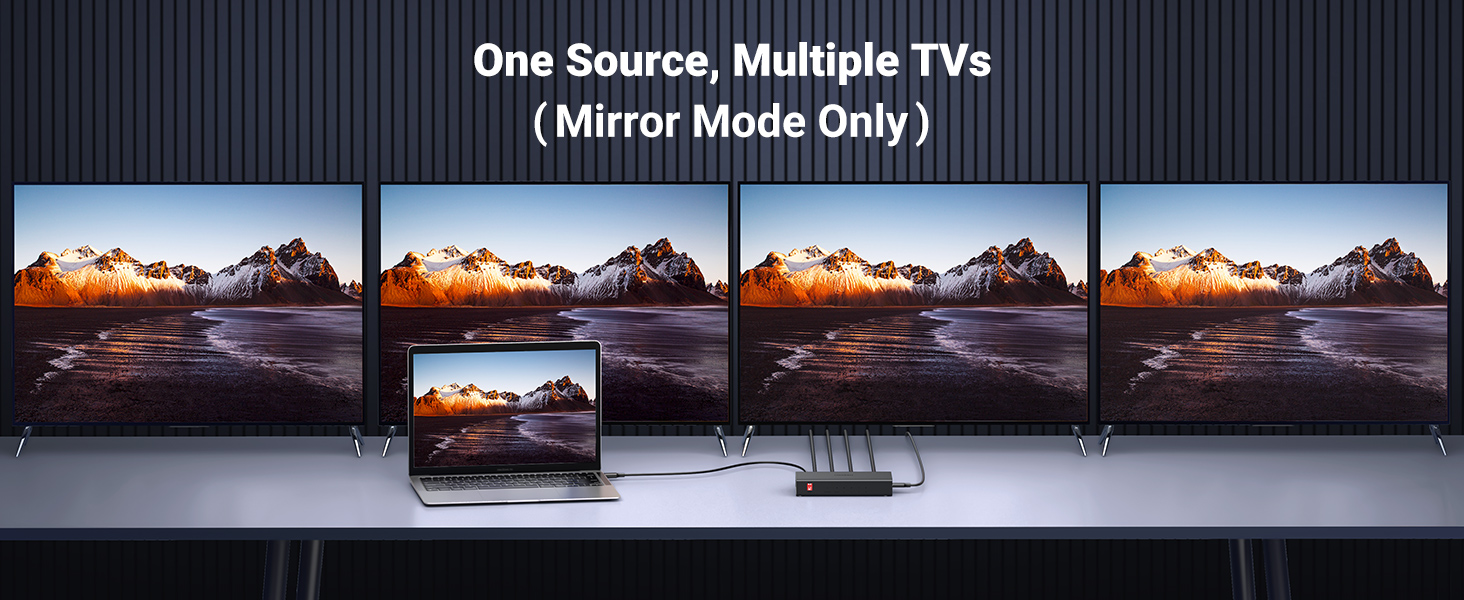

• Signal Type: Mirror Only (All displays show identical content)
• Power Supply: USB Powered (DC 5V/1A)
• Material: Aluminum Alloy
• Warranty: 12 Months (1 Year) Original Product Warranty
• Key Features:
  • 1-in-4-out HDMI splitting capability
  • 4K@60Hz Ultra HD resolution
  • 18Gbps high-speed bandwidth
  • HDCP 2.2/1.4 compliant
  • EDID control for stable display
  • CEC support on output 1
  • Supports DTS-HD, Dolby TrueHD, LPCM7.1
  • HDR and 3D support
  • Mirror only mode (all displays identical)
  • USB powered design
  • Plug and play, no drivers required
• Compatibility List:
  • Gaming Consoles: PS5, PS4, PS3, Xbox Series X, Xbox One, Xbox 360, Nintendo Switch
  • Media Players: Blu-ray Players, DVD Players, Apple TV, Fire TV Stick, Roku Stick
  • Computers: PCs, Laptops
  • Displays: HDTVs, HD Monitors, Projectors
  • Other: Receivers, Set-Top-Boxes
• Important Notes:

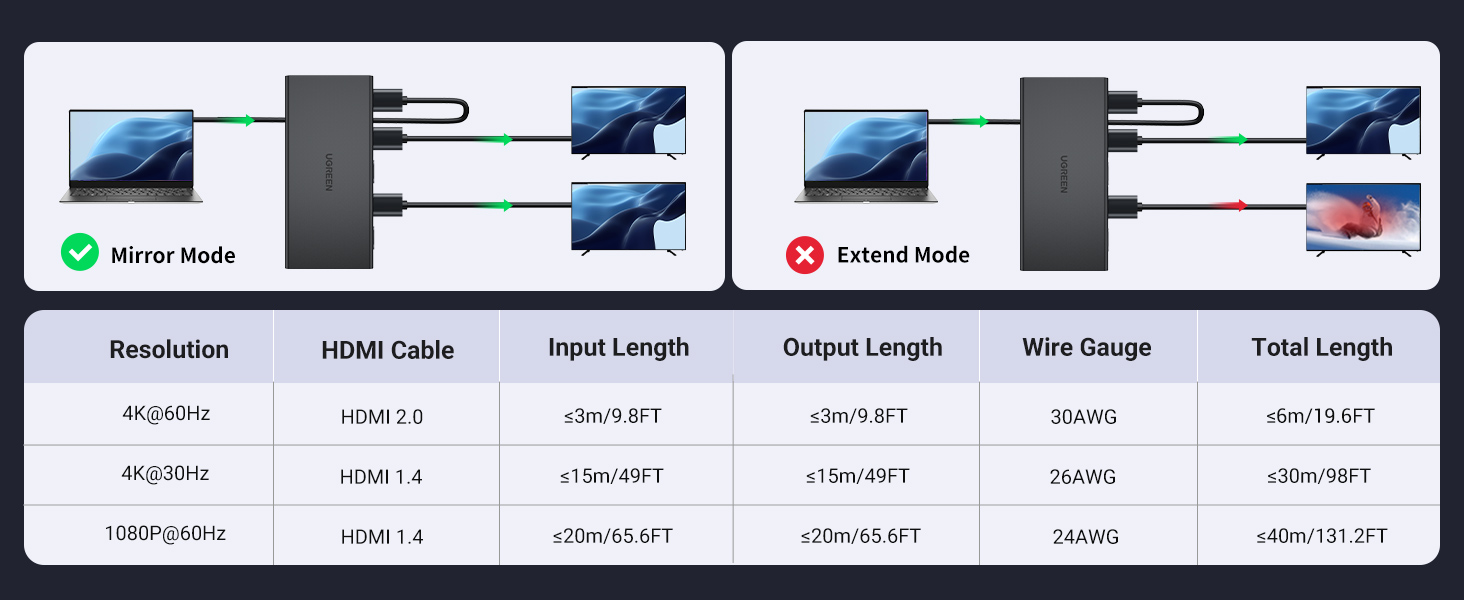

  • Mirror Only: All displays show identical content (not extended desktop)
  • Supports 4K@60Hz resolution
  • USB powered (5V/1A) – connect to USB port

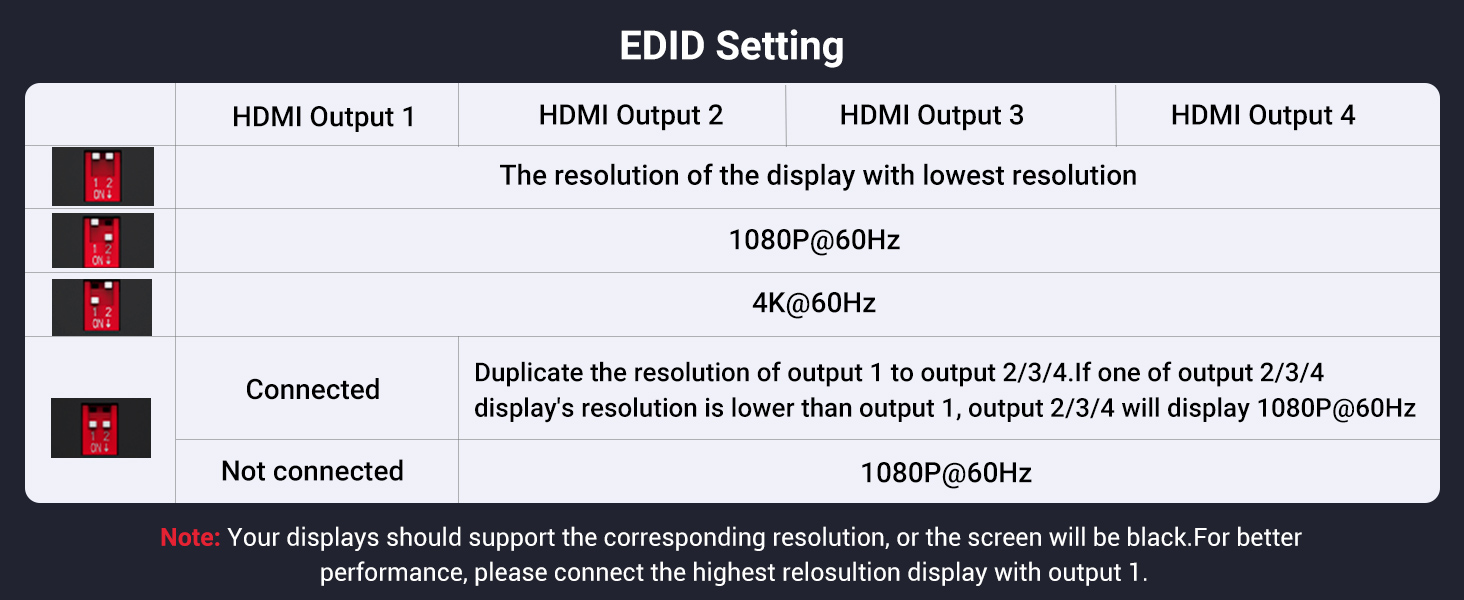

  • EDID Control: Select proper EDID setting for displays
  • HDMI cables not included
• Explore Related Products:
  • UGREEN 40202 EU 1×4 HDMI Amplifier Splitter (Black)
  • UGREEN 55857 HDMI Switch 3 in 1 Out 4K@60Hz
  • UGREEN 40362 DisplayPort to HDMI Adapter
  • UGREEN 40873 9-IN-1 USB-C to Multifunction Adapter
  • UGREEN 80133 USB C Hub 10-in-1 USB-C Docking Station

What’s in the Box

• 1 x UGREEN 90514 HDMI Splitter 1 in 4 Out
• 1 x USB Power Cable
• 1 x User Manual
• 1 x Warranty Card (12 Months / 1 Year Coverage)
• Note: HDMI Cables and Power Adapter Not Included

Frequently Asked Questions

Q1: Does the UGREEN 90514 HDMI splitter support 4K@60Hz?

A: Yes, this HDMI splitter supports 4K@60Hz resolution with 18Gbps bandwidth and HDMI 2.0 technology . For HDMI switches, explore the UGREEN 55857 HDMI Switch 3 in 1 Out 4K@60Hz.

Q2: Can I display different content on each screen?

A: No, this splitter is Mirror Only. All connected displays will show identical content . For extended desktop, you need a different device. For HDMI splitters, check the UGREEN 90514 HDMI Splitter 1 in 4 Out 4K@60Hz.

Q3: What audio formats does this splitter support?

A: Yes, this splitter supports DTS-HD, Dolby TrueHD, LPCM7.1, DTS, Dolby AC-3, DSD, and 192KHz/24bit HBR Audio . For HDMI adapters, consider the UGREEN 40362 DisplayPort to HDMI Adapter.

Q4: Does this splitter require external power?

A: Yes, this splitter requires USB power (DC 5V/1A). A USB power cable is included, but the power adapter is not . Keep it connected to a power source when using. For USB-C hubs, explore the UGREEN 40873 9-IN-1 USB-C to Multifunction Adapter.

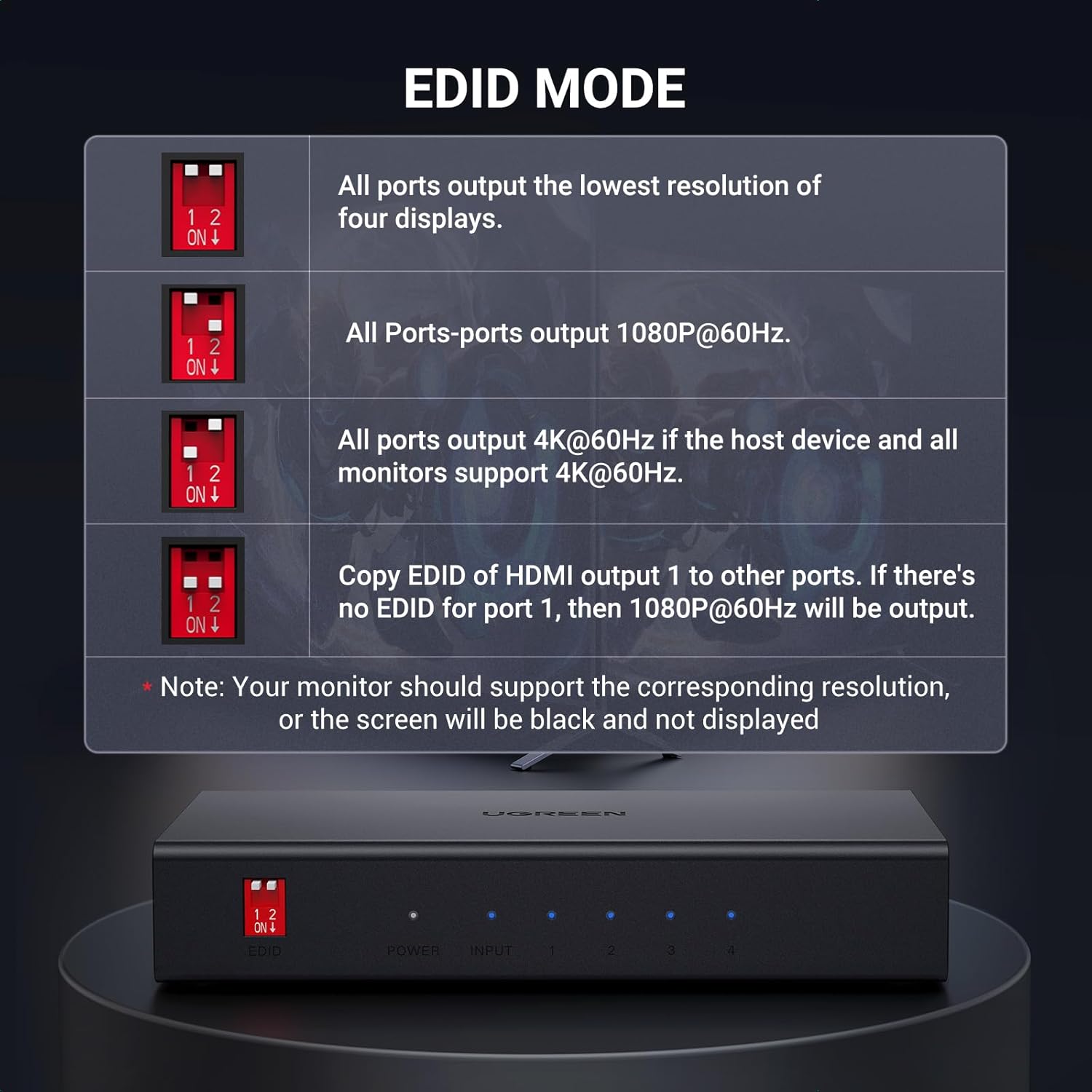

Q5: What is EDID control and why is it important?

A: EDID control eliminates black screen and flickering issues . You can choose the proper EDID setting for your displays to get a better experience. For docking stations, explore the UGREEN 80133 USB C Hub 10-in-1 USB-C Docking Station.

Q6: Is this splitter HDCP compliant?

A: Yes, this splitter supports HDCP 2.2/1.4 for secure content streaming . For HDMI splitters, explore the UGREEN 90514 HDMI Splitter 1 in 4 Out 4K@60Hz.

Q7: What devices are compatible with this splitter?

A: Yes, this splitter is compatible with Blu-ray Players, DVD Players, Xbox 360, PS3, PS4, PS5, Nintendo Switch, Apple TV, Fire TV Stick, Roku Stick, PC, Laptop, HDTV, HD Monitor, and Projector . For HDMI adapters, consider the UGREEN 40362 DisplayPort to HDMI Adapter.

Q8: Does this splitter support HDR and 3D?

A: Yes, this splitter supports HDR and 3D for an immersive viewing experience . For HDMI splitters, explore the UGREEN 90514 HDMI Splitter 1 in 4 Out 4K@60Hz.

Q9: What is CEC and does this splitter support it?

A: Yes, this splitter supports CEC (Consumer Electronics Control) on HDMI output 1, allowing you to control multiple devices with a single remote . For HDMI adapters, consider the UGREEN 40362 DisplayPort to HDMI Adapter.

Q10: What is the warranty period for the UGREEN 90514?

A: UGREEN provides a 12 Months (1 Year) original product warranty for the 90514 HDMI Splitter purchased from authorized distributors in Pakistan . The warranty covers manufacturing defects. As the UGREEN Official Distributor in Pakistan, we provide comprehensive after-sales support. The UGREEN PK Official Store in Pakistan ensures you receive authentic products with complete warranty coverage.
