UGREEN 80125 HDMI Switch 3 in 1 Out 4K@30Hz with Remote Control, Manual Button, Supports PS5, Xbox, Nintendo Switch, Fire Stick, Laptop to TV/Monitor

UGREEN 80125 HDMI Switch 3 in 1 Out 4K@30Hz with Remote Control, Manual Button, Supports PS5, Xbox, Nintendo Switch, Fire Stick, Laptop to TV/Monitor

Are you tired of constantly crawling behind your TV to switch HDMI cables between your game console, streaming stick, and laptop? The UGREEN 3-in-1 HDMI Switch offers the perfect, hassle-free solution to manage all your HD devices with the click of a button. It’s part of our mission to simplify your tech life, which you can see across all our products on the UGREEN Pakistan homepage.

Expand Your TV’s Capabilities Instantly

First and foremost, this compact switch box instantly multiplies your display’s single HDMI port into three. Simply connect your PlayStation, Xbox, and laptop simultaneously. Consequently, you can jump from gaming to streaming to work presentations without ever touching the back of your TV. It’s the ultimate tool for an organized entertainment center, just like our other HDMI switches and converters.

Crystal-Clear Viewing Experience

Moreover, it delivers a high-quality viewing experience. Supporting resolutions up to 4K Ultra HD at 30Hz and 1080p at 120Hz, it ensures sharp, vibrant images and smooth motion for both movies and fast-paced games. However, please note that for best results, use a high-speed UGREEN HDMI 2.0 cable under 26 feet and set your TV’s HDCP mode to 1.4 for 4K content.

Designed for Effortless Control

The standout feature is the dual control method. Use the handy included IR remote to switch inputs from across the room, or press the tactile button on the device itself. The clear blue LED indicator shows you which device is active at a glance. Finally, its broad compatibility and plug-and-play design make setup a breeze for everyone. Check out more gaming and TV accessories to complete your setup.

Products Specifications:

• Model: UGREEN HDMI Switch 80125
• Interface: 3 x HDMI Input, 1 x HDMI Output
• Maximum Resolution: 4K Ultra HD (3840×2160) @ 30Hz
• Supported Resolutions: 4K@30Hz, 2K@60Hz, 1080p@120Hz, 1080p@60Hz, 720p, 480p
• Control Method: Manual Push Button & Infrared Remote Control
• HDCP Version: HDCP 1.4
• HDMI Standard: HDMI 1.4
• Power Supply: Micro USB Port (5V/1A – Cable Included, Adapter NOT Included)
• Indicator: Blue LED Port Indicator
• Remote Control Range: Up to 5 meters (15 ft) – Infrared, requires line-of-sight

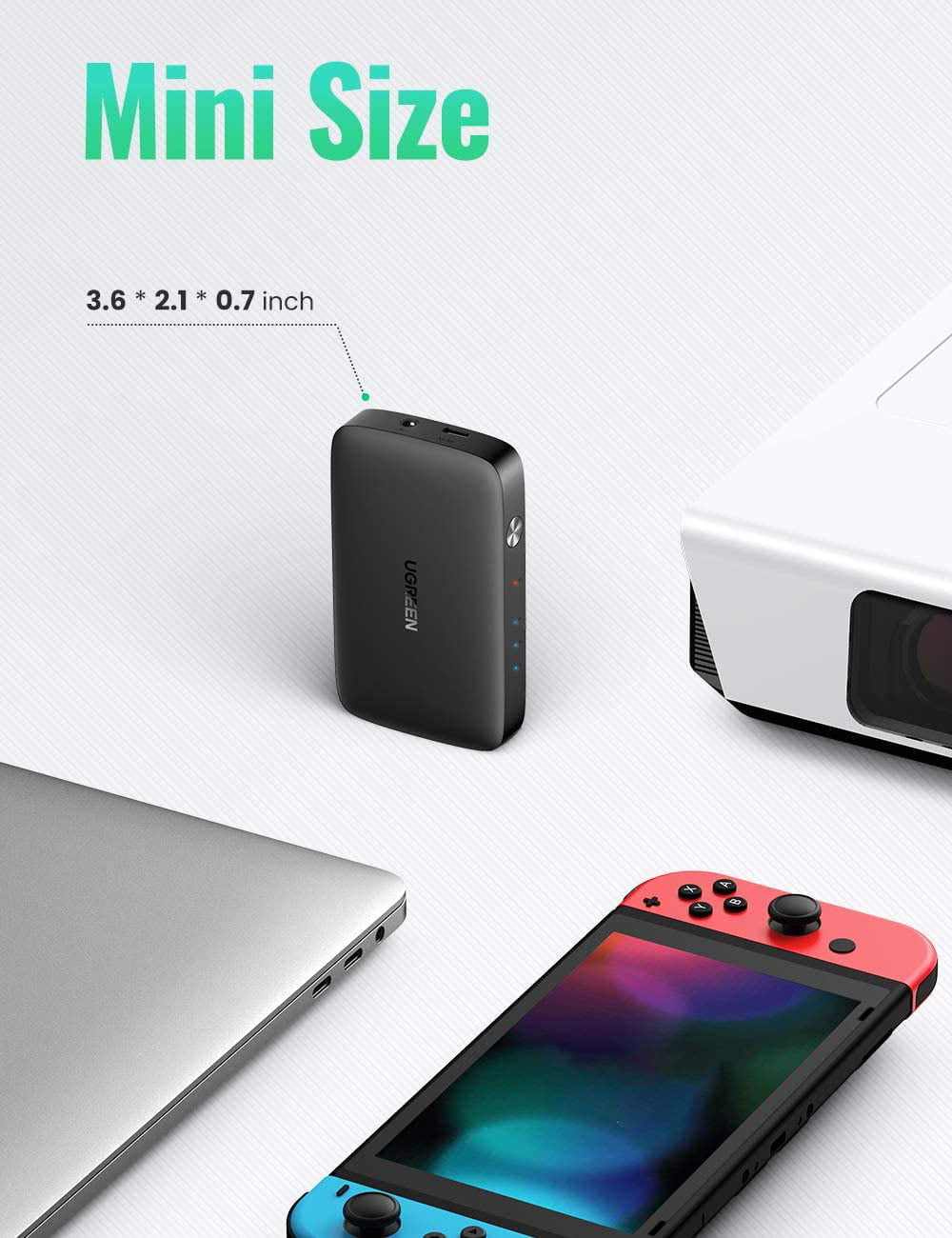

• Dimensions: 92 x 54 x 18 mm (3.6” x 2.1” x 0.7”)
• Compatibility: PS5, PS4, Xbox Series X/S, Xbox One, Nintendo Switch, Laptop, PC, Fire TV Stick, Roku, Blu-ray/DVD Players, Projectors, Monitors

What’s in the Box?

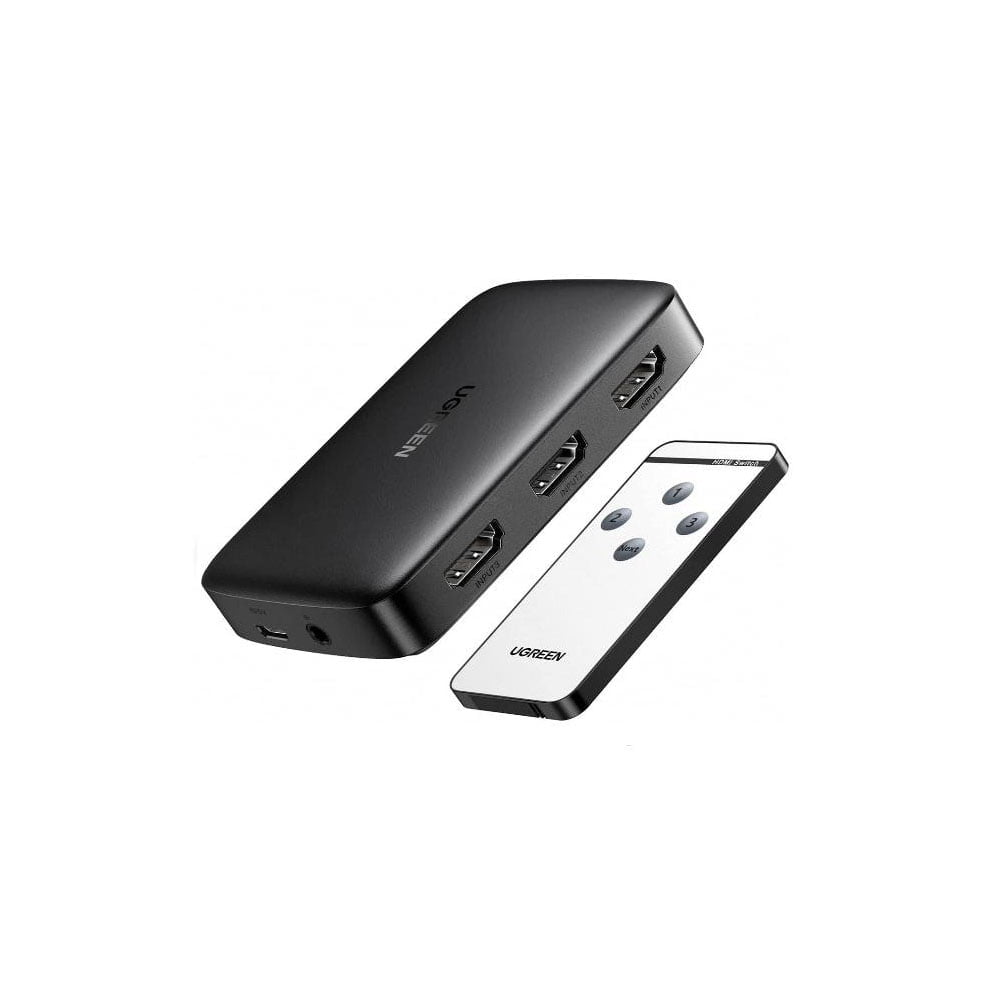

• 1 x UGREEN 3-in-1 Out HDMI Switch Box
• 1 x Infrared Remote Control
• 1 x Micro USB Power Cable
• 1 x User Manual

10 FAQs:

1. Does this switch support 4K 60Hz for the PS5 or Xbox Series X?
No, it does not. This switch supports a maximum of 4K resolution at 30Hz. For 4K@60Hz, you would need an HDMI 2.0 switch from our converter collection. Therefore, for the best 4K gaming, set the console to 4K@30Hz.

2. Does it work automatically, or do I need to switch manually?
It does not switch automatically. You must select the active input either by pressing the button on the box or by using the included IR remote control.

3. Why is there a Micro USB port, and do I need to use it?
The Micro USB port is for external power. While basic setups may work without it, for stable performance—especially with power-hungry devices like game consoles—it is strongly recommended to connect the provided Micro USB cable to a 5V USB adapter. You can find one on our chargers page.

4. Is the remote control easy to use?
Yes, it is very straightforward. However, the remote uses Infrared (IR) technology, so you must point it directly at the switch’s IR receiver on the front without any obstructions for it to work reliably.

5. Will this work with my older DVD player and new TV?
Yes, absolutely. It is backward compatible with older HDMI devices and standards, supporting resolutions all the way down to 480p, making it versatile for both new and old equipment.

6. Can I use it to connect one device to three TVs?
No, you cannot. This is a switcher (3 in, 1 out), not a splitter. It takes signals from 3 source devices and sends one at a time to 1 display. To send one signal to multiple TVs, you would need an HDMI splitter, which you can also browse here.

7. My 4K signal seems unstable. What should I do?
First, ensure you are using the external Micro USB power supply. Then, check your HDMI cables; they should be high-speed and shorter than 8 meters (26 ft). We recommend using our certified HDMI cables. Finally, verify your TV/device settings.

8. Does it support HDR or Dolby Audio?
No, it does not. As an HDMI 1.4 device, it does not support advanced features like HDR, Dolby Atmos, or DTS:X. It transmits standard high-definition video and audio (like LPCM).

9. Can I use it with a gaming monitor for my PC and console?
Yes, perfectly. It is an excellent solution for a gaming monitor with only one HDMI port, allowing you to switch between a PC and a game console easily. Perfect for our gaming community customers.

10. What is the warranty for this product in Pakistan?
Genuine UGREEN products in Pakistan, including this HDMI switch, typically come with an 12-month warranty. Keep your purchase invoice for any warranty claims. Visit our official support page for assistance or see our full warranty policy.
