Synology Plus Series for Home and Small Office Systems
Reliable Drives for Home and Small Office Systems
Synology Plus Series SATA HDDs are designed to meet the reliability, endurance, and performance requirements of 24/7 storage in Synology small and medium-sized business storage systems. Stringent validation testing and NAS-class reliability ensure consistent performance in high-uptime and multi-user environments.
Engineered for Endurance
Synology Plus Series HDDs are backed by up to a 1.2 million-hour mean time between failure (MTBF) and a 180 TB per year workload rating, up to three times the limit of conventional desktop hard drives. Over 500,000 hours of compatibility and stress testing ensure smooth operation even under multi-user workloads. This makes them ideal for demanding NAS environments.
Seamless Firmware Updates
Users are automatically notified when firmware updates become available for Synology Plus Series HDDs. Drives can be updated seamlessly from DiskStation Manager (DSM) on your Synology storage system, eliminating the need for third-party tools and disk removal for firmware updates. This ensures your drives always have the latest performance and reliability improvements.

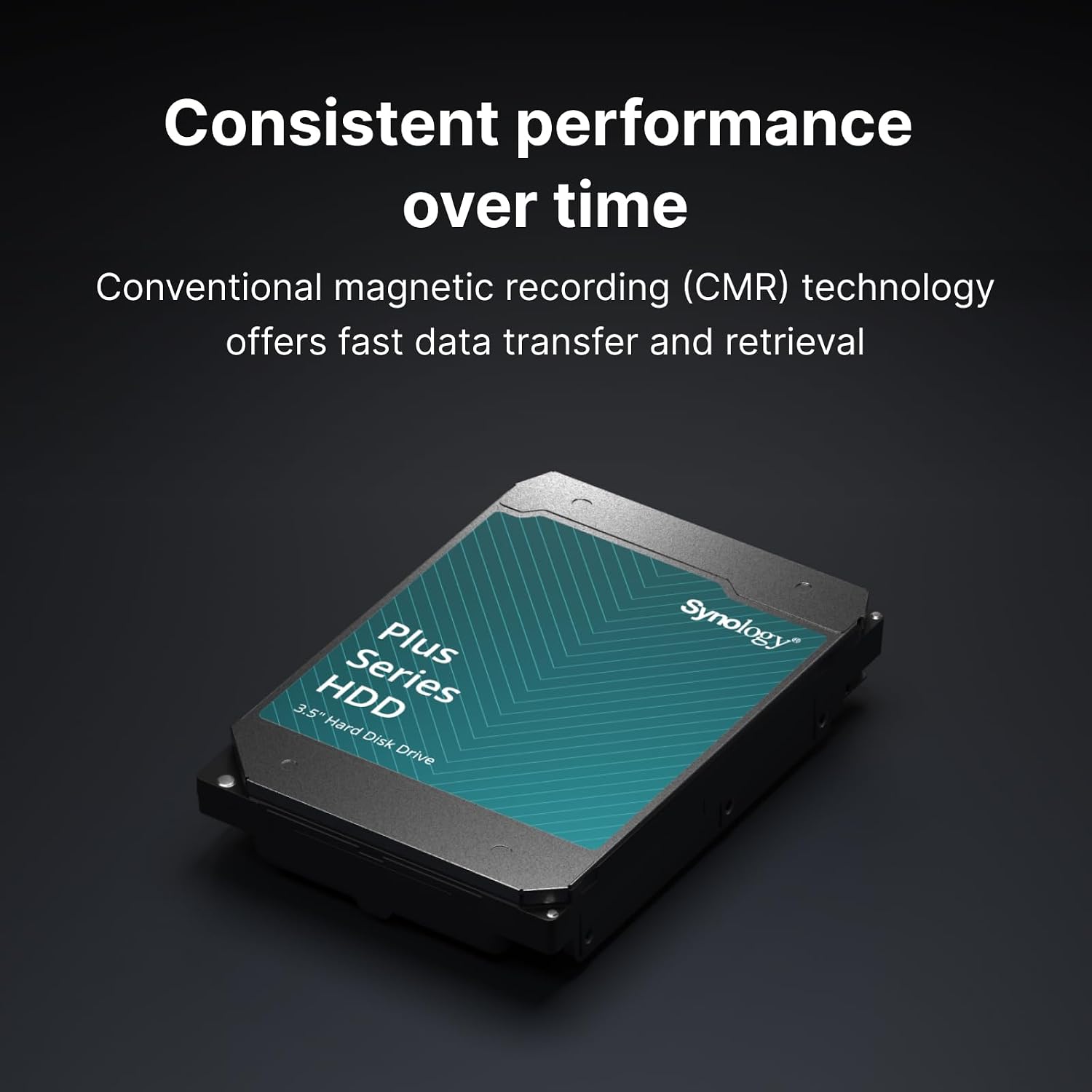

Reliable Recording Technology
Conventional magnetic recording (CMR) technology offers consistent performance, making these drives perfect for NAS environments where predictable performance is critical. Unlike SMR drives, CMR technology ensures sustained write performance without degradation.
📋 Products Specifications
💾
Capacity Models
7 Models
| Model | Capacity | Drive Design | Rotational Speed |
|---|---|---|---|
| HAT3300-2T | 2 TB | Air | 5,400 rpm |
| HAT3300-4T | 4 TB | Air | 5,400 rpm |
| HAT3300-6T | 6 TB | Air | 5,400 rpm |
| HAT3320-8T | 8 TB | Helium-sealed | 7,200 rpm |
| HAT3310-12T | 12 TB | Helium-sealed | 7,200 rpm |
| HAT3310-16T | 16 TB | Helium-sealed | 7,200 rpm |
| HAT3320-20T | 20 TB | Helium-sealed | 7,200 rpm |
⚙️
General Specifications
Synology
Plus Series
3.5″ SATA HDD
SATA 6 Gb/s
512e
NAS / 24/7 Operation
CMR
3 Years
📊
Performance Specifications
| Model | Cache | Max Sustained | MTBF | Workload Rating |
|---|---|---|---|---|
| HAT3300-2T | 256 MB | 202 MB/s | 1,000,000 hrs | 180 TB/yr |
| HAT3300-4T | 256 MB | 202 MB/s | 1,000,000 hrs | 180 TB/yr |
| HAT3300-6T | 256 MB | 202 MB/s | 1,000,000 hrs | 180 TB/yr |
| HAT3320-8T | 512 MB | 281 MB/s | 1,200,000 hrs | 180 TB/yr |
| HAT3310-12T | 512 MB | 295 MB/s | 1,200,000 hrs | 180 TB/yr |
| HAT3310-16T | 512 MB | 295 MB/s | 1,200,000 hrs | 180 TB/yr |
| HAT3320-20T | 1 GB | 295 MB/s | 1,200,000 hrs | 300 TB/yr |
🔋
Power Consumption
| Model | Idle Power | Operating Power |
|---|---|---|
| HAT3300-2T | 3.96 W | 4.85 W |
| HAT3300-4T | 3.40 W | 5.30 W |
| HAT3300-6T | 5.74 W | 9.07 W |
| HAT3320-8T | 3.30 W | 6.85 W |
| HAT3310-12T | 4.14 W | 7.48 W |
| HAT3310-16T | 4.14 W | 7.48 W |
| HAT3320-20T | 4.35 W | 7.62 W |
🌍
Environmental Specifications
0°C to 65°C (32°F to 149°F)
-40°C to 70°C (-40°F to 158°F)
5% to 90% R.H. (No condensation)
5% to 95% R.H. (No condensation)
-304.8 m to 3,048 m
-304.8 m to 12,192 m
💥
Shock and Vibration
| Model | Operating Shock | Non-Operating Shock |
|---|---|---|
| HAT3300-2T / 4T / 6T | 785 m/s² (2 ms) | 2,943 m/s² (2 ms) |
| HAT3320-8T | 686 m/s² (2 ms) | 2,450 m/s² (2 ms) |
| HAT3310-12T / 16T / 20T | 490 m/s² (2 ms) | 1,960 m/s² (2 ms) |
🔇
Acoustics
| Model | Idle (typical) | Seek (typical) |
|---|---|---|
| HAT3300-2T / 4T | 23 dB | 27 dB |
| HAT3300-6T | 27 dB | 28 dB |
| HAT3320-8T | 34 dB | 35 dB |
| HAT3310-12T / 16T / 20T | 20 dB | 32 dB |
📐
Physical Specifications
| Model | Size (H × W × D) | Weight |
|---|---|---|
| HAT3300-2T / 4T | 20.20 × 101.85 × 147 mm | 490 g |
| HAT3300-6T | 26.10 × 101.85 × 147 mm | 610 g |
| HAT3320-8T | 26.10 × 101.85 × 147 mm | 755 g |
| HAT3310-12T / 16T | 26.10 × 101.85 × 147 mm | 720 g |
| HAT3320-20T | 26.10 × 101.85 × 147 mm | 720 g |
🏅
Certifications
RCM
BSMI
KC
UKCA
UL
TUV
ICES
RoHS
Explore Related Products:
- UGREEN 60737 USB 3.0 to SATA Dual-Bay HDD Docking Station
- UGREEN 30848 2.5-Inch HDD Enclosure USB 3.0
- UGREEN 90264 M.2 NVMe Hard Drive Enclosure
- UGREEN 50985 Ultra Slim 4 Port USB 3.0 Hub
- UGREEN 60468 36W USB-C Wall Charger
What’s in the Box
- 1 x Synology HAT3300 Plus Series SATA HDD (Selected Capacity)
- 1 x Quick Installation Guide
Frequently Asked Questions
Q1: What is the MTBF of Synology HAT3300 Plus Series HDDs?
A: Yes, the Synology HAT3300 Plus Series HDDs have an MTBF of up to 1.2 million hours (for 8TB, 12TB, 16TB, and 20TB models) and 1.0 million hours (for 4TB and 6TB models). This ensures exceptional reliability for 24/7 NAS operation. For additional storage expansion, consider the UGREEN 60737 USB 3.0 to SATA Dual-Bay HDD Docking Station.
Q2: What is the workload rating for these drives?
A: Yes, the Synology HAT3300 Plus Series HDDs have a workload rating of 180 TB/year, which is up to three times the limit of conventional desktop hard drives. This makes them ideal for demanding NAS environments with constant data access. For backup drives, consider the UGREEN 30849 USB 3.0 External HDD Enclosure.
Q3: What is the warranty period for these drives?
A: Yes, the Synology HAT3300 Plus Series HDDs come with a 3-year warranty. The warranty period starts from the purchase date as stated on your purchase receipt. For photo backup, check the UGREEN 40752 USB 3.0 SD Card Reader.
Q4: What capacities are available?
A: Yes, the Synology HAT3300 Plus Series is available in six capacities: 4TB (HAT3300-4T), 6TB (HAT3300-6T), 8TB (HAT3320-8T), 12TB (HAT3310-12T), 16TB (HAT3310-16T), and 20TB (HAT3320-20T). For USB expansion, check the UGREEN 20805 USB 3.0 Hub 4 Ports.
Q5: What is the rotational speed of these drives?
A: Yes, the Synology HAT3300 Plus Series drives have rotational speeds of 5,400 rpm (4TB and 6TB models) and 7,200 rpm (8TB, 12TB, 16TB, and 20TB models). Higher rotational speeds provide faster data access for demanding applications. For power accessories, explore the UGREEN 60468 36W USB-C Wall Charger.
Q6: How do I update firmware on these drives?
A: Yes, firmware updates can be performed directly in Synology DiskStation Manager (DSM). Users are automatically notified when firmware updates become available and can update drives seamlessly without removing them from the system. For additional storage, check the UGREEN 90264 M.2 NVMe Hard Drive Enclosure.
Q7: Are these drives CMR or SMR?
A: Yes, the Synology HAT3300 Plus Series drives use Conventional Magnetic Recording (CMR) technology, which offers consistent performance for NAS environments. Unlike SMR drives, CMR ensures sustained write performance without degradation. For USB hub expansion, check the UGREEN 50985 Ultra Slim 4 Port USB 3.0 Hub.
Q8: What is the maximum sustained data transfer speed?
A: Yes, the maximum sustained data transfer speed varies by model: 202 MB/s (4TB and 6TB), 281 MB/s (8TB), and 295 MB/s (12TB, 16TB, and 20TB). These speeds ensure fast data access for all your applications. For desktop organization, explore the UGREEN 80708 Adjustable Aluminum Phone Holder.
Q9: What are the operating temperature requirements?
A: Yes, the operating temperature range is 0°C to 65°C (32°F to 149°F). Non-operating temperature range is -40°C to 70°C (-40°F to 158°F). This ensures reliable operation in various environments. For additional protection, consider the UGREEN 40705 Cable Protector USB Cable Saver.
Q10: Are these drives compatible with all Synology NAS systems?
A: Yes, the Synology HAT3300 Plus Series drives are specifically designed for Synology storage systems. They are certified for compatibility and can be seamlessly managed through DSM. Check Synology’s compatibility list for specific model compatibility. For additional protection, consider the UGREEN 40705 Cable Protector USB Cable Saver.
