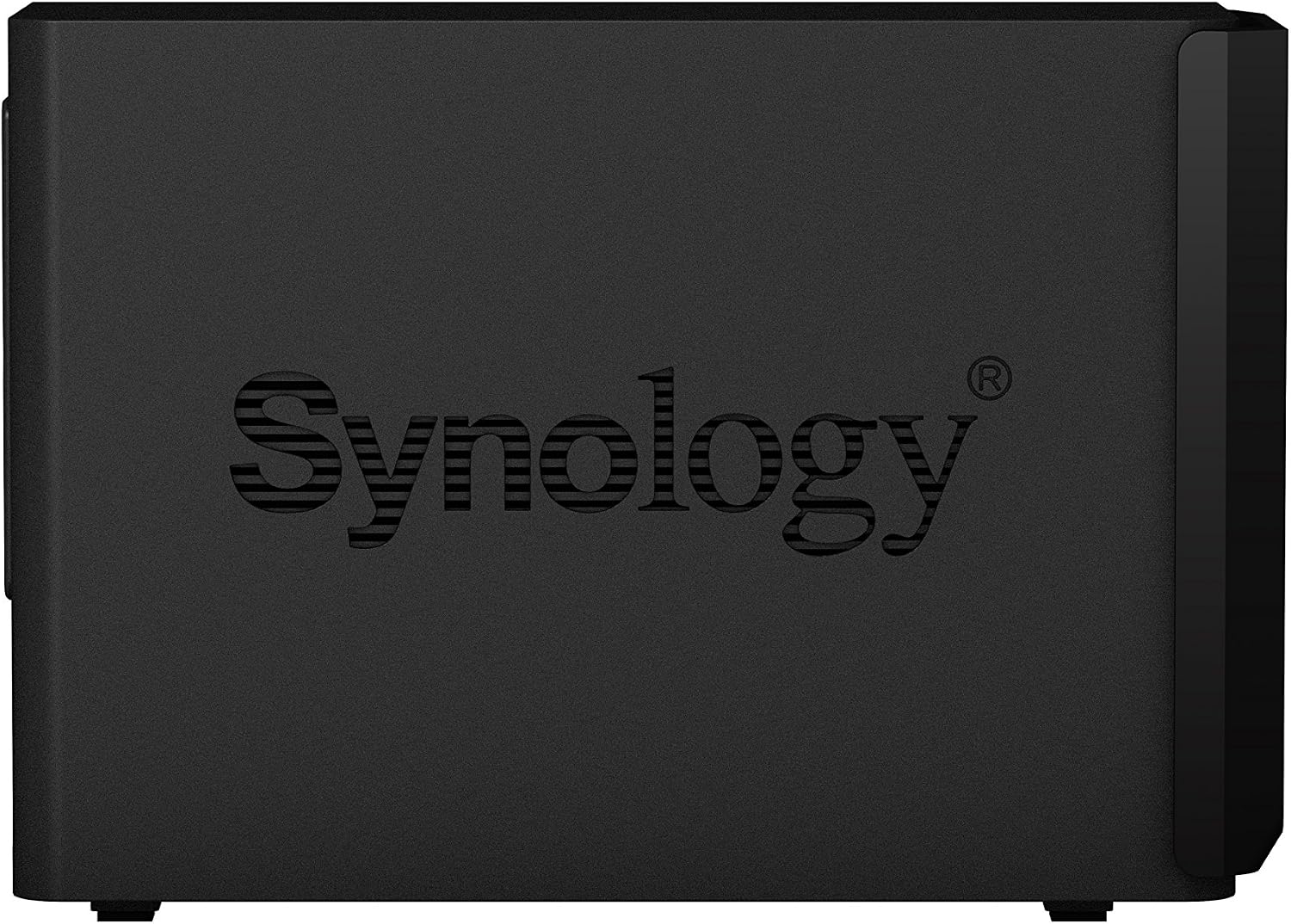

Synology Home & Office Backup Hub, Centralize Files, Protect Data & Monitor Property
Private Cloud Made Easy
The Synology DS223 makes private cloud storage simple and accessible for homes and small offices. Import data from PCs, Macs, and other external storage devices at a 14% faster rate and keep all your devices in sync for smoother file management. This 2-bay NAS brings your data under one roof with complete data ownership and multi-platform access.
Access from Any Device
Get to your files from PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser. Keep your data private or easily share it using secure links. Browse and manage your files from any browser or through Windows File Explorer, Finder on Mac, and more. Access your storage securely from anywhere with intuitive management tools.
Save Storage Space with Smart Sync
Save space on your personal devices by only synchronizing the files you need from your Synology system. Pin frequently accessed files for convenient offline accessibility. Sync files between your private cloud and public cloud services, including Google Drive, Dropbox, and Microsoft OneDrive. Retain local copies of your cloud data for centralized management and complete data ownership.
Sync Across Locations
Say goodbye to long waits while downloading or uploading files. Continuously synchronize content between two Synology devices to enable fast local access at any location, no matter the amount of data. This makes the DS223 perfect for distributed teams and multi-site workflows.
Advanced Data Protection with Btrfs
Not all data storage is created equal. Synology DiskStation Manager (DSM), the operating system that powers the DS223, leverages the efficient Btrfs file system to protect your data against data corruption. Roll back any accidental or malicious changes thanks to snapshot technology. The DS223 is 30% faster in photo indexing than its predecessor, making photo management lightning-fast.
Smart Photo Management
Store and organize photos, albums, and other media with smart and intuitive features. Leverage privacy-focused options to share media securely with friends, family, or colleagues. Browse automatically generated albums using facial recognition, geolocation, tags, and more. The 30% faster photo indexing ensures your memories are organized in record time.
Automatic Media Backup
Have photos and videos taken on mobile devices automatically uploaded to your private cloud with Synology Photos or Synology Drive. Leverage Synology Drive to protect data against ransomware attacks or accidental deletion with real-time or scheduled backups of your computer folders. Safeguard digital memories and important projects with intuitive backup tools.
Professional Video Surveillance
Protect what matters with intuitive monitoring solutions for your home. Connect up to 20 IP cameras by choosing from a wide selection of over 8,300 validated models or ONVIF devices. Watch camera streams through web browsers, desktop clients, or mobile apps. Get notified of events and take immediate action. Supports up to 20 IP cameras at 1080p H.264 with 460 FPS and 20 cameras at 4K H.265 with 200 FPS.
Comprehensive Backup Solutions
Add an extra layer of protection to your files with built-in, license-free solutions. Back up your entire NAS, including system settings and applications, or select specific folders. Secure all backup data to multiple destinations. Take NAS protection to the next level by creating point-in-time copies of shared folders that can be replicated elsewhere and rapidly restored with Snapshot Replication.
Powerful Hardware with Enhanced Memory
Powered by a 1.7 GHz Realtek RTD1619B quad-core processor with 2 GB DDR4 non-ECC memory, the DS223 delivers superior performance for file sharing, photo management, and video surveillance. Features 2 x 3.5″ SATA drive bays with support for RAID 0, RAID 1, JBOD, Basic, and Synology Hybrid RAID configurations. Connectivity includes 1x Gigabit Ethernet port and 3x USB 3.2 Gen 1 ports with convenient USB copy button. The 92mm system fan with adjustable speed modes (Full-Speed, Cool, Quiet) ensures optimal thermal management.
Ultra-Quiet and Energy-Efficient
Engineered for whisper-quiet operation with a noise level of just 14.6 dB(A), the DS223 is barely audible in quiet home and office environments. Consumes only 17.34 watts during access and 4.08 watts during HDD hibernation. Supports scheduled power on/off cycles and hard drive hibernation to minimize power consumption. Extend the standard 2-year hardware warranty up to 4 years with Extended Warranty Plus.

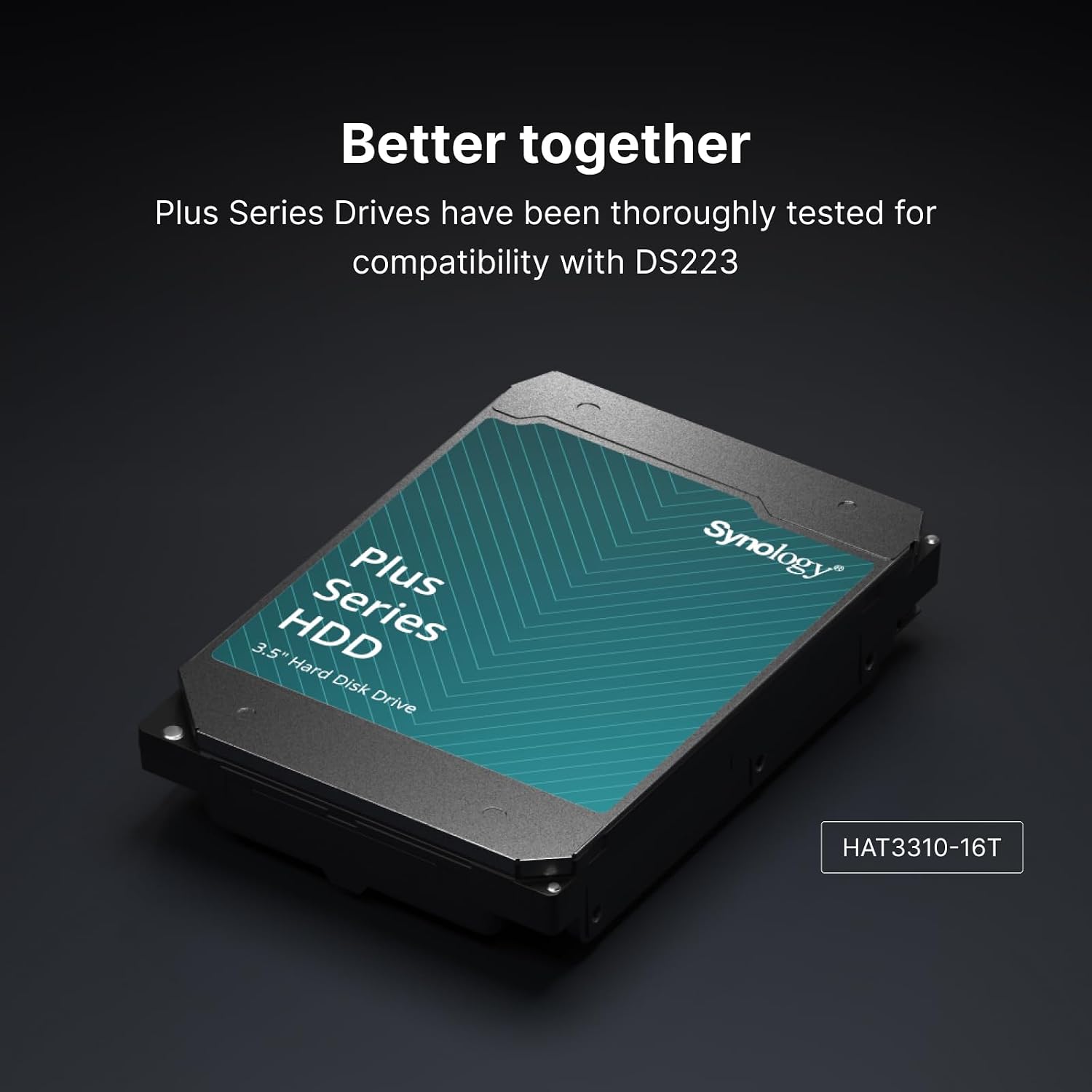

Works Best with Synology Drives
Leverage high sustained performance and reliability with well-engineered drives designed specially for Synology systems. Compatible with Plus Series 3.5″ SATA HDD (HAT3300 Series) and Enterprise Series 2.5″ SATA SSD (SAT5200 Series).
When searching for the Best 2-Bay NAS in Pakistan, the Synology DS223 delivers exceptional value for home and office use. Shop from the Official UGREEN Store in Pakistan for complete data storage solutions. For network connectivity, explore the UGREEN 50737 USB C to Ethernet Adapter.
Products Specifications
- Brand: Synology
- Model: DiskStation DS223
- Product Type: 2-Bay NAS Enclosure
- CPU: Realtek RTD1619B Quad-Core 1.7 GHz
- CPU Architecture: 64-bit
- Memory: 2 GB DDR4 non-ECC
- Drive Bays: 2 x 3.5″ SATA HDD or 2.5″ SATA SSD
- Hot Swappable: Yes
- Maximum Single Volume Size: 108 TB
- Maximum Internal Volume Number: 64
- Supported RAID Types: Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1
- RAID Migration: Basic to RAID 1
- Volume Expansion: Synology Hybrid RAID, RAID 1
- Network Port: 1 x RJ-45 1GbE LAN Port

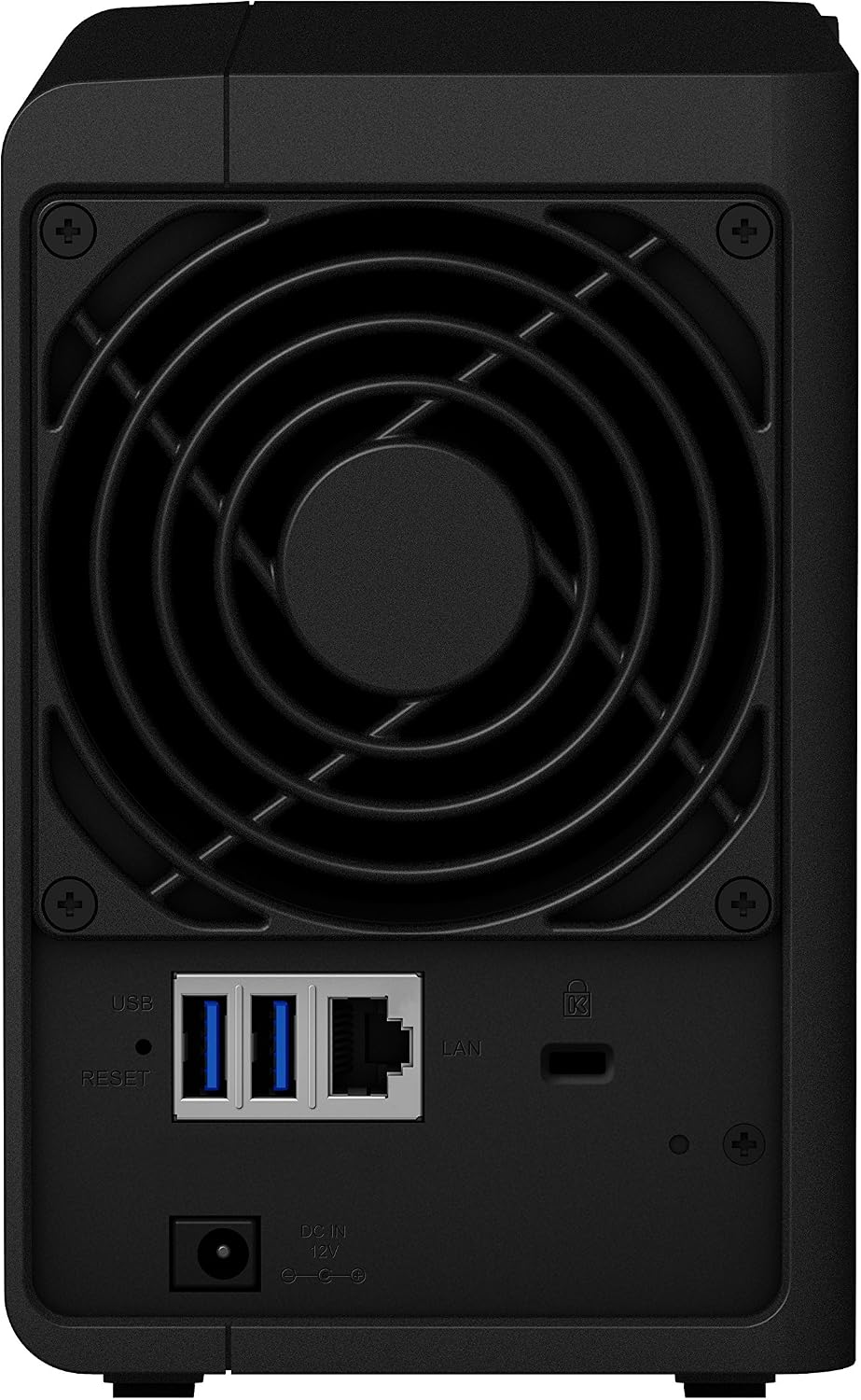

- USB Ports: 3 x USB 3.2 Gen 1 Ports (1 Front, 2 Rear)
- USB Copy Button: Yes
- System Fan: 92 mm × 92 mm × 1 pc
- Fan Speed Modes: Full-Speed, Cool, Quiet
- Noise Level: 14.6 dB(A)
- Power Consumption: 17.34 watts (Access), 4.08 watts (HDD Hibernation)
- Power Supply: 60 watts AC Adapter
- AC Input: 100V to 240V AC, 50/60Hz
- Dimensions: 165 mm × 108 mm × 232.7 mm (Height × Width × Depth)
- Weight: 1.28 kg
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Operating Humidity: 8% to 80% RH
- Storage Humidity: 5% to 95% RH
- Internal File Systems: Btrfs, ext4
- External File Systems: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
- File Protocols: SMB, AFP, NFS, FTP, WebDAV, Rsync
- Maximum Local User Accounts: 256
- Maximum Local Groups: 64
- Maximum Shared Folders: 64
- Certifications: FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS
- RoHS Compliant: Yes
- Warranty: 2-Year Hardware Warranty (Extendable to 4 Years with Extended Warranty Plus)
DiskStation Manager (DSM) Specifications
- File Services:
- Maximum SMB Connections: 5 (FSCT-Based)
- Windows ACL Integration: Yes
- NFS Kerberos Authentication: Yes
- Account & Shared Folder:
- Maximum Local User Accounts: 256
- Maximum Local Groups: 64
- Maximum Shared Folder: 64
- Maximum Shared Folder Sync Tasks: 2
- Hyper Backup:
- Folder and Package Backup: Yes
- Snapshot Replication:
- Maximum Snapshots per Shared Folder: 128
- Maximum System Snapshots: 1,024
- Maximum Replication Tasks for Shared Folders: 16
- Synology Drive:
- Maximum Users: 5
- Maximum Hosted Files: 100,000
- Surveillance Station:
- Default Licenses: 2 (Additional cameras require purchase)
- H.264 Support: 1080p: 20 channels 460 FPS, 3M: 20 channels 300 FPS, 5M: 15 channels 150 FPS, 4K: 11 channels 110 FPS
- H.265 Support: 1080p: 20 channels 500 FPS, 3M: 20 channels 400 FPS, 5M: 20 channels 350 FPS, 4K: 20 channels 200 FPS
- Synology Office:
- Maximum Users: 5
- VPN Server:
- Maximum Connections: 2
- General Specifications:
- Supported Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
- Supported Browsers: Chrome, Firefox, Edge, Safari
- Supported Languages: English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
- Explore Related Products:
What’s in the Box
- 1 x Synology DiskStation DS223 Main Unit
- 1 x Accessory Pack
- 1 x AC Power Adapter (60W)
- 1 x AC Power Cord
- 1 x RJ-45 LAN Cable
- 1 x Quick Installation Guide
Note: Hard drives are NOT included. This is a diskless NAS enclosure.
Frequently Asked Questions
Q1: What RAID configurations does the Synology DS223 support?
A: Yes, the Synology DS223 supports Synology Hybrid RAID, Basic, JBOD, RAID 0, and RAID 1 configurations. It also supports RAID migration from Basic to RAID 1 and volume expansion with larger HDDs. This flexibility allows you to choose the right balance between storage capacity and data protection. For additional storage expansion, consider the UGREEN 60737 USB 3.0 to SATA Dual-Bay HDD Docking Station.
Q2: How much memory does the DS223 have?
A: Yes, the Synology DS223 comes with 2 GB DDR4 non-ECC memory, which is double the memory of the DS223j model. This enhanced memory provides better performance for multitasking, photo indexing, and running multiple applications simultaneously. For SSD storage, explore the UGREEN 90264 M.2 NVMe Hard Drive Enclosure.
Q3: How many USB ports does the DS223 have?
A: Yes, the Synology DS223 features 3 USB 3.2 Gen 1 ports one on the front with a USB copy button for one-touch backup, and two on the rear. This allows you to easily connect external drives, printers, and other USB devices. For additional USB ports, check the UGREEN 20805 USB 3.0 Hub 4 Ports.
Q4: Can the DS223 be used for video surveillance?
A: Yes, the Synology DS223 supports Synology Surveillance Station with 2 default camera licenses. It supports up to 20 IP cameras at 1080p H.264 with 460 FPS and 20 cameras at 4K H.265 with 200 FPS. It is compatible with over 8,300 validated IP cameras and ONVIF devices. For reliable network connectivity, check the UGREEN 50737 USB C to Ethernet Adapter.
Q5: Is the DS223 energy efficient and quiet?
A: Yes, the DS223 is engineered for whisper-quiet operation with a noise level of just 14.6 dB(A), making it barely audible in quiet home and office environments. It consumes only 17.34 watts during access and 4.08 watts during HDD hibernation. Supports scheduled power on/off cycles to minimize power consumption. For power accessories, explore the UGREEN 60468 36W USB-C Wall Charger.
Q6: What is the photo indexing speed of the DS223?
A: Yes, the Synology DS223 is 30% faster in photo indexing than its predecessor. This means you can organize and browse your photo collection with facial recognition, geolocation, and tags much more quickly. The efficient Btrfs file system further enhances data protection and performance. For external backup, consider the UGREEN 30849 USB 3.0 External HDD Enclosure.
Q7: Can I sync files with public cloud services?
A: Yes, the Synology DS223 supports Synology Cloud Sync for synchronizing files between your private cloud and public cloud platforms including Google Drive, Dropbox, Microsoft OneDrive, and more. This allows you to retain local copies of your cloud data and centralize management with complete data ownership. For photo backup, check the UGREEN 40752 USB 3.0 SD Card Reader.
Q8: What are the physical dimensions and weight of the DS223?
A: Yes, the Synology DS223 measures 165 mm × 108 mm × 232.7 mm (Height × Width × Depth) and weighs 1.28 kg. Its compact form factor with hot-swappable drive bays makes it ideal for home offices and small business environments. For desktop organization, explore the UGREEN 80708 Adjustable Aluminum Phone Holder.
Q9: What is the warranty period for the DS223?
A: Yes, the Synology DS223 comes with a 2-year hardware warranty that can be extended to 4 years with Extended Warranty Plus. The warranty period starts from the purchase date as stated on your receipt. EW201/EW202 is available in Asia, Africa, and Oceania. For additional protection, consider the UGREEN 40705 Cable Protector USB Cable Saver.
Q10: What operating systems are compatible with the DS223?
A: Yes, the Synology DS223 is compatible with Windows, macOS, Linux, Chrome OS, Android, and iOS for file access. It supports file protocols including SMB, AFP, NFS, FTP, WebDAV, and Rsync. It also supports Windows AD and LDAP for easy integration into existing network infrastructure. For USB hub expansion, check the UGREEN 50985 Ultra Slim 4 Port USB 3.0 Hub.
