UGREEN 40216 4 X 2 HDMI MATRIX SWITCH BOX

UGREEN 40216 4 X 2 HDMI MATRIX SWITCH BOX3

Out Of Stock

UGREEN 40216 4 X 2 HDMI MATRIX SWITCH BOX

in UGREEN

Sku: 40216

5.00 (1 Review)

₨ 23,250.00

Out of stock

Get Extra -10% Discount on Bank Transfer: ₨ 20,925.00

Ask for more info!

Features

Compact HDMI switch from Ugreen. The presence of 4 USB 2.0 inputs allows you to connect 4 different devices , for example a console or a TV set-top box, from which the image and sound will be displayed on the TV. This way you solve the problem with too few HDMI inputs .

Compare Wishlist

100% Genuine Guaranteed Products.

1 Year UGREEN Official Warranty See Details

Cash on Delivery all over Pakistan

Delivery in Karachi within 24 hours & others cities within 3-5 working days

Description

Specifications:

HDMI version: 1.4

Input ports: 4x HDMI

Output ports: 2x HDMI, 1x 3.5mm mini jack, 1x S / PDIF

Dimensions: 21 x 6.8 x 2 cm

Housing: ABS

Kit contents: DC – USB (5V / 1A) power cable, remote control Supports Audio Return Channel (ARC)

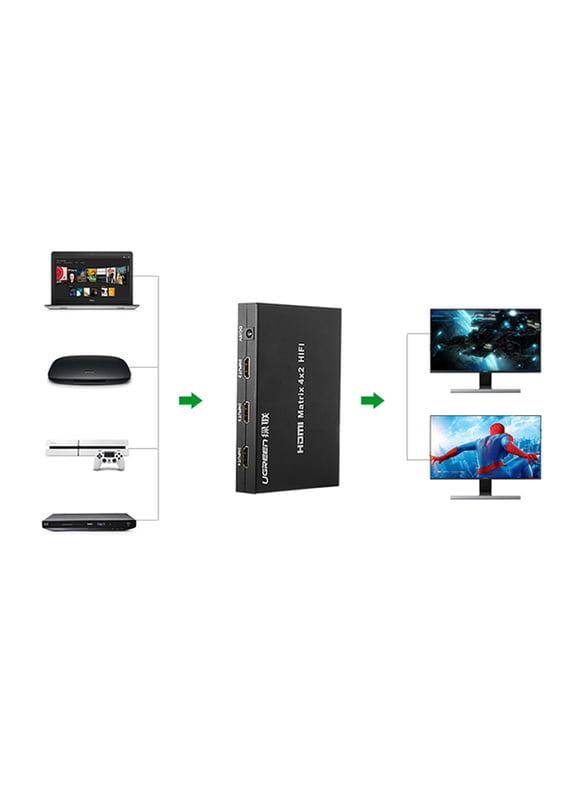

Modes of operation:

Switch mode: two monitors display a different picture

Splitter mode: Two monitors display the same image Allows you to connect HDMI cables with a total length of up to 40 m

Resolution:
4K @ 30Hz – for HDMI cables with a total length of up to 24 m (input cable up to 12 m + output cable up to 12 m)

Full HD 1080 @ 60Hz – for cables with a total length of 40 m (input cable up to 20 m + output cable up to 20 m

Reviews (1)

REAL CUSTOMER FEEDBACK

Customer Reviews

Ratings and experiences shared by customers.

5.0★★★★★1 reviews

5 ★

4 ★

3 ★

2 ★

1 ★

Filter reviews:All reviews 5 ★4 ★3 ★2 ★1 ★

Mohtishim Afnan30 August 2024

★★★★★

Share your experience

Rate this product and help other customers make an informed choice.

Write a review Cancel reply

Specification

Discover the ultimate entertainment hub management with the UGREEN 40216 4 x 2 HDMI Matrix Switch Box. Designed by Ugreen, this versatile device seamlessly solves input limitations by letting you connect up to four media sources to two separate displays. Featuring advanced HDMI 1.4 technology, support for 4K resolutions, and versatile audio outputs, this reliable hdmi switch box delivers exceptional clarity and seamless switching performance for your home theater or gaming setup.

⚡ Features & Specs

HDMI Version	1.4
Input Ports	4x HDMI
Output Ports	2x HDMI, 1x 3.5mm Mini Jack, 1x S/PDIF
Resolution Support (4K)	4K @ 30Hz for total cable length up to 24m (Input up to 12m + Output up to 12m)
Resolution Support (Full HD)	Full HD 1080 @ 60Hz for total cable length up to 40m (Input up to 20m + Output up to 20m)
Modes of Operation	Switch mode (two monitors display different pictures) and Splitter mode (two monitors display the same image)
Audio Return Channel	Supports Audio Return Channel (ARC)
Maximum Cable Reach	Supports HDMI cables with a total length of up to 40 m
Power Supply Requirement	DC – USB (5V / 1A)
Housing Material	ABS Plastic
Remote Control	Included wireless remote control
Connectivity Technology	Wired HDMI
Control Method	Remote control and manual buttons
Signal Transmission	Digital Audio and Video
Audio Support	Digital S/PDIF and Analog 3.5mm Audio Extraction
Switching Technology	Electronic Matrix Switching
Display Support	Dual Display Simultaneous or Independent Output
EDID Management	Automatic EDID learning
HDCP Compliance	HDCP compliant
Refresh Rate Support	Up to 60Hz at 1080p, 30Hz at 4K
Bandwidth Capacity	High-speed transmission bandwidth
Interference Protection	Shielded ABS construction
Power Indicator	LED status indicators
Input Selection	Independent channel selection per output
Port Placement	Rear panel inputs/outputs for clean cable management
Thermal Management	Passive cooling design
Plug and Play	Yes, no drivers required
Energy Efficiency	Low power consumption via 5V USB source
Compatibility Profile	Universal HDMI source devices
Mounting Options	Desktop placement

📋 Item details

Brand	UGREEN
Model Number	40216
SKU	40216
MFN Part Number	UGREEN-40216
Manufacturer	Ugreen Group
Categories	UGREEN > HDMI Switches & Converters
Tags	hdmi switch box
Country of Origin	China
Item Model Number	CM284 / 40216

📏 Measurements

Number of Items	1 Matrix Switch Unit
Item Weight	Standard lightweight design
Unit Count	1
Product Dimensions	21 x 6.8 x 2 cm
Package Dimensions	Standard retail packaging

🎨 Additional details

Color	Black
Enclosure Material	ABS
Form Factor	Desktop Box
Style	Modern Electronic Accessory
Theme	Home Entertainment & Office Productivity
Finish Type	Matte textured

📖 User guide

Usage Instructions	Connect up to 4 source devices to the HDMI inputs and up to 2 displays to the HDMI outputs. Connect the included DC-USB power cable to power the device. Use the front panel buttons or remote control to route signals.
Installation	Plug and play. No software or drivers installation required. Ensure total cable lengths remain within specified limits for optimal resolution.
Care Instructions	Clean with a soft, dry cloth. Avoid using liquid cleaners, solvents, or abrasive materials.
Safety Warnings	Do not expose the device to moisture, rain, or extreme temperatures. Keep away from direct sunlight and heat sources.
Maintenance	Keep ventilation areas clear. Ensure cables are securely plugged in without tight bending.
Certification	CE, FCC, RoHS compliant
Compatibility Notes	Compatible with standard HDMI source devices including gaming consoles, media players, and set-top boxes.
Operating Temperature	0°C to 40°C

🎯 Use Cases

Best For	Expanding limited HDMI ports on TVs and routing multiple sources to multiple screens
Ideal Scenarios	Home theater setups, gaming rooms, conference rooms, multi-display entertainment hubs
Target Audience	Gamers, home cinema enthusiasts, AV professionals, multi-device households
Compatible With	PlayStation, Xbox, TV set-top boxes, Blu-ray players, PCs, Projectors, TVs, Monitors
Not Recommended For	Commercial broadcast networks requiring multi-kilometer signal extension without extenders

⚖️ Pros & Cons

Pros

Connects up to 4 different source devices to 2 displays seamlessly
Supports both switch and splitter operational modes
Includes dedicated 3.5mm mini jack and S/PDIF audio output ports
Supports crisp 4K resolution at 30Hz and Full HD at 60Hz
Convenient wireless remote control included in the package

Cons

Limited to 4K resolution at 30Hz rather than 60Hz
Requires external 5V/1A USB power source to function
Maximum cable length restrictions apply for maintaining 4K quality

📦 Box Contents

Main Unit	UGREEN 4x2 HDMI Matrix Switch Box
Cables	DC to USB (5V / 1A) Power Cable
Adapters	None required (USB powered)
Documentation	User Manual and Quick Start Guide
Warranty Card	Included in documentation package
Other Accessories	Wireless Remote Control

🛡️ Warranty & Support

Warranty Period	Standard Manufacturer Warranty
Warranty Type	Replacement or Repair coverage for manufacturing defects
Coverage	Covers internal hardware failures and structural defects under normal use
Support Contact	Available via official Ugreen customer support channels
Return Policy	Standard store return and exchange guidelines apply
Customer Service Hours	Monday to Friday
Service Locations	Authorized service centers globally

FAQs

PRODUCT SUPPORT

Frequently Asked Questions

11 answers

01What is the primary function of the UGREEN 40216 HDMI Matrix Switch?

The UGREEN 40216 acts as a 4x2 matrix switch that allows you to connect four different HDMI source devices, such as gaming consoles or set-top boxes, to two separate displays. It effectively solves the issue of having limited HDMI ports on your television or monitor.

02Does this device support 4K resolution, and what are the cable length limitations?

Yes, it supports 4K resolution at 30Hz, provided the total length of your HDMI cables does not exceed 24 meters. This limit is calculated as a maximum of 12 meters for the input cable and 12 meters for the output cable.

03What is the difference between Switch mode and Splitter mode on this unit?

Switch mode allows your two connected monitors to display different pictures from different sources simultaneously. In Splitter mode, both connected monitors display the exact same image from a single source device.

04Can I extract audio from the HDMI signal using this switch?

Yes, the device features dedicated audio output ports, including a 3.5mm mini jack for analog audio and an S/PDIF port for digital audio. This allows you to route sound to external speakers or sound systems independently of the HDMI display.

05What is the maximum cable length supported for Full HD 1080p content?

For Full HD 1080p resolution at 60Hz, the switch supports a total cable length of up to 40 meters. This is achieved by using up to 20 meters of cable for the input and up to 20 meters for the output.

06Does the UGREEN 40216 support Audio Return Channel (ARC)?

Yes, the device supports Audio Return Channel (ARC). This feature allows for a two-way communication between your TV and the connected audio system over a single HDMI connection, simplifying your home theater setup.

07How is the UGREEN 40216 powered?

The device requires an external power supply and comes with a DC to USB (5V / 1A) power cable. You must ensure it is connected to a power source to maintain stable signal transmission and switching performance.

08How can I control the input and output switching on this device?

You can control the switching either manually using the buttons located on the device housing or remotely using the included wireless remote control. This provides flexibility for users in Pakistan setting up home entertainment systems.

09What material is the housing of the UGREEN 40216 made from?

The housing of the UGREEN 40216 HDMI Matrix Switch is constructed from durable ABS plastic. This material is lightweight and compact, measuring 21 x 6.8 x 2 cm, making it easy to integrate into your existing media console.

10Is this switch compatible with older HDMI standards?

The device uses HDMI version 1.4 technology. It is designed to handle digital audio and video signal transmission for devices compatible with this standard, ensuring reliable connectivity for your various media sources.

11Where can I buy UGREEN 40216 4 X 2 HDMI MATRIX SWITCH BOX (SKU: 40216) and what is its price?

You can purchase UGREEN 40216 4 X 2 HDMI MATRIX SWITCH BOX (SKU: 40216) directly from UGREEN PK. Price is ₨ 23,250.00. Visit the product page here: UGREEN PK
