UNITEK Wireless HDMI Transmitter & Receiver Kit 200M Range 1080P@60Hz Full HD

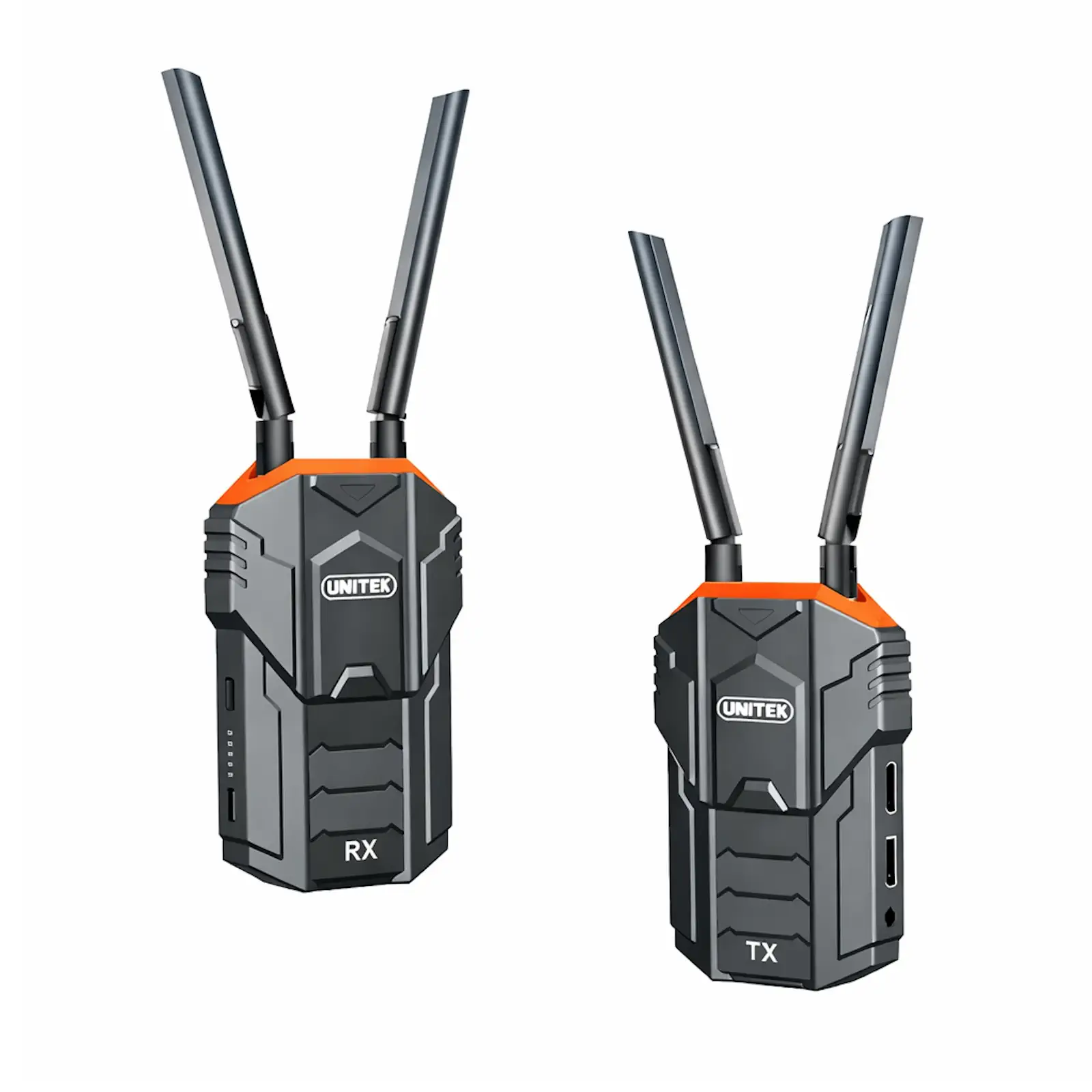

UNITEK V176A Wireless HDMI Transmitter & Receiver Kit, 200M Range 1080P@60Hz Full HD, Plug & Play for Projector, TV, PC, Camera, Conference, Live Event

Cut the cord for good. The UNITEK V176A Wireless HDMI System provides the freedom and flexibility of wireless video transmission without compromising on quality or reliability. Designed for integrators, AV professionals, and venues, this kit replaces expensive and cumbersome long HDMI cables, enabling clean, professional setups in conference halls, classrooms, churches, and live event stages.

Professional-Grade Wireless Freedom
First and foremost, this system breaks the distance barrier. Whether you need to send a presenter’s laptop screen to a projector at the back of an auditorium or stream a camera feed to a monitoring station across a field, its 200-meter line-of-sight range makes it possible without a single cable. This translates to massive savings on cable costs and installation time.

Engineered for Stable, Clear Performance
Unlike consumer screen-mirroring solutions, this dedicated system uses a direct, secure 5GHz wireless link for a robust connection. The dual-antenna design (MIMO) combats signal dropouts, while support for 1080P at 60Hz ensures presentations and videos look crisp and fluid. For powering the units in any location, a reliable UGREEN power bank can be useful.

Complete Kit for Immediate Deployment
Everything you need is in the box. The kit includes transmitter, receiver, antennas, IR extenders, HDMI cables, and power adapters. The built-in IR pass-through is a professional touch, allowing remote control of source devices hidden away. Essentially, it’s a self-contained, versatile AV solution that delivers exceptional value and performance for permanent installations or temporary events.

Products Specifications:

• Model: UNITEK V176A
• System: Point-to-Point Wireless HDMI Transmitter & Receiver Kit
• Max Wireless Range: Up to 200 meters (Open space, line-of-sight)
• Max Resolution: Full HD 1080P@60Hz
• Video Latency: Low Latency (Typically <1 frame)
• Frequency Band: 5.2GHz & 5.8GHz
• Antennas: 4 x High-Gain Dual-Band Antennas (2 per unit)
• Input/Output:

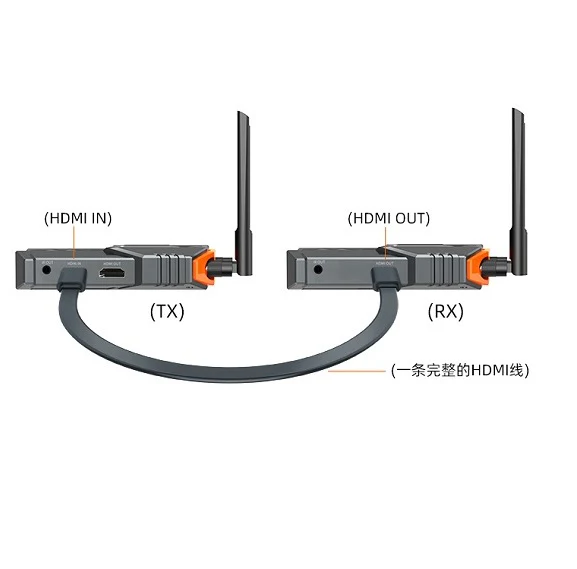

  • Transmitter: 1x HDMI In, 1x HDMI Loop Out, 1x IR Out
  • Receiver: 1x HDMI Out, 1x IR In
• Power: 5V/2A via USB-C (Adapters & Cables Included)
• Features: Auto-Pairing, IR Remote Extender, Plug & Play
• Compatibility: Laptops, PCs, Cameras, Blu-ray Players, Streaming Boxes, TVs, Projectors, Monitors.

What’s in the Box?

• 1 x Wireless HDMI Transmitter
• 1 x Wireless HDMI Receiver
• 4 x Dual-Band Antennas
• 2 x IR Extension Sensors/Blasters
• 2 x HDMI Cables (0.5m)
• 2 x USB-C Power Cables
• 2 x USB-C Power Adapters (5V/2A)
• 1 x User Manual

10 FAQs:

1. What is the real-world range I can expect?
The 200-meter claim is for optimal, open line-of-sight conditions. In real-world environments with walls, furniture, and interference, expect a practical range of 30-70 meters indoors. For best results, ensure a clear path between the transmitter and receiver antennas.

2. Is there any noticeable audio/video lag (latency)?
Latency is very low (typically under 30ms), making it suitable for presentations, video playback, and live lyrics. It is not recommended for competitive, fast-twitch gaming where every millisecond counts.

3. Does it require a Wi-Fi network or internet connection?
No. It creates its own direct, point-to-point wireless link between the transmitter and receiver. No Wi-Fi network, router, or internet connection is needed or used.

4. Can I connect multiple receivers to one transmitter (one-to-many)?
No. This specific model is a point-to-point system (one transmitter to one receiver). To broadcast to multiple displays wirelessly, you would need a one-to-many wireless HDMI system.

5. How does the IR remote extender feature work?
Connect the included IR blaster to the transmitter (near your source device) and the IR sensor to the receiver (near your display). You can then point your source device’s remote at the sensor by the TV, and the command will be wirelessly relayed to control the hidden source device.

6. Will it work through walls?
Yes, it can penetrate drywall and wooden walls, but each wall will reduce the effective range. For best performance and range, try to minimize physical obstructions between the two units.

7. What is the HDMI Loop Out port on the transmitter for?
This allows you to locally monitor the video signal being sent wirelessly on a screen near the source. It’s useful for the presenter to see what is being broadcast.

8. Can I use it with a video camera for live streaming to a separate monitor?
Yes, this is an excellent use case. It’s perfect for wirelessly sending a camera’s HDMI feed to a director’s monitor or a live display at an event, freeing the camera operator from a cable tether.

9. Is the video quality compressed?
Yes, the signal is digitally compressed to transmit wirelessly, but it uses advanced compression to maintain high visual quality at 1080P. The difference from a direct cable is often minimal for typical presentation and video content.

10. Where can I find more professional AV solutions?
For other professional AV gear like HDMI matrices, distribution amplifiers, or cable solutions, visit the official UNITEK and UGREEN websites.
