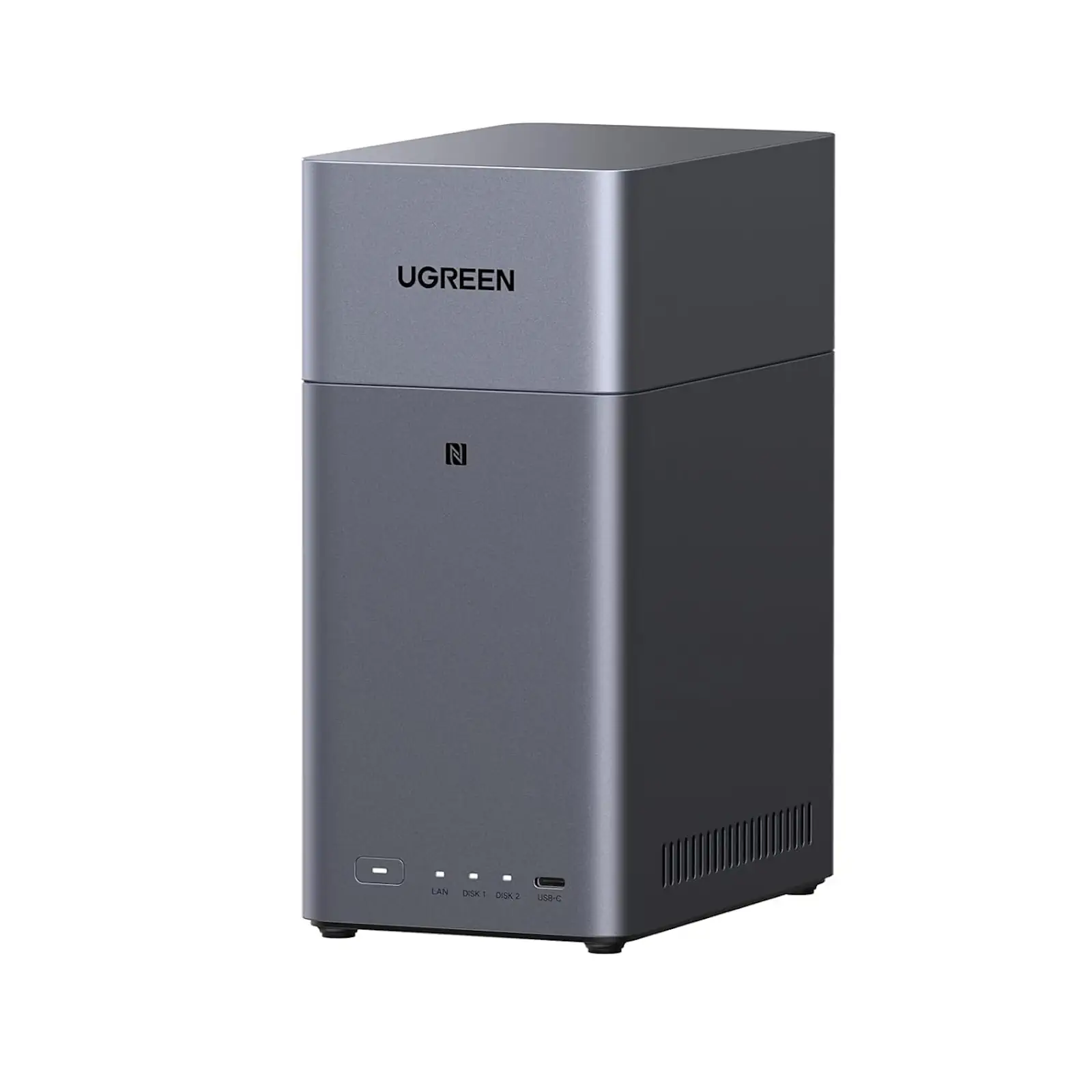

UGREEN 95087 NASync DH2300 2-Bay Desktop NAS (Diskless) Entry-Level Network Attached Storage, Support 64TB Capacity

UGREEN 95087 NASync DH2300 2-Bay Desktop NAS – Entry-Level Network Attached Storage, Support 64TB Capacity (Diskless), Remote Access, AI Photo Album, 4GB RAM, 1GbE, 4K HDMI, Beginner Friendly System

Simplify Your Personal Data Consolidation

Take complete control of your digital footprint with the UGREEN NASync DH2300 desktop network storage system. Many beginners struggle with scattered files across multiple phones and computers. However, this entry-level 2-bay enclosure offers a private way to centralize all your videos, photos, and personal documents.

Furthermore, the configuration process is exceptionally simple. This makes the transition from restrictive cloud platforms smooth. To charge your control smartphones directly at your data desk, you can rely on the HOCO U93 Shadow USB to Type-C Charging Data Sync Cable (Red). Therefore, it serves as a highly reliable foundation for your home network setup.

Massive Storage Without Monthly Fees

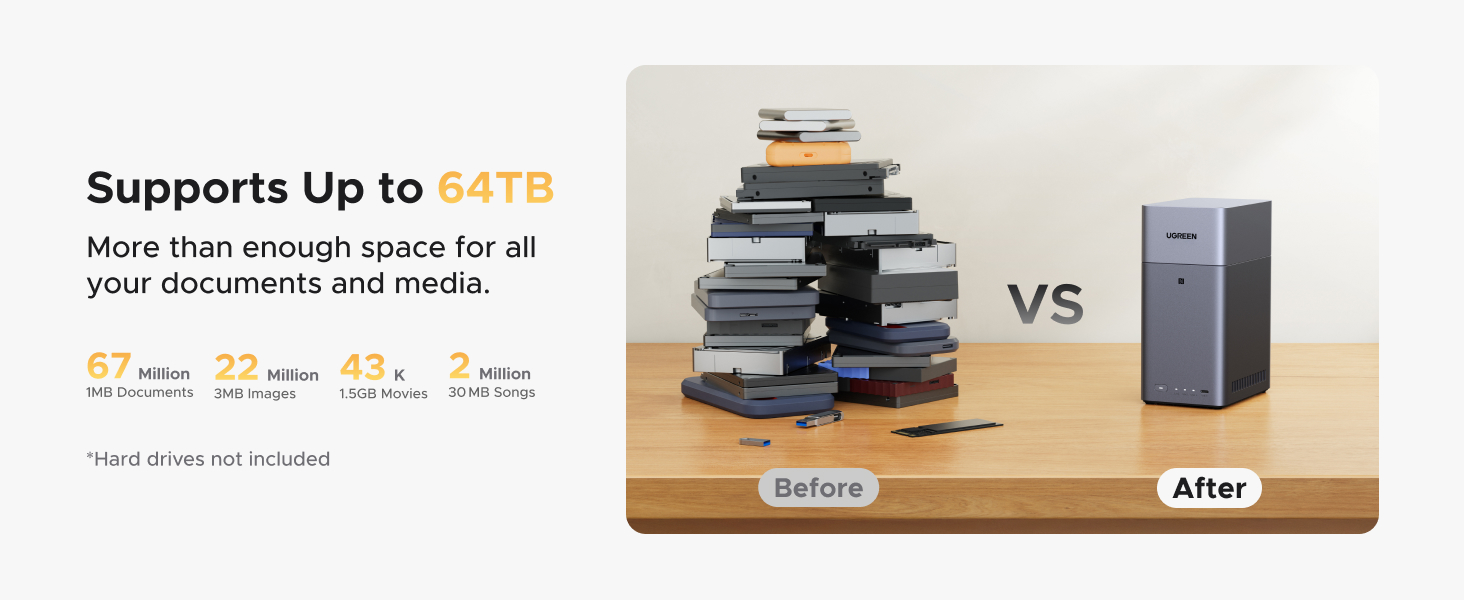

Set your mobile hardware free and expand your digital world significantly. This storage vault supports up to 64TB of raw capacity across dual SATA bays. Consequently, you can store millions of images or thousands of high-definition movies in one secure location.

Unlike commercial cloud services with recurring bills, this hardware requires only a one-time purchase. For monitoring your network rack setup remotely, you can pair this unit with the UGREEN 15728 Full HD USB Web Camera with Microphone Plug and Play.

High-Speed Operations and Low Power Draw

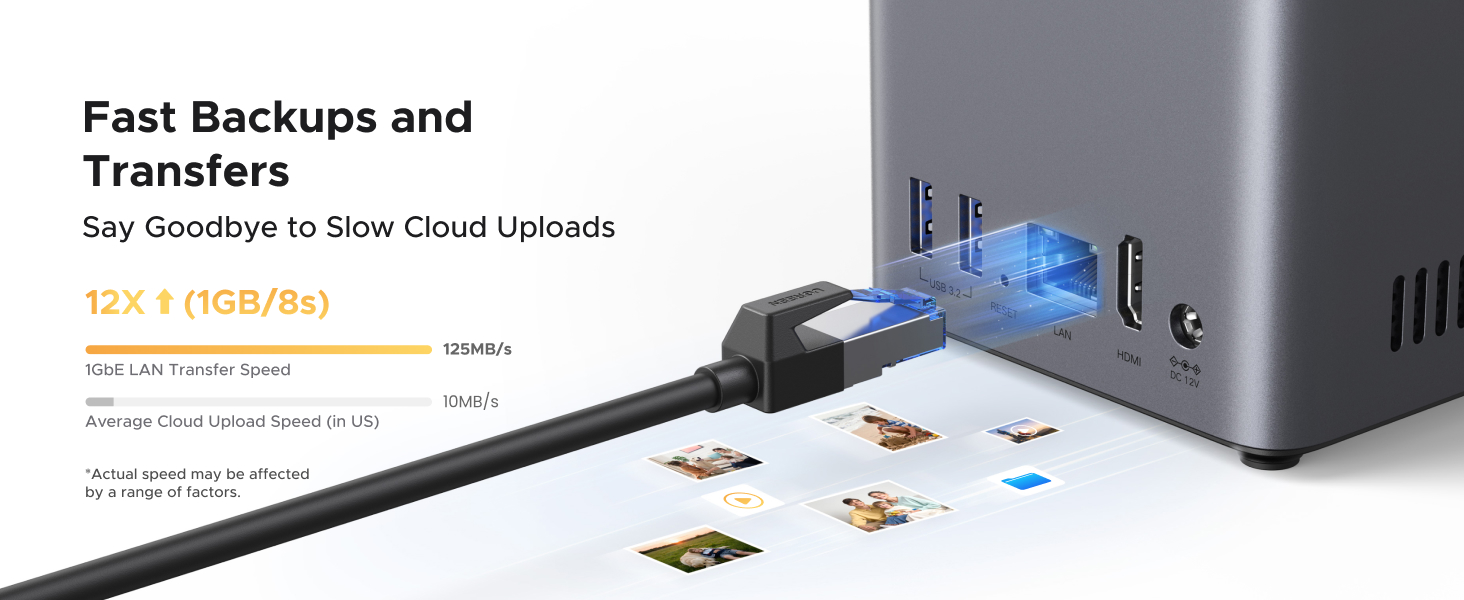

Experience blazing local network speeds without letting slow internet connections hold you back. This NAS features an 8-core Rockchip processor alongside 4GB LPDDR4X RAM. As a result, file transfers reach up to 125MB/s.

This means a large 1GB file transfers in just 8 seconds. Meanwhile, standard cloud options often take over 100 seconds for the same task. If you are terminating custom length network cords to link this server to your main home switch, utilize the premium UGREEN 50962 RJ45 CAT6 Gold Plated Connectors (50 Pieces).

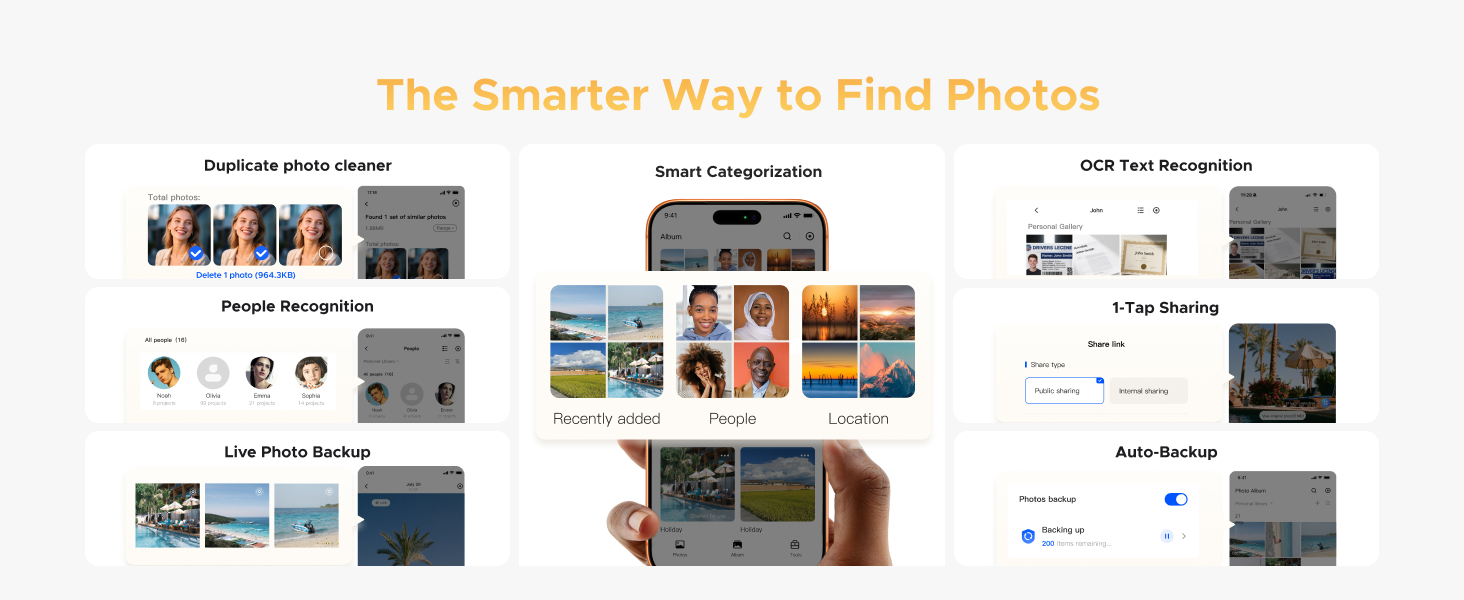

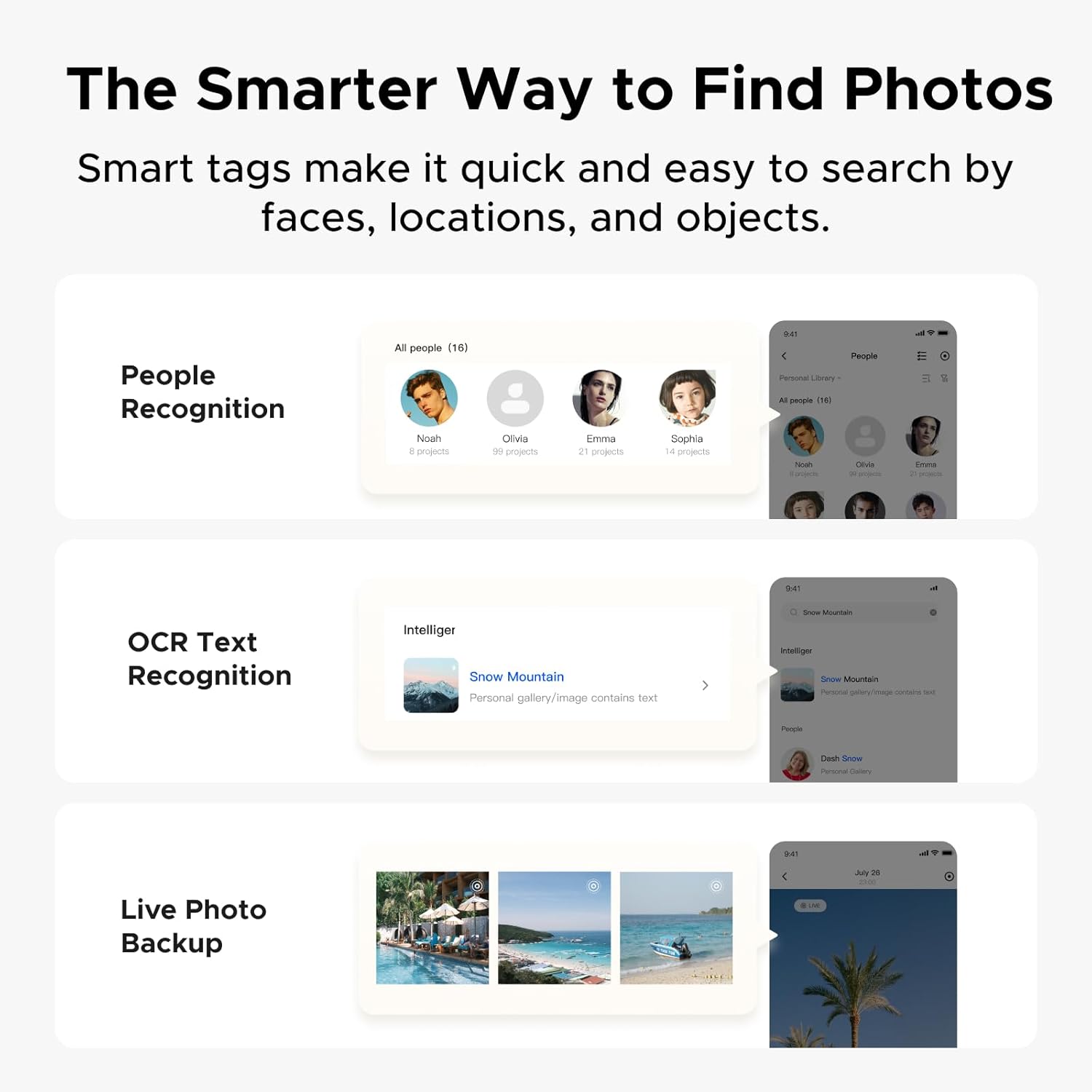

Intelligent AI Media Management

Let advanced AI tools organize your personal memories effortlessly. The internal operating system uses smart algorithms to identify faces, locations, text, and specific objects. Therefore, you can find any specific picture within seconds.

Additionally, the software automatically locates and removes duplicate pictures to save space. For hands-free system monitoring using your secondary tablet while managing files, deploy the UGREEN 30485 Multi-Angle Adjustable Portable Stand (White).

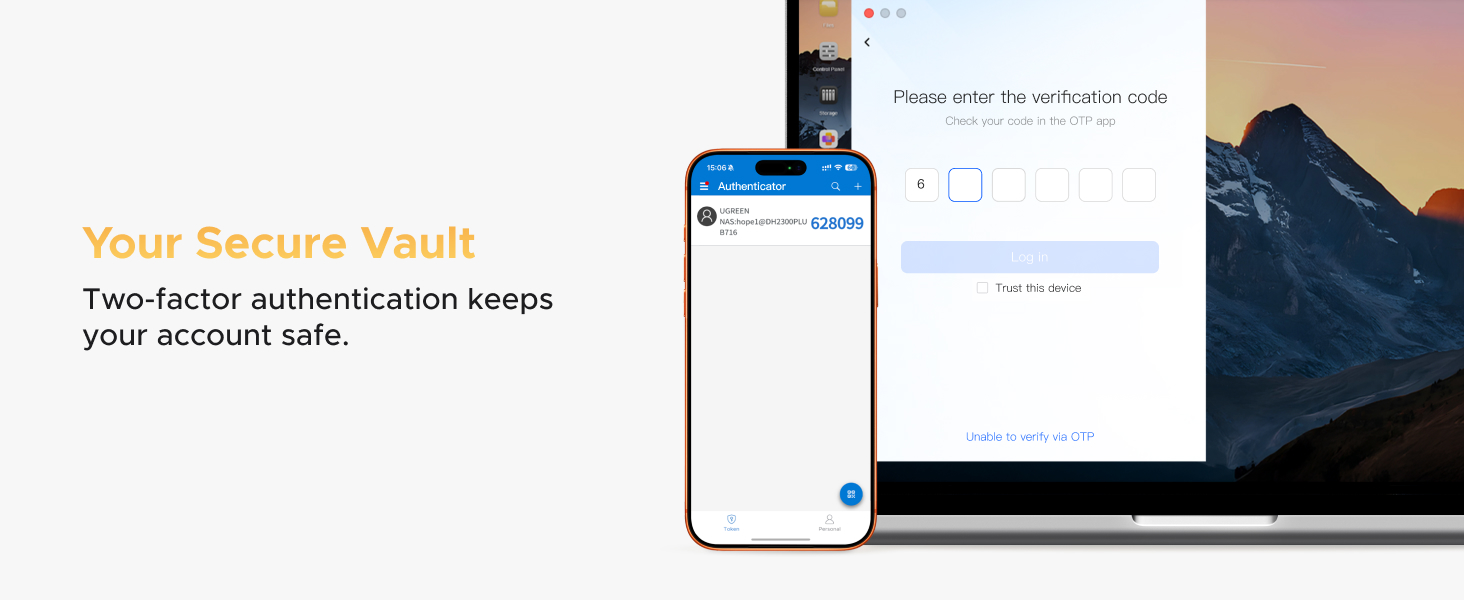

Uncompromising Privacy and Hardware Protection

You own your data completely. Your files remain stored strictly on your physical drives without third-party access. To protect your data against leaks, this device uses layered security features like custom RAID modes, two-factor authentication, and encrypted transfers.

Most importantly, it is certified by TÜV SÜD to meet the strict ETSI EN 303645 standard. If you need to route media from a local workstation display to a dedicated server monitor, the UGREEN 25491 DisplayPort 1.2 to HDMI Cable (3 Meter) offers pure conversion. Every single unit includes an authentic brand warranty.

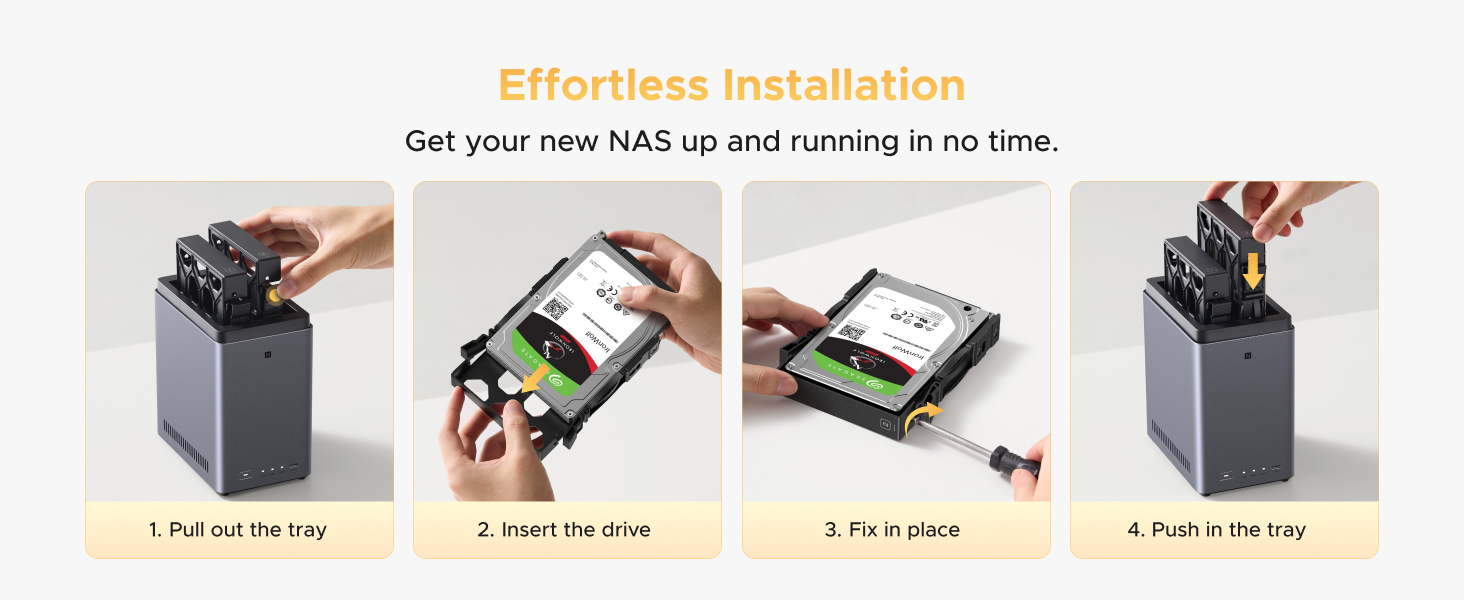

Flexible Hard Drive Compatibility

This network storage device offers wide compatibility with third-party hard drives and SSDs. It supports 3.5-inch and 2.5-inch SATA drives from Western Digital, Seagate, Toshiba, and Synology.

However, please note that M.2 NVMe drives and SAS interfaces are not supported. For optimal performance, we highly recommend using dedicated NAS or enterprise-class drives. For local technical configurations via your administrative laptop, link your wireless gear with the UGREEN 80889 USB Bluetooth 5.0 Adapter for PC Driver-Free Dongle.

Clean Desktop Integration and Expansion

Keeping your workspace clean is essential when deploying a brand-new home server setup. The compact Space Gray chassis sits neatly next to your primary computing monitor or router block without taking up valuable desk space.

Furthermore, to maintain safe operating temperatures for adjacent network hardware components, you can use the Rivacase 5557 Cooling Pad up to 17.3”. This keeps your entire data center workflow running smoothly around the clock.

Optimized Network Media Streaming

Turn your personal home network storage into an advanced multimedia streaming center for the entire family. The built-in 4K HDMI port allows you to connect the unit directly to a television or high-definition home theater setup.

Furthermore, the hardware processor supports smooth real-time transcoding of heavy video files. To route crisp digital audio and high-resolution video over long distances to your main media room, install the UGREEN 40105 4K HDMI Male to Male Cable Braided (15 Meter).

Energy-Efficient Home Server Architecture

Running a server around the clock can sometimes raise valid concerns regarding high electricity bills. However, this entry-level storage block features exceptional smart power management functions.

Specifically, the device draws a minimal 13.72W of electricity during intense read and write tasks. If you need to connect your display inside tight server enclosures, use the UNITEK 4K HDMI Cable 4K@60Hz (3 Meter) Right Angle 90° Cable to prevent strain.

Flexible Display Adaptations

Adapting to varied display hardware around your home server setup is simple. The advanced technical ports allow clean integration with legacy monitors and high-resolution screens alike.

Consequently, managing your server dashboards directly via standard video interfaces becomes completely hassle-free. For adapting compact, portable monitoring displays to your service unit, you can easily deploy the JSAUX Mini HDMI to HDMI Adapter 0.2m 4K@60Hz HDR.

Product Specifications

• Brand: UGREEN
• SKU Identifier: 95087
• Model Code: DH2300 (NASync Series)
• Drive Bays Architecture: Dual 2-Bay (SATA Interface)
• Maximum Capacity Support: Up to 64TB Total (2 x 32TB Drives – Diskless unit)
• Operating System Platform: UGOS Pro
• Processor (CPU): Rockchip A72+A53 8-Core Chipset clocked at 2.2GHz
• System Memory (RAM): 4GB LPDDR4X (On-Board layout)
• Flash Storage (System Disk): eMMC 32GB
• Supported RAID Topologies: JBOD, Basic, RAID 0, RAID 1

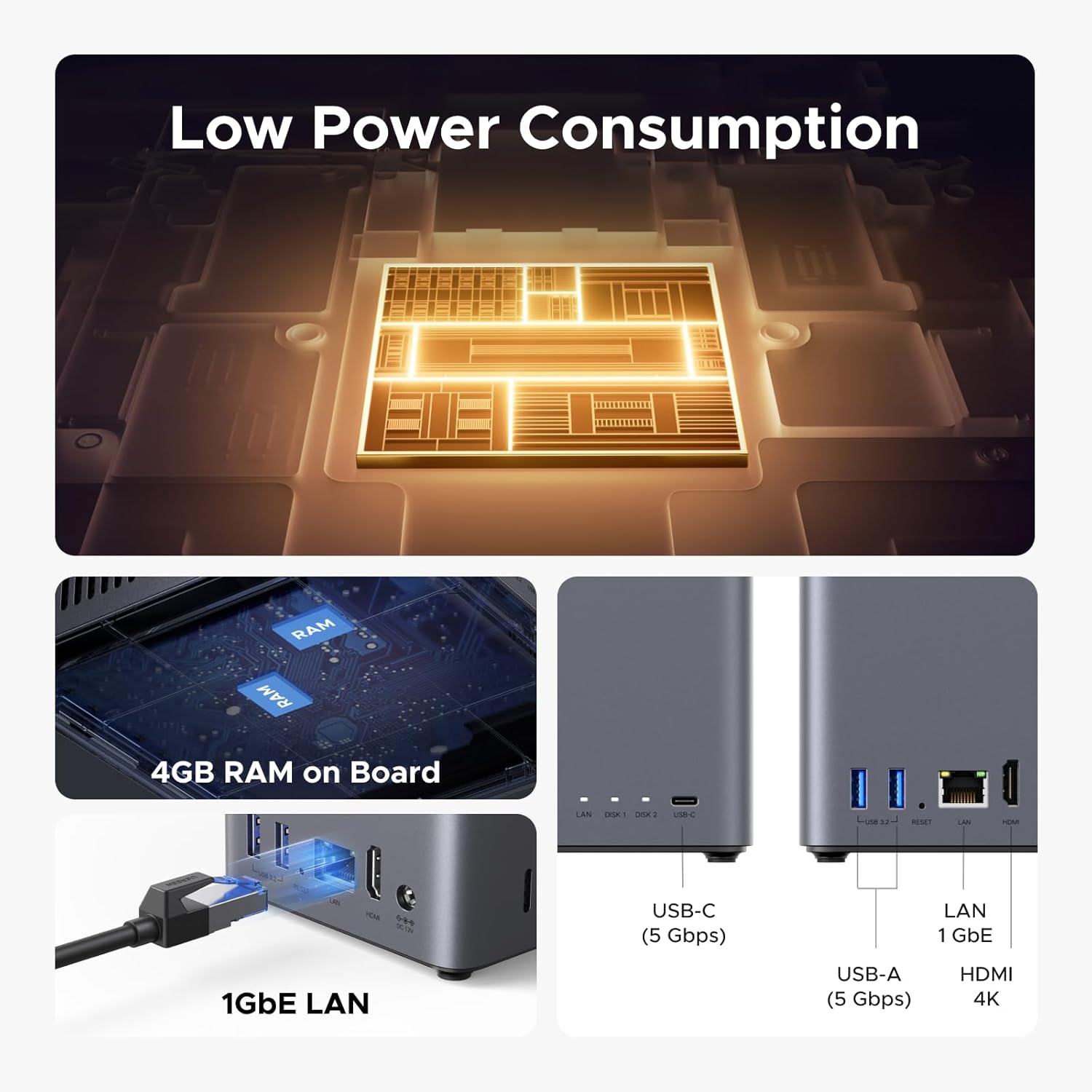

• Network Connectivity (LAN): 1 x 1GbE RJ45 Port

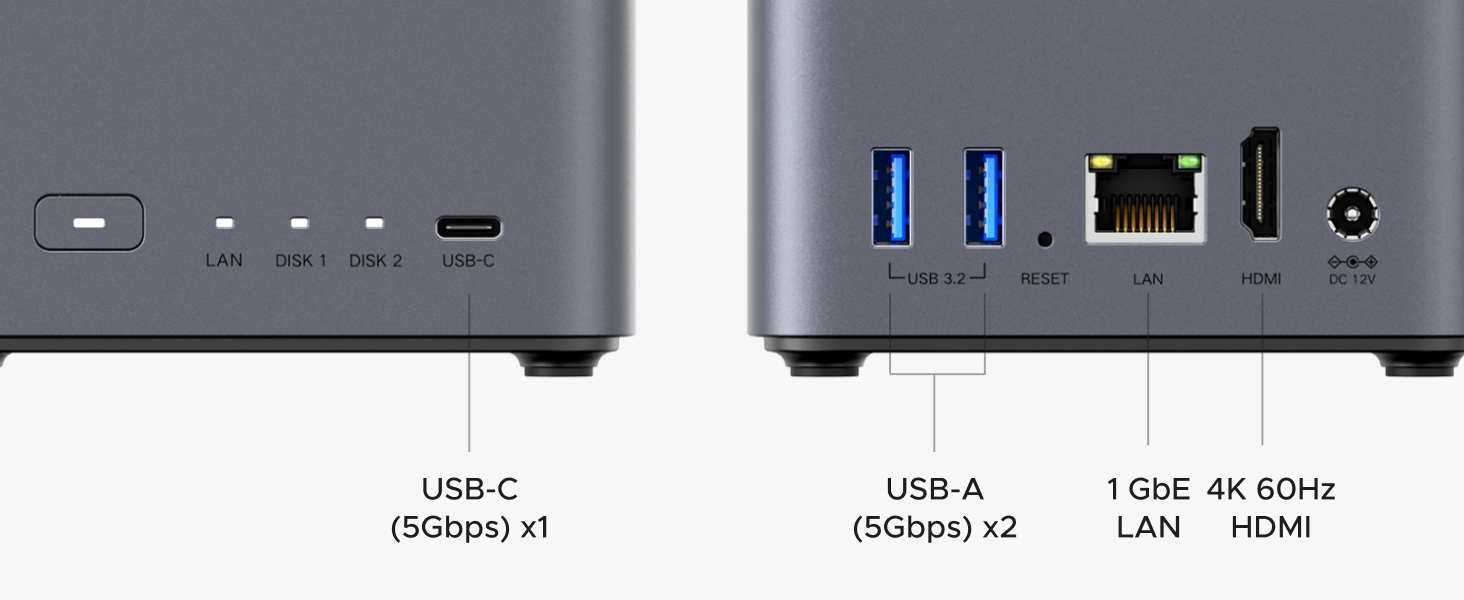

• Front Panel I/O Ports: 1 x USB-C (5Gb/s), 2 x USB-A (5Gb/s)
• Video Output: 1 x HDMI port supporting 4K @ 60Hz
• Physical Dimensions: 151mm x 98mm x 213.7mm
• Power Draw Metrics: 13.72W (Active Access) / 3.304W (Drive Hibernation)
• System UI Languages: English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語
• Warranty Coverage: 12 Months Official Warranty (Pakistan)

What’s in the Box

• 1 x UGREEN NASync DH2300 Enclosure (Diskless)
• 1 x Power Adapter Assembly (DC12V/6A)
• 1 x High-Speed Ethernet Cable (CAT 7)
• 1 x Dedicated Screws & Screwdriver Toolkit
• 1 x Comprehensive Quick-Start User Manual

Hard Drive Compatibility Reference List (1TB to 8TB models)

• Seagate Technology Compatible Models
• ST2000VN003 (2TB), ST4000VN008 (4TB), ST6000VN003 (6TB), ST8000VN004 (8TB)
• ST4000NE001 (4TB), ST8000NT001 (8TB)
• Western Digital (WD) Compatible Models
• WD10EFRX (1TB), WD20EFPX (2TB), WD30EFRX (3TB), WD40EFRX (4TB), WD60EFRX (6TB)
• WD20EFPX (2TB), WD40EFPX (4TB), WD80EFPX (8TB), WD80EFZZ (8TB)

Frequently Asked Questions

Q1: Is this NAS suitable for true beginners?

Yes, absolutely. The UGREEN DH2300 provides a simple, highly private way to store media. It is intuitive for users moving away from cloud storage or external drives. Furthermore, setting up the hardware does not require specialized technical expertise. To expand your physical wired connections across multiple server accessories, use the UNITEK 1-to-2 Gigabit Network Splitter.

Q2: What hard drives can I install in this network storage hub?

This system supports 3.5-inch and 2.5-inch SATA hard drives and SSDs from major brands like WD, Seagate, and Toshiba. For example, we recommend using dedicated NAS or enterprise-class drives. However, please remember that M.2 NVMe and SAS interface drives are not supported. For premium power management of your surrounding workspace gadgets, add the UGREEN 35186 UNO X662 QPai Robot 65W GaN Charger.

Q3: Does the retail box include hard drives?

No, this model ships as a diskless storage chassis. Therefore, hard drives are not included in the retail box and must be purchased separately. The system supports up to 2 distinct drives with a maximum capacity limit of 64TB. For adapting older office monitors nearby, you can use the UNITEK DisplayPort to HDMI Adapter 4K@30Hz.

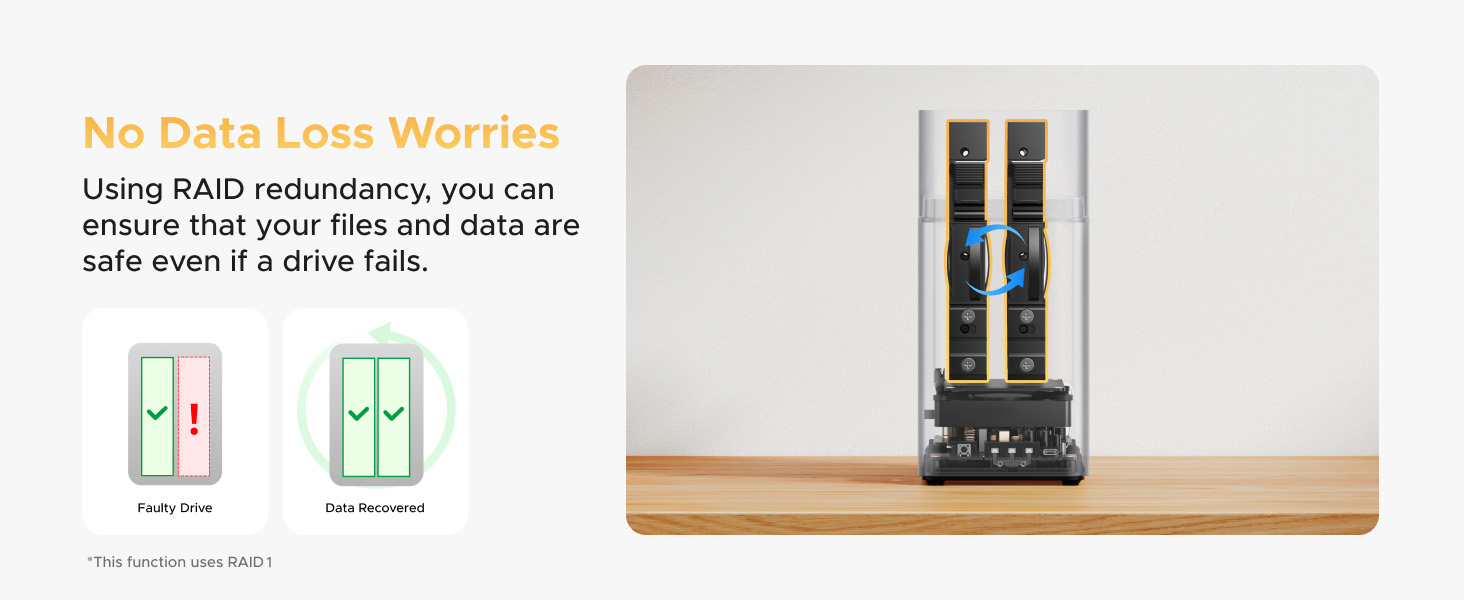

Q4: What internal RAID configurations are supported?

This entry-level network unit supports JBOD, Basic, RAID 0, and RAID 1 configurations. Specifically, we recommend using RAID 1 for standard data redundancy. If one drive fails unexpectedly, your data remains fully accessible on the remaining drive. For smooth control panel navigation on your configuration laptop, pair your setup with the Logitech M235 Wireless Mouse.

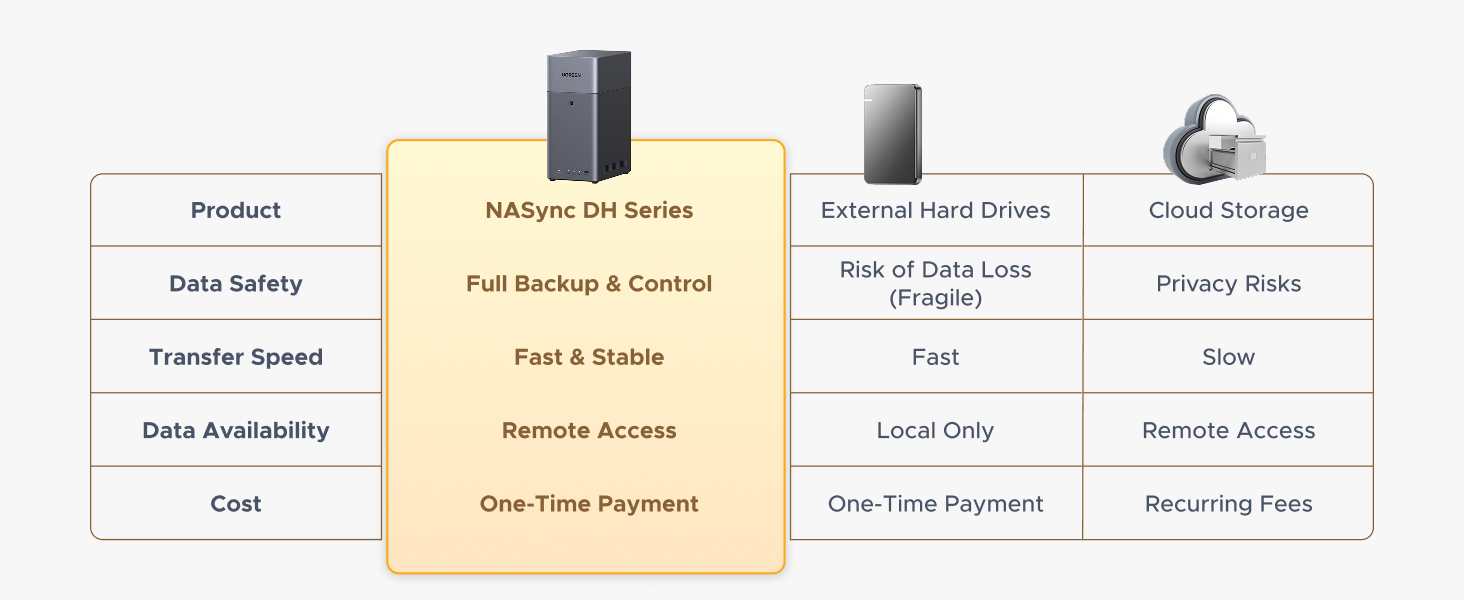

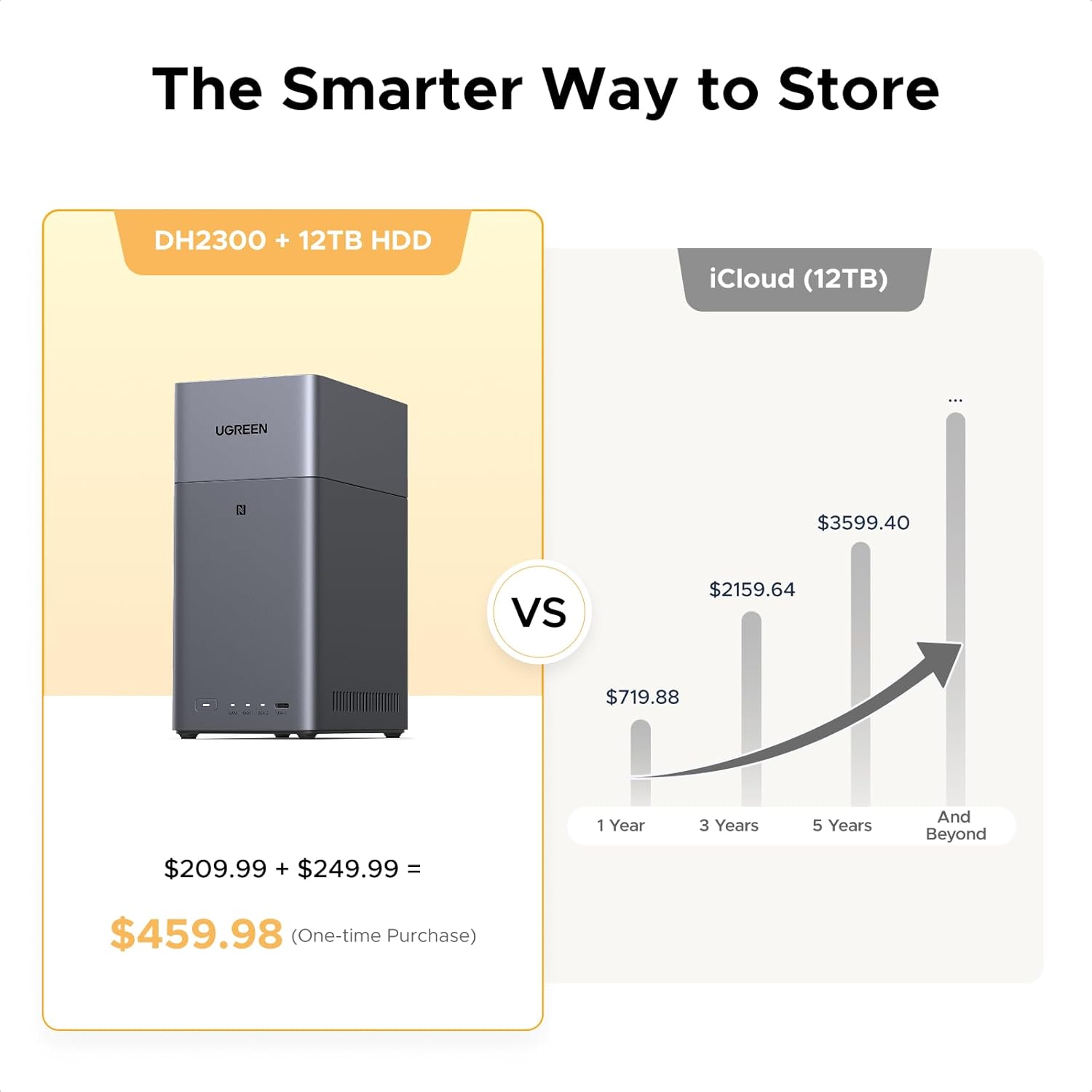

Q5: Is a personal NAS truly more affordable than cloud storage?

Yes, it is significantly cheaper over time. A personal NAS requires a single one-time purchase, whereas cloud storage plans demand recurring monthly subscription fees. For instance, a local NAS with matching drives cuts down recurring fees entirely. Consequently, you save thousands over 10 years. For more premium accessories and storage components, you can browse through the verified UNITEK 4K Wireless Screen Mirroring Device.

Q6: Can I run Docker or virtual machines on this specific model?

No, this entry-level model is designed for media sharing, photo organization, and data backup. Therefore, it does not support advanced tools like Docker containers or virtual machines. If you require advanced developer features, please consider higher-end options from the UGREEN NASync series.

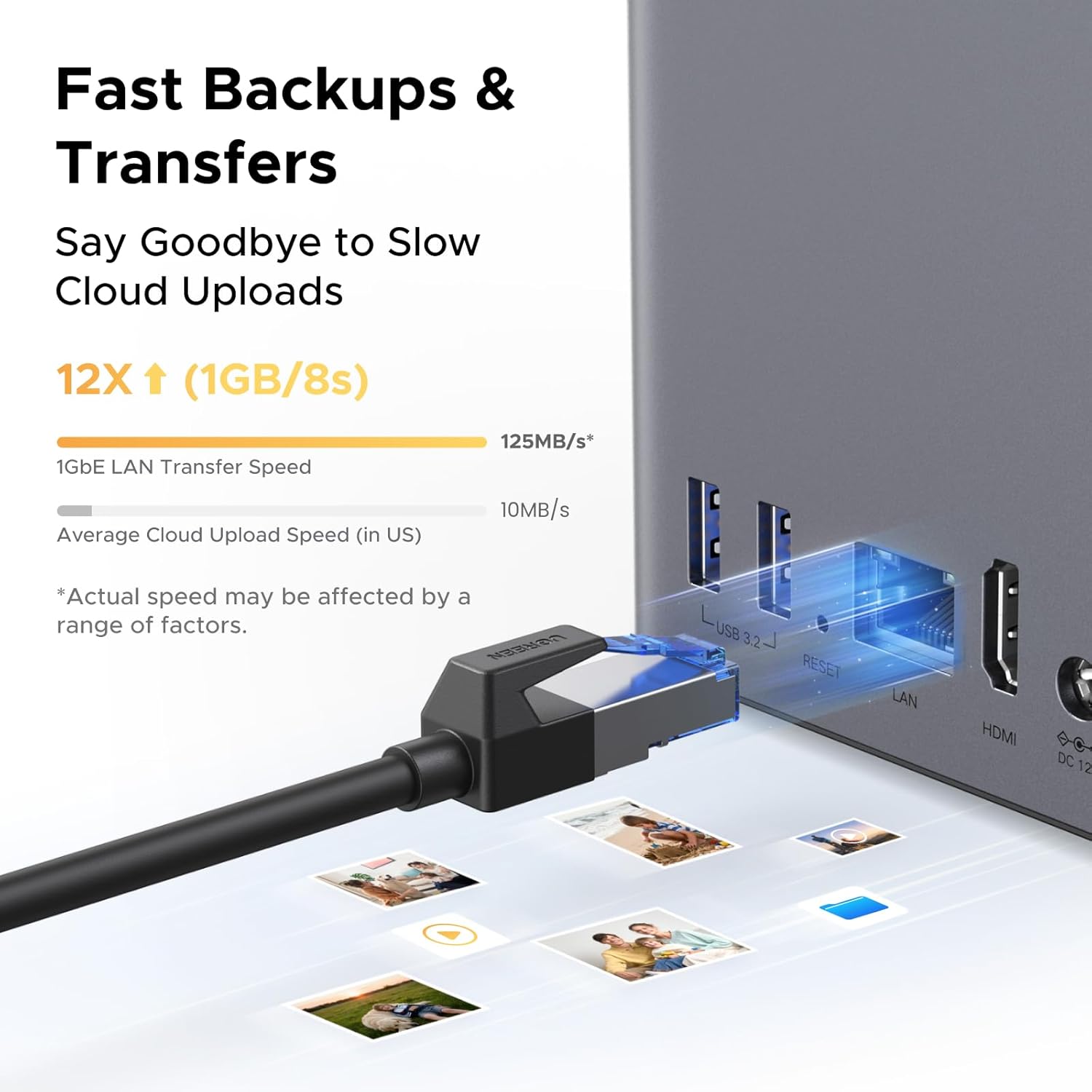

Q7: How fast will files transfer over my local network?

Local file transfers reach speeds up to 125MB/s over a standard connection. Consequently, a large 1GB movie file transfers completely in just 8 seconds. This performance easily beats typical cloud storage upload speeds, which frequently take over 100 seconds for the same file size.

Q8: How does the integrated AI photo organization assist users?

The internal software uses automated AI tools to index faces, geographic locations, text, and specific objects. Therefore, you can find specific images instantly using basic search terms. Furthermore, it automatically helps you find and delete identical files to clean up your drive space.

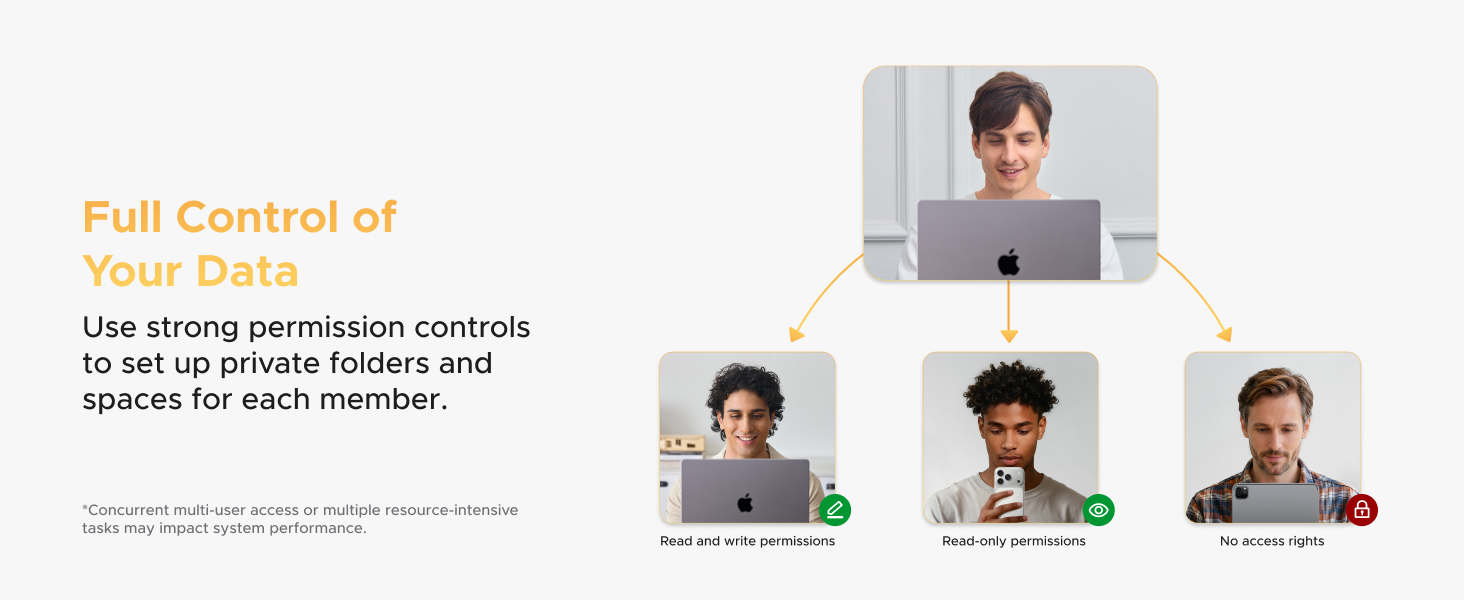

Q9: How safe is my data on this storage device?

Your files remain entirely on your physical drives, ensuring complete privacy. The system includes layered security protections like custom permissions, two-factor authentication, and encrypted data streams. Additionally, it features security certifications from TRUSTe and TÜV SÜD.

Q10: What does the brand warranty cover within Pakistan?

Every genuine UGREEN storage device includes a comprehensive 12-month warranty against manufacturing defects. This warranty period begins immediately on your date of purchase. Shop with complete confidence at UGREEN Pakistan for authentic products and professional support.
