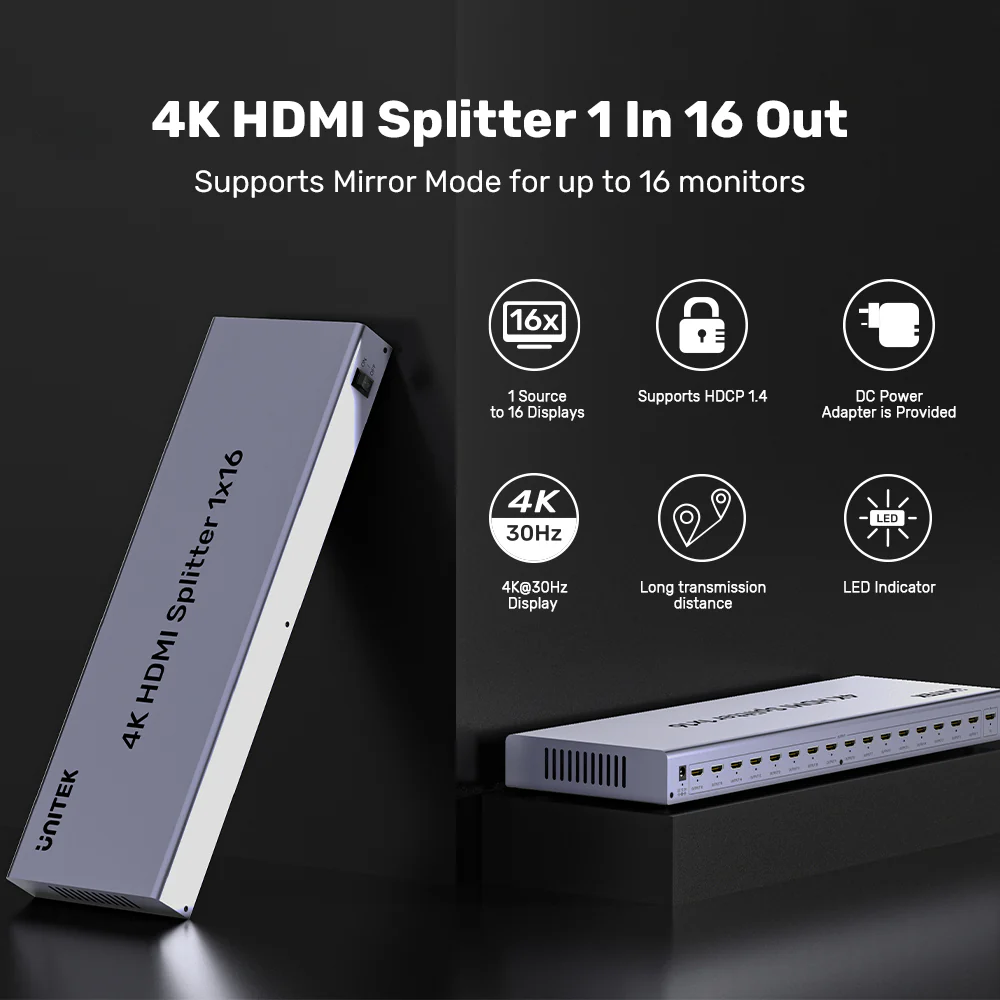

UNITEK HDMI Splitter 1 in 16 Out 4K@30Hz, Professional 16-Port Video Distributor for Digital Signage

UNITEK V1137AGY01-EU HDMI Splitter 1 in 16 Out 4K@30Hz, Professional 16-Port Video Distributor for Digital Signage, Presentations, Church, School, Multi-Screen Events

Command attention across every screen in the room with the UNITEK 1-in-16 HDMI Splitter. This industrial-grade video distribution unit is engineered for clarity, reliability, and scale, transforming one video source into a synchronized multi-display experience perfect for digital advertising, education, worship, and command centers.

Professional Power for Large-Scale Displays
First and foremost, this splitter solves the core challenge of content distribution. Whether you’re showcasing a keynote in a corporate conference room, streaming a service across a sanctuary, or managing a retail video wall, it ensures every screen shows perfectly synchronized, high-quality video and audio without lag or degradation.

Engineered for Distance and Expansion
Beyond basic splitting, its integrated signal amplifier combats signal loss over long cable runs, supporting 4K content up to 10 meters from source to splitter. Furthermore, the cascading feature is a game-changer for integrators, allowing you to build a tree of splitters and power virtually an unlimited array of displays from one source device. Ensure all your source media is stored on high-capacity UGREEN external drives.

Built for Demanding Environments

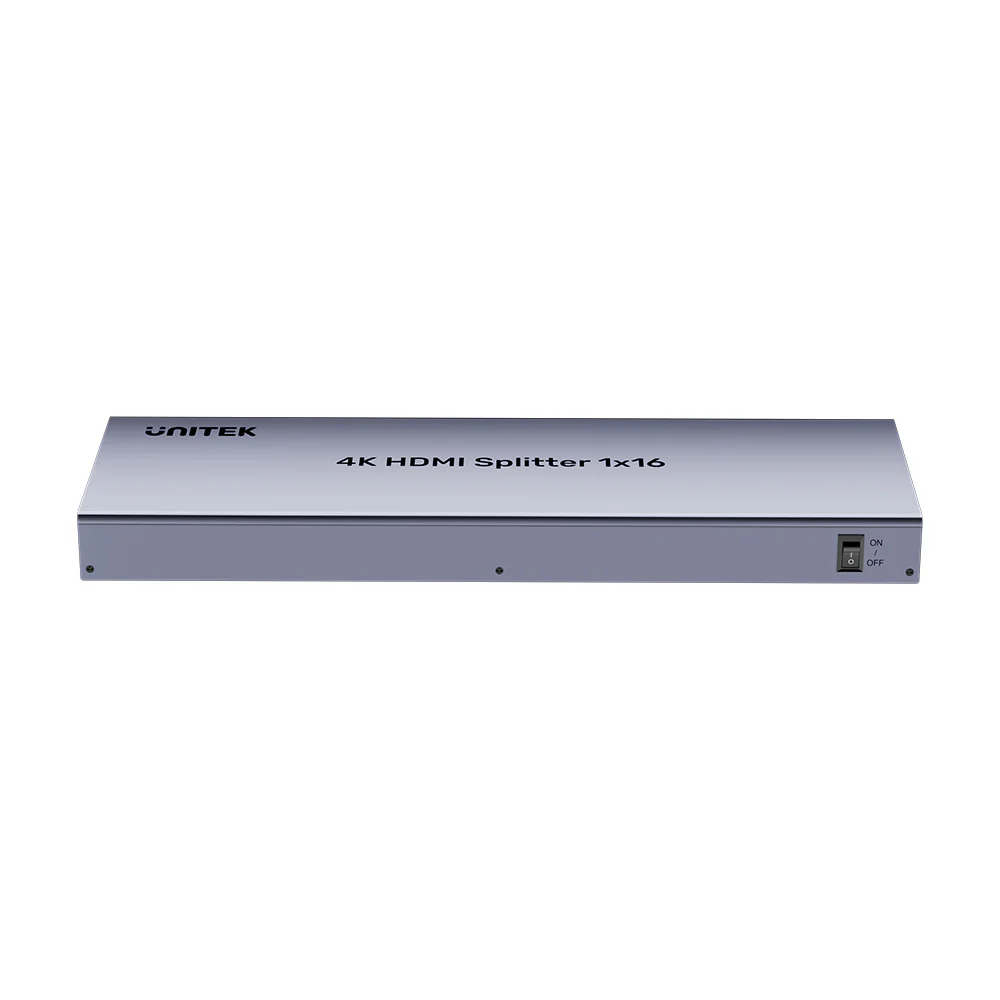

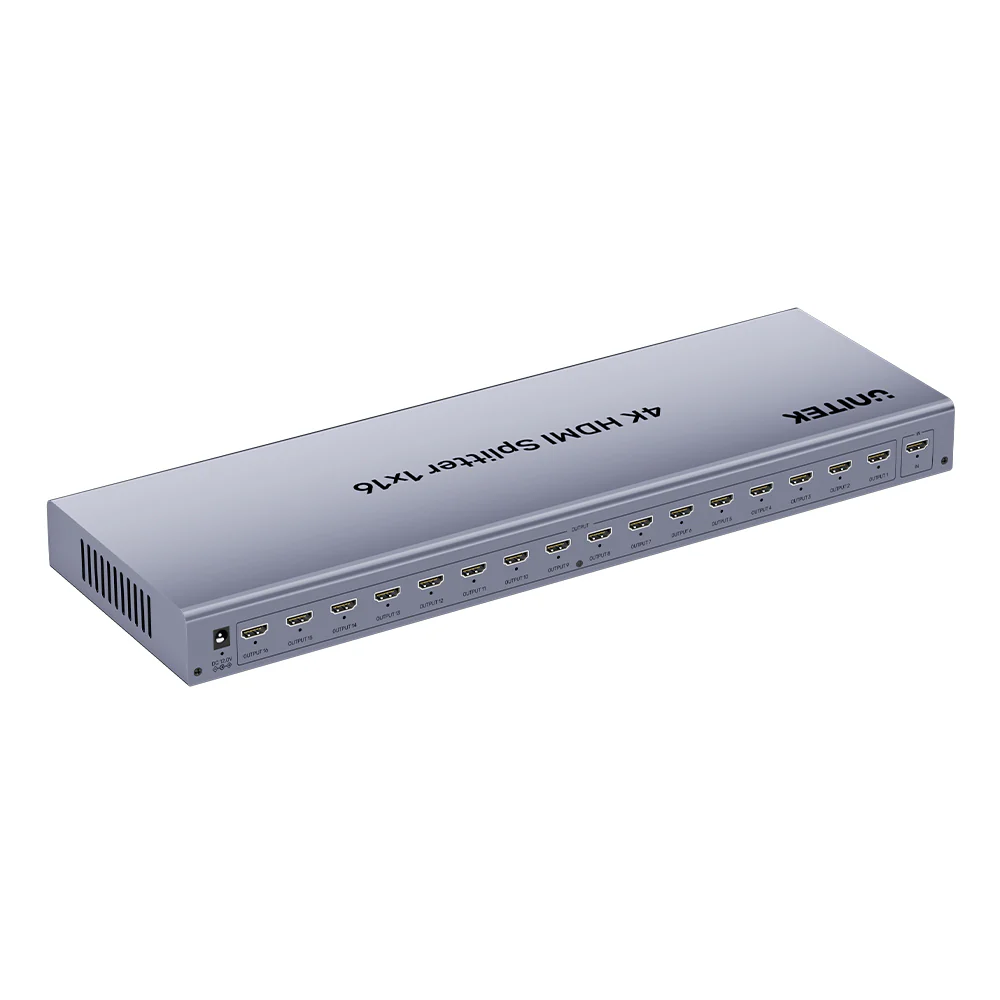

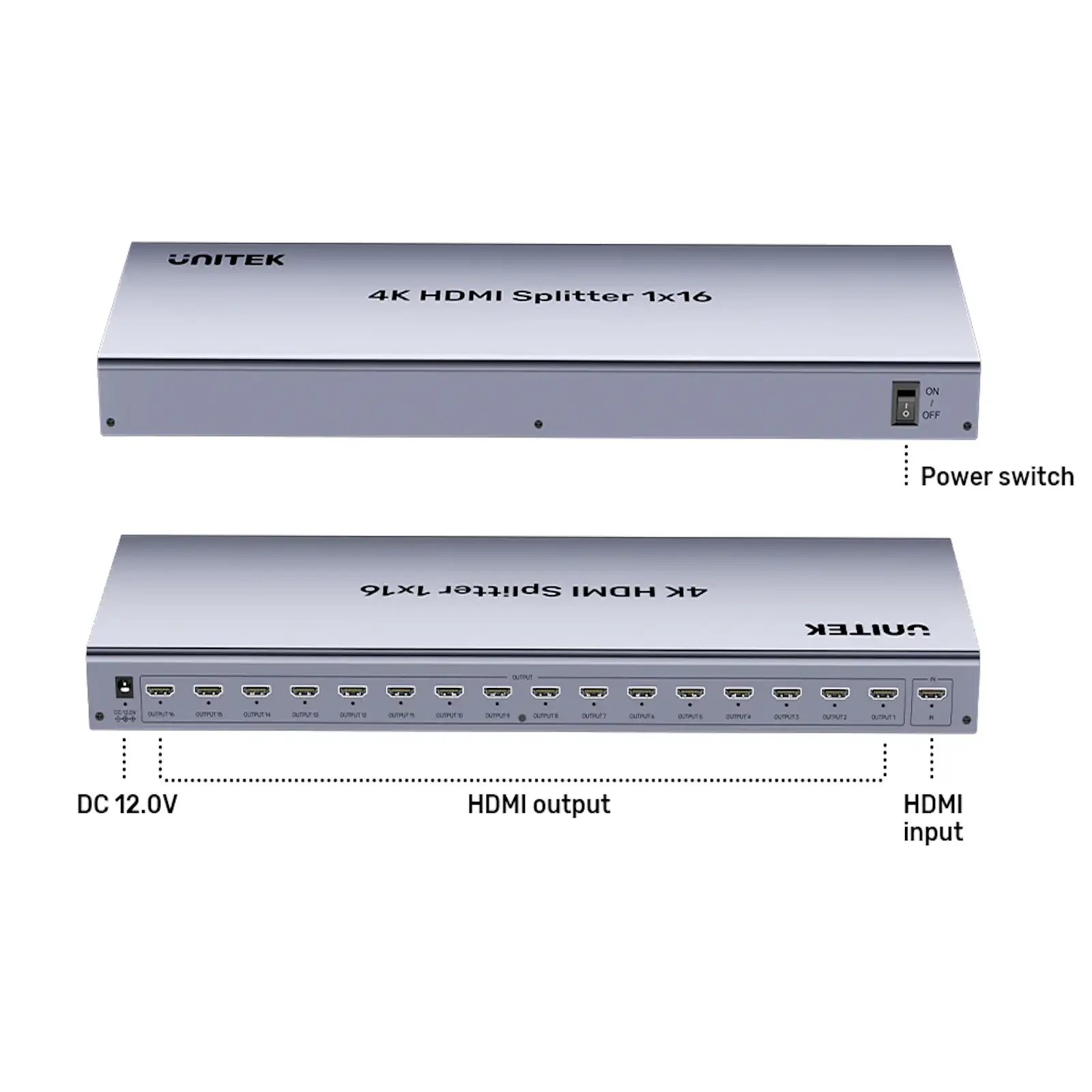

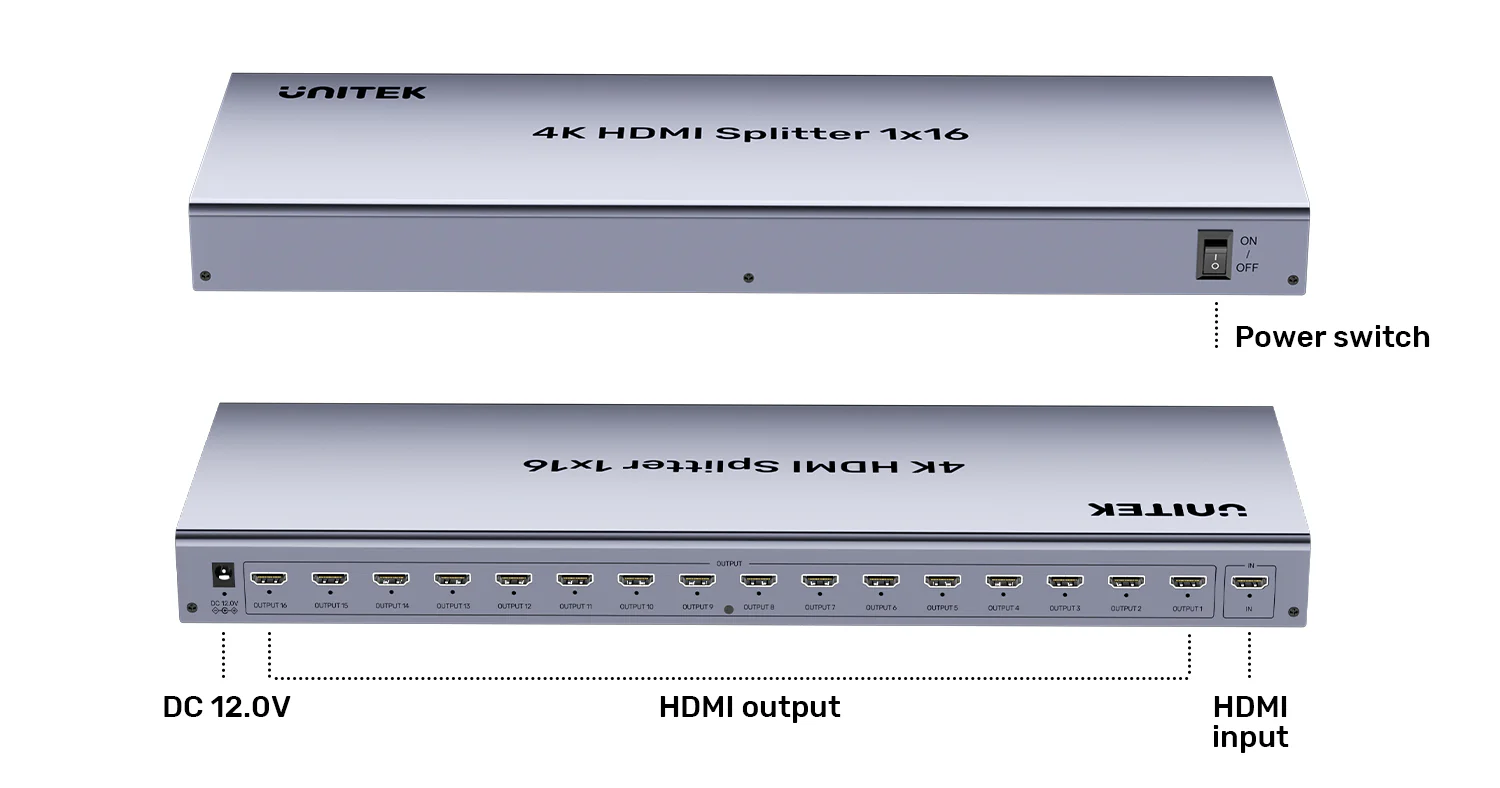

Encased in a durable metal chassis with comprehensive cooling, this splitter is built to operate reliably in always-on commercial installations. Its straightforward design—power switch, status LEDs, and 16 robust ports—makes it a trusted, set-and-forget component in any professional AV rack or installation setup.

Products Specifications:

• Model: UNITEK V1137AGY01-EU
• Function: HDMI Splitter / Distribution Amplifier (DA)
• Input Ports: 1 x HDMI 1.4b (Upstream)
• Output Ports: 16 x HDMI 1.4b (Downstream)
• Max Output Resolution: 4K@30Hz, 2K@60Hz, 1080p@60Hz
• HDCP Compliance: HDCP 1.4
• Cascading: Yes, Multi-Level Supported
• Signal Amplification: Built-in

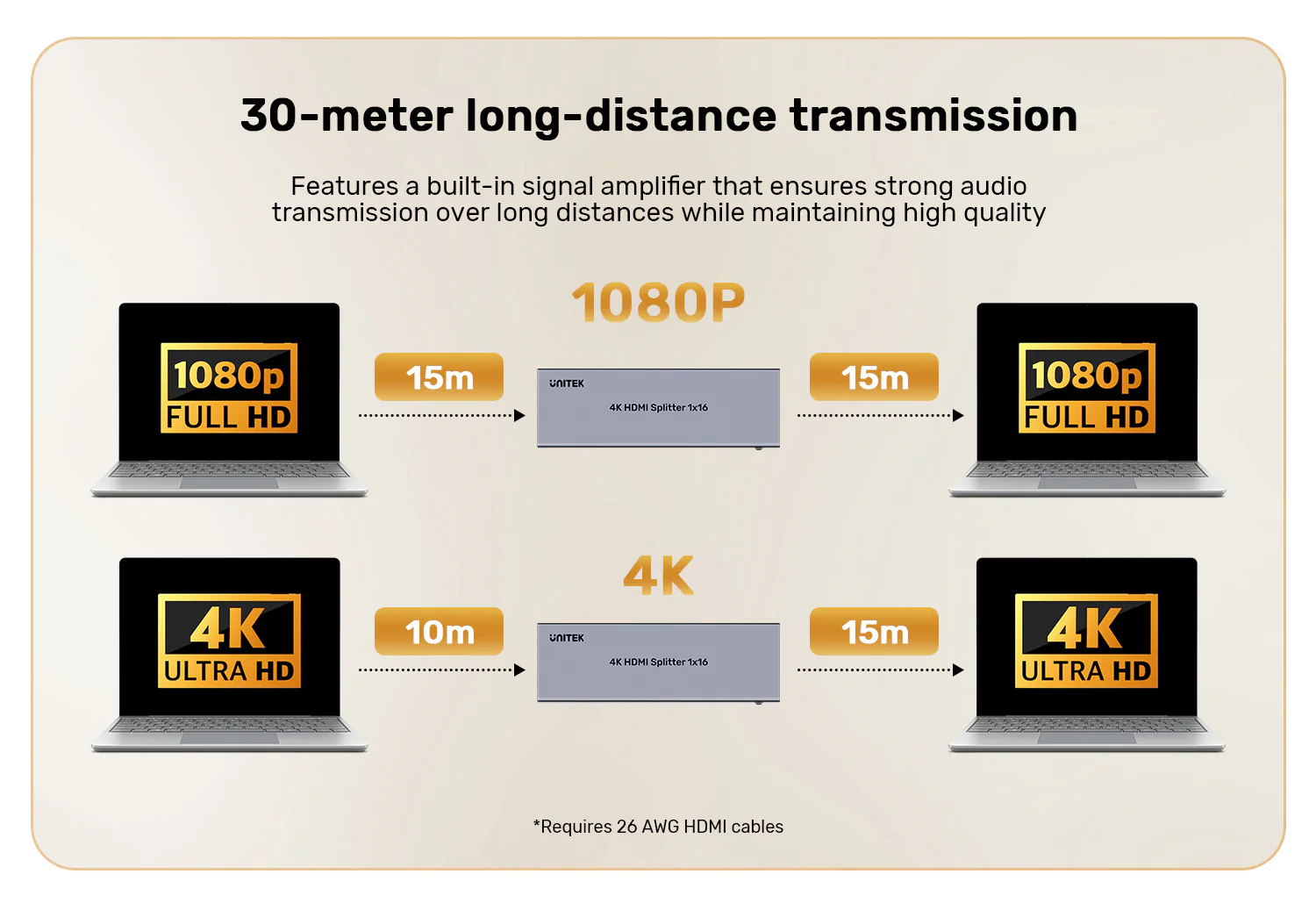

• Max Transmission Distance: 4K: 10m Input / 15m Output | 1080p: 15m Input / 15m Output*
• Power Supply: 12V/3A DC Adapter (Included)
• Enclosure: Metal
• Color: Space Grey

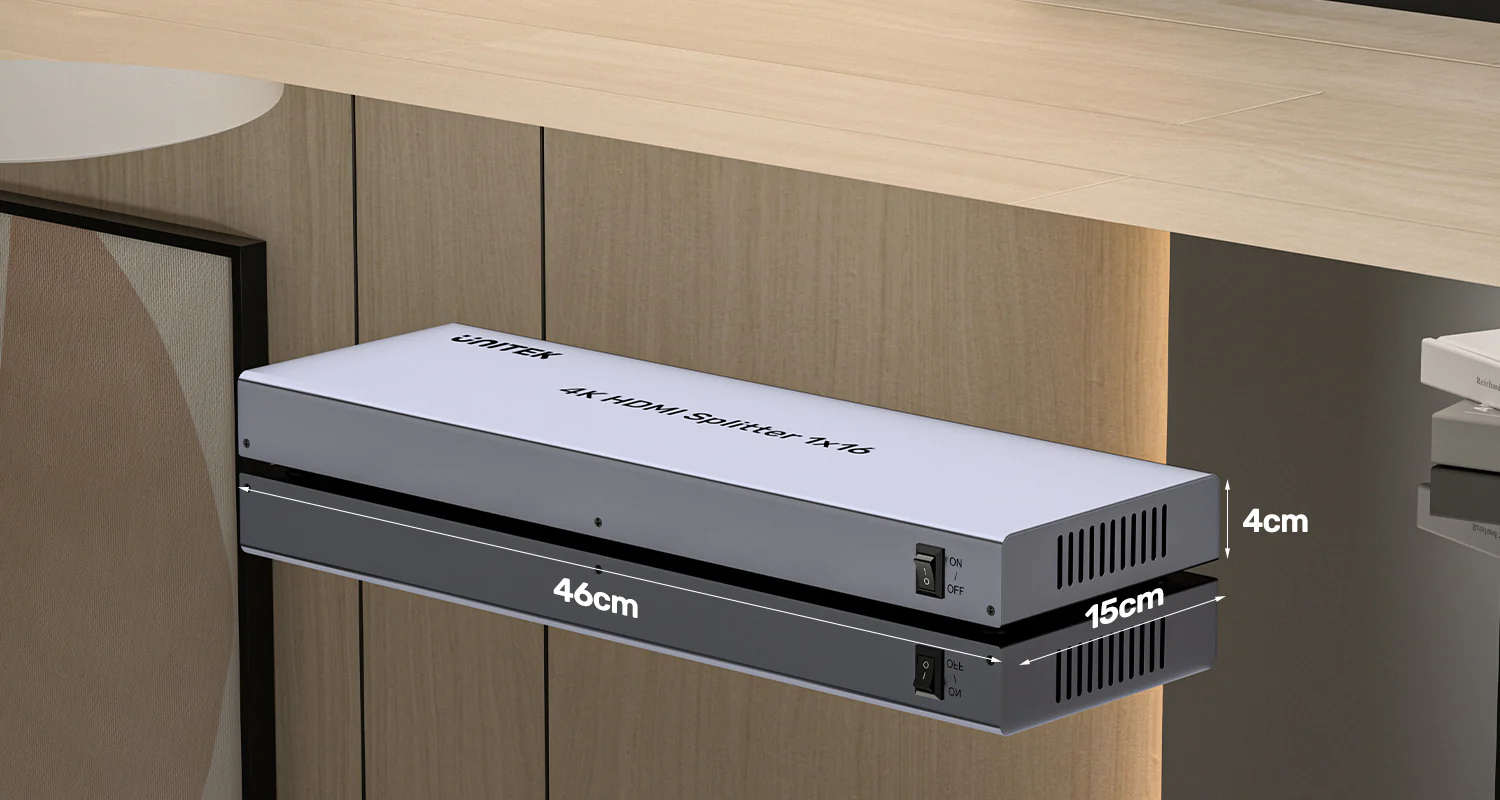

• Dimensions: 460mm x 150mm x 40mm
• Weight: ~2.5 kg

What’s in the Box?

• 1 x UNITEK 1-in-16 Out HDMI Splitter
• 1 x 12V/3A DC Power Adapter
• 1 x User Manual

10 FAQs:

1. Can all 16 outputs show 4K@30Hz at the same time?

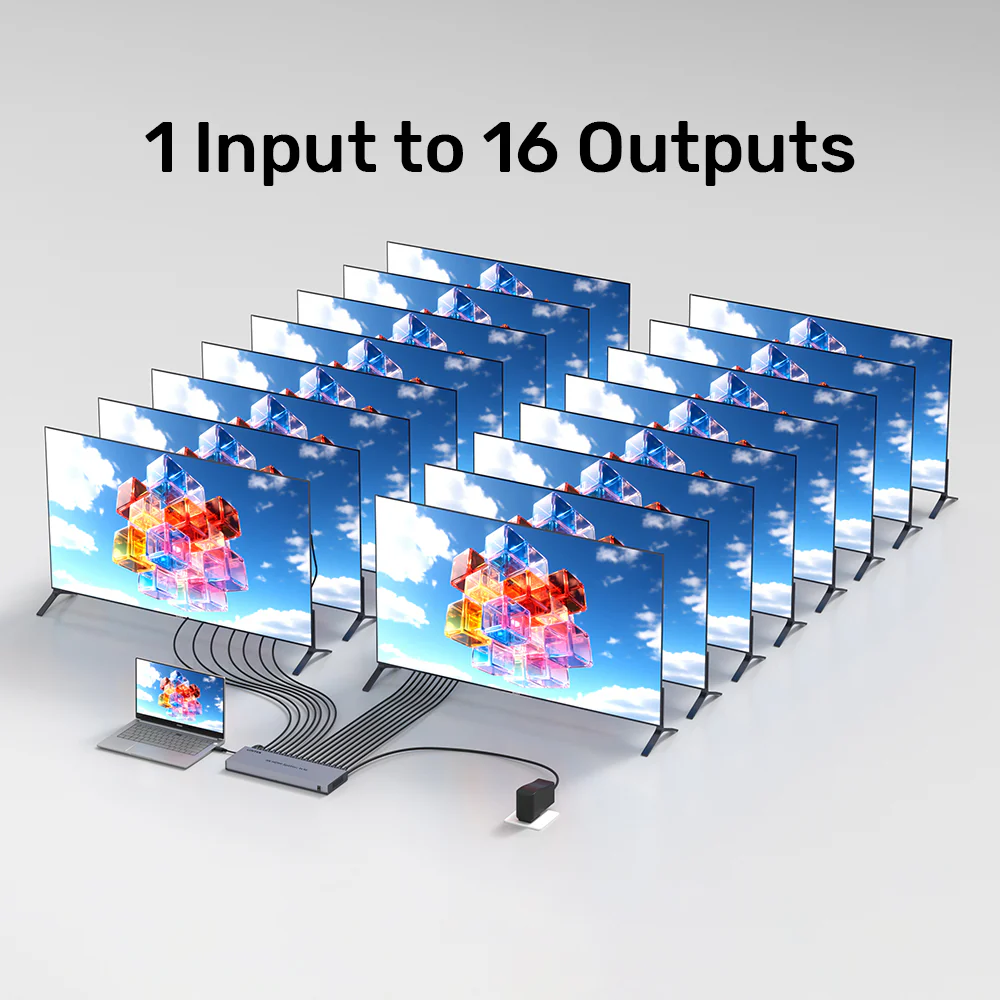

Yes, the splitter is designed to duplicate the input signal to all 16 outputs simultaneously at the maximum supported resolution of 4K@30Hz, provided your source device supports it.

2. Can I extend my desktop across the 16 monitors (one big desktop)?
No. This is a splitter/mirror device. It will show the exact same image on all connected displays. To create one large extended desktop across multiple monitors, you need a specialized video wall controller or a graphics card with multiple independent outputs.

3. What is “cascading” and how does it work?
Cascading means you can connect the output of one splitter to the input of another. For example, connect Splitter 1’s output to Splitter 2’s input. This allows you to drive 32, 48, or more displays from a single source.

4. What kind of HDMI cables should I use for 4K over 10 meters?
For reliable 4K transmission over the specified distances, we recommend using high-quality, certified High-Speed HDMI cables with Ethernet. For very long runs, consider active HDMI cables or fiber optic solutions.

5. Is the power adapter always required?
Yes, absolutely. The included 12V/3A (36W) power adapter is mandatory to provide enough stable power to amplify the signal for all 16 outputs. Do not attempt to use a lower-rated power supply.

6. Will it work with my PS5 or Xbox Series X for 4K/120Hz gaming?
No. This splitter supports HDMI 1.4 specifications, with a maximum of 4K@30Hz. Next-gen consoles require HDMI 2.1 for 4K@120Hz. This unit is designed for commercial video distribution, not high-refresh-rate gaming.

7. Does it support audio extraction or control?
It passes through the embedded audio signal (like Dolby Digital, DTS) from the source to all displays. It does not have a dedicated audio output port for extraction. Audio will play from each display’s speakers or audio output.

8. What is the typical use case for this splitter?
Typical applications include: Digital Signage in retail stores, Video walls in control rooms, Live event broadcasting to multiple monitors, Lecture capture in schools/universities, and Content distribution in houses of worship.

9. My source is only 1080p. Will it work?
Yes, it is fully backward compatible. It will accept a 1080p signal and distribute it perfectly to all 16 displays, potentially allowing for even longer cable runs.

10. Where can I get support for a large installation project?
For technical specifications, cascading diagrams, and support for commercial projects, please contact the official UNITEK Pakistan support team or your system integrator.
