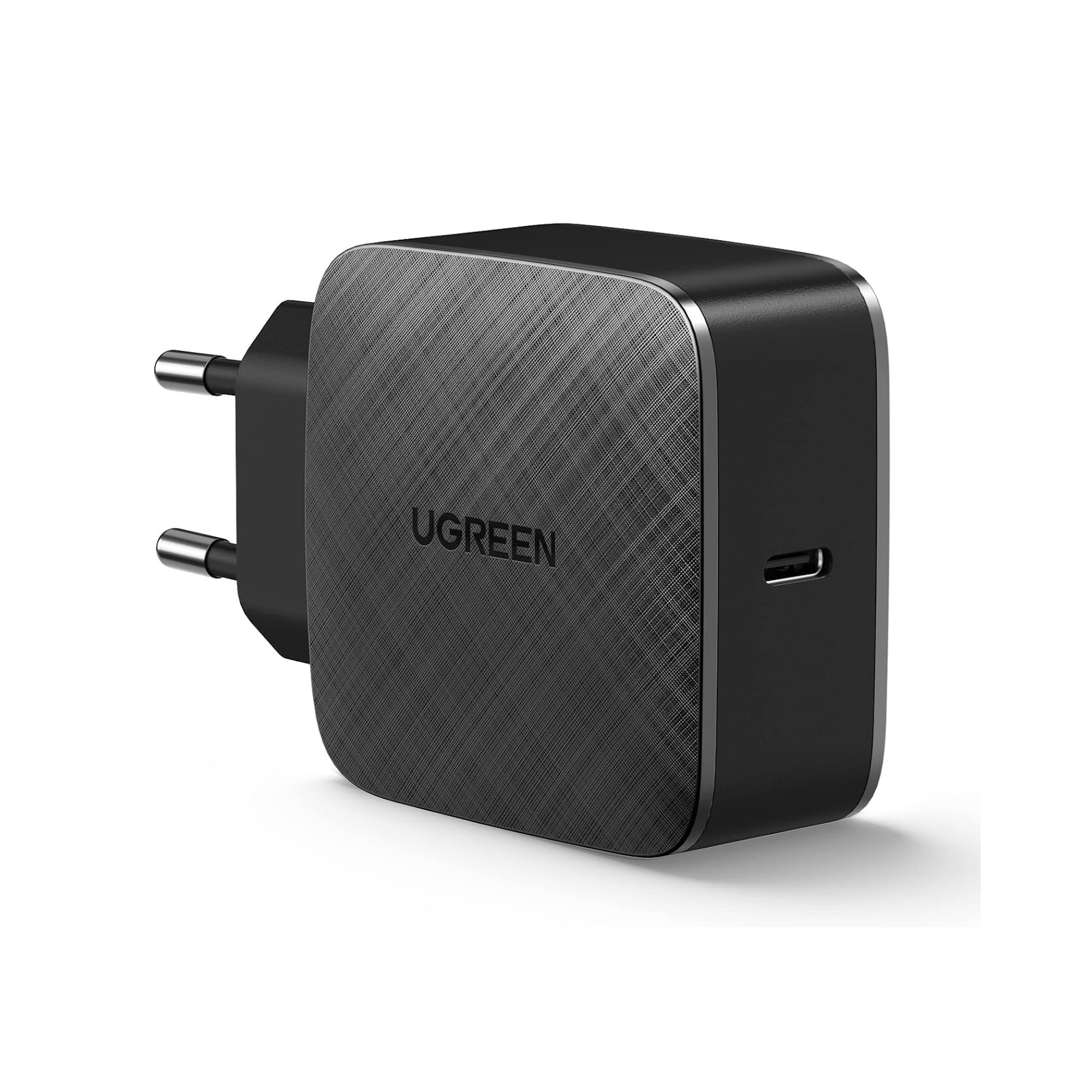

Product Specifications for UGREEN 70817 USB-C GaN 65W PD Fast Charger
Product Overview: Discover the UGREEN 70817 USB-C GaN 65W PD Fast Charger, an advanced and compact power solution designed for all your modern digital devices. Built with cutting-edge Gallium Nitride (GaN) technology, this high-performance 65w charger delivers lightning-fast charging speeds while maintaining a remarkably lightweight and travel-friendly footprint. Ideal for laptops, tablets, and smartphones, it ensures reliable, efficient, and intelligent power delivery for your everyday workflow.
Features & Specs - Connector Type: USB Type-C
Features & Specs - Compatible Devices: MacBook Pro, MacBook Air, iPad Pro, iPhone 13 / 12 / 11 series, Galaxy S21 / S10, Nintendo Switch, AirPods Pro
Features & Specs - Input Voltage: 100-240V ~ 50/60Hz 1.2A Max
Features & Specs - Output Power: 65W Maximum
Features & Specs - Output Voltage / Current: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A
Features & Specs - Power Source: AC Wall Outlet
Features & Specs - Power Plug Type: EU Plug
Features & Specs - Fast Charging Protocols: PPS, PD 3.0 / PD 2.0, QC 4.0+ / QC 4.0 / QC 3.0 / QC 2.0, AFC, FCP / SCP / SFCP, PE 2.0 / PE 1.1, BC 1.2
Features & Specs - PCBA Structure: Gallium Nitride (GaN) Technology
Features & Specs - Connectivity Technology: USB
Features & Specs - Special Features: Compact Design, Intelligent Chip Protection, Over-Voltage Protection, Short-Circuit Protection, Over-Temperature Protection, Over-Current Protection
Features & Specs - Material Composition: Flame-retardant PC / ABS Plastic
Features & Specs - Color: Black / White (Assorted)
Features & Specs - Charging Efficiency: High Efficiency with Low Energy Waste and Reduced Heat Generation
Features & Specs - Simultaneous Charging: Supports multi-device fast charging power management
Features & Specs - Port Count: Single USB-C Port
Features & Specs - Form Factor: Ultra-compact Wall Adapter
Features & Specs - Thermal Management: Advanced GaN Thermal Dissipation
Features & Specs - Energy Rating: Level VI Energy Efficiency
Features & Specs - Ripple and Noise: Low output ripple for device safety
Features & Specs - Frequency Range: 50Hz - 60Hz
Features & Specs - Maximum Output Current: 3.25A
Features & Specs - Power Factor: High Power Factor Correction
Features & Specs - Overload Protection: Automatic recovery mechanism
Features & Specs - Short Circuit Protection: Hiccup mode, auto-recovery upon fault removal
Features & Specs - Dielectric Strength: Primary to Secondary 3000VAC
Features & Specs - Insulation Resistance: 10M ohms minimum at 500VDC
Features & Specs - Operating Humidity: 5% to 95% Non-Condensing
Features & Specs - Storage Humidity: 5% to 95% Non-Condensing
Features & Specs - Output Interface Type: USB Type-C Female Port
Item details - Brand: UGREEN
Item details - Model Number: CD216
Item details - SKU: 70817
Item details - Manufacturer: UGREEN Group Limited
Item details - Categories: UGREEN > Chargers > Mobile & Laptop Chargers
Item details - Tags: 65w charger
Item details - Country of Origin: China
Item details - Item Model Number: 70817
Item details - Product Series: GaN Fast Charger Series
Measurements - Number of Items: 1
Measurements - Item Weight: 126g
Measurements - Unit Count: 1 Piece
Measurements - Product Dimensions: 52mm x 52mm x 32mm
Measurements - Package Dimensions: Compact Retail Box Packaging
Additional details - Color: Matte Finish
Additional details - Enclosure Material: High-Grade Polycarbonate
Additional details - Form Factor: Wall Charger Plug
Additional details - Style: Modern Minimalist
Additional details - Theme: Travel & Productivity
Additional details - Finish Type: Smooth Matte Texture
User guide - Usage Instructions: Plug the charger directly into a standard 100-240V wall socket, then connect your compatible USB-C charging cable to the device.
User guide - Installation: Plug and Play setup requiring no additional tools or drivers.
User guide - Care Instructions: Disconnect from power outlet when not in use for extended periods. Keep away from water and high-humidity environments.
User guide - Safety Warnings: Do not open, disassemble, or expose the charger to extreme heat or open flames. Ensure compatible voltage matches input specifications.
User guide - Maintenance: Clean gently with a dry, soft cloth. Avoid liquid cleaners or chemical solvents.
User guide - Certification: CE, FCC, RoHS Compliant
User guide - Compatibility Notes: Requires a certified USB-C to USB-C cable supporting USB Power Delivery for optimal 65W fast charging performance.
User guide - Operating Temperature: 0ยฐC to 35ยฐC (32ยฐF to 95ยฐF)
Use Cases - Best For: Fast charging USB-C enabled laptops, tablets, and smartphones simultaneously or individually.
Use Cases - Ideal Scenarios: Daily office work, remote working, traveling, and home multi-device charging setups.
Use Cases - Target Audience: Professionals, students, Apple ecosystem users, and tech enthusiasts.
Use Cases - Compatible With: MacBook Pro, MacBook Air, iPad Pro, iPhone 13/12 series, Galaxy S-series, and various USB-C PD protocol devices.
Use Cases - Not Recommended For: Devices requiring proprietary non-standard charging voltages exceeding 65W capacity.
Pros & Cons - Pros: Advanced GaN technology ensures compact size and lightweight build (only 126g).
Pros & Cons - Pros: High 65W power output capable of fast charging MacBook Pro 13 inches in about 1.8 hours.
Pros & Cons - Pros: Supports a wide range of fast charging protocols including PD 3.0, QC 4.0/3.0, and PPS.
Pros & Cons - Pros: Built-in intelligent chip protection against short-circuit, overvoltage, overheating, and overcurrent.
Pros & Cons - Pros: Significantly reduced energy waste and lower heat generation compared to standard silicon chargers.
Pros & Cons - Cons: Features only a single USB-C output port.
Pros & Cons - Cons: EU plug type may require a travel adapter in non-EU regions.
Pros & Cons - Cons: Charging cable sold separately in certain packaging configurations.
Box Contents - Main Unit: 1 x UGREEN 70817 65W GaN Fast Wall Charger
Box Contents - Cables: Not Included (Sold Separately)
Box Contents - Adapters: Built-in EU Plug
Box Contents - Documentation: User Manual and Instruction Guide
Box Contents - Warranty Card: Included in documentation booklet
Warranty & Support - Warranty Period: 1 Year Manufacturer Warranty
Warranty & Support - Warranty Type: Replacement or Repair Warranty
Warranty & Support - Coverage: Defects in materials and workmanship under normal use
Warranty & Support - Support Contact: Available via official UGREEN customer service channels
Warranty & Support - Return Policy: Standard store return policy applies
Warranty & Support - Customer Service Hours: Monday through Friday, standard business hours
Warranty & Support - Service Locations: Authorized regional service centers
