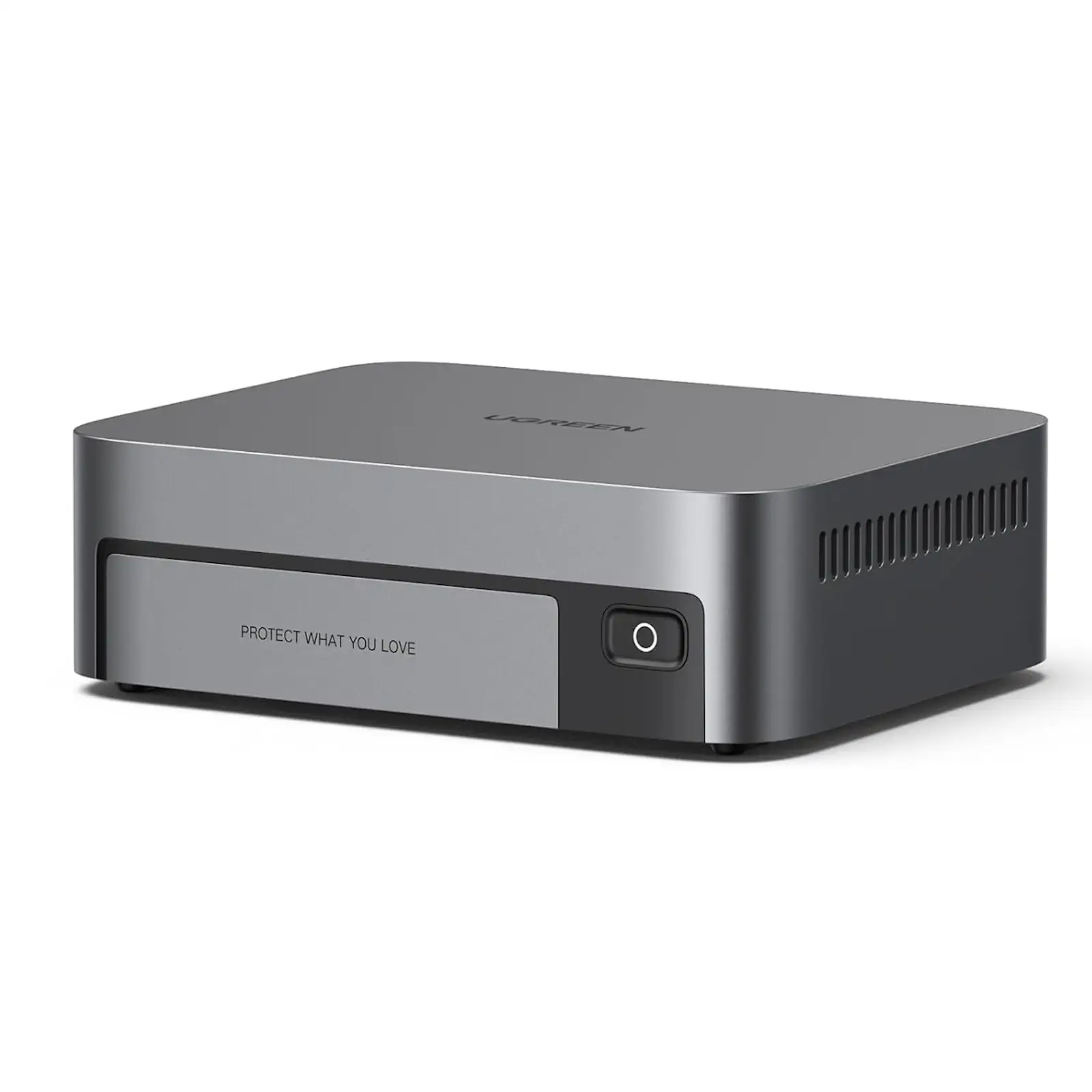

UGREEN 25891 NASync DXP480T Plus 4-Bay All-Flash SSD NAS (Diskless)

UGREEN 25891 NASync DXP480T Plus 4-Bay All-Flash SSD NAS – Intel i5-1235U, 8GB DDR5, 128GB SSD, 10GbE, Wi-Fi 6, 4x M.2 NVMe, Thunderbolt 4 | Network Attached Storage (Diskless)

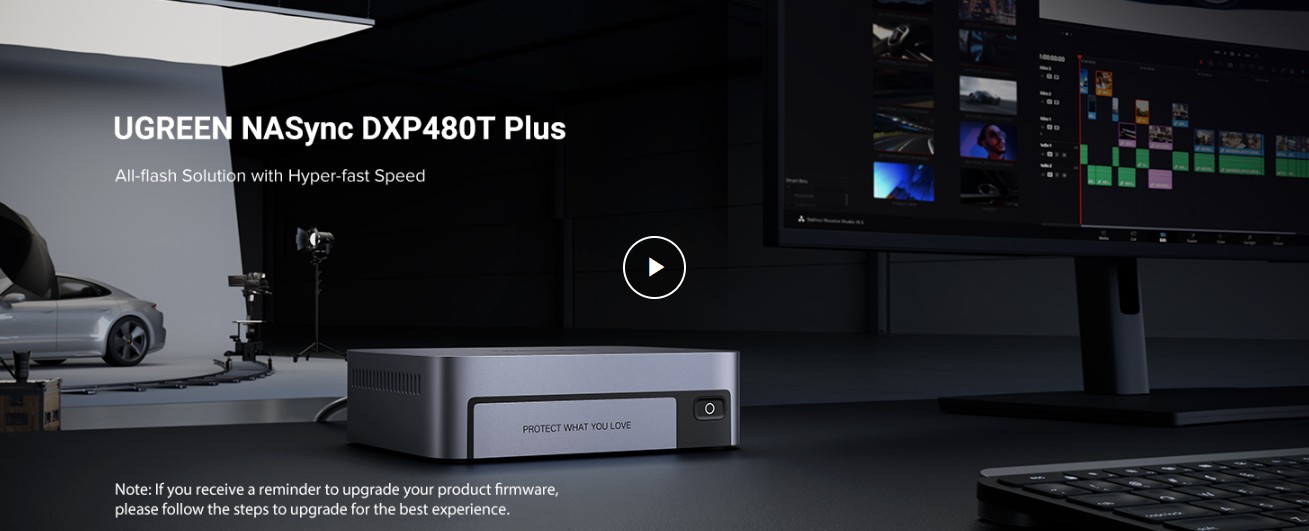

Step into the future of storage performance with the UGREEN NASync DXP480T Plus, the world’s first all-flash 4-bay M.2 NVMe NAS. Designed for professionals who demand maximum speed, this compact powerhouse is perfect for video editors, data scientists, and businesses that cannot afford to wait.

Harnessing the raw power of a 12th Generation Intel Core i5-1235U processor and four M.2 NVMe slots, this NAS delivers transfer speeds that obliterate traditional hard drive-based systems. The result is instantaneous file access, seamless real-time collaboration on large projects, and the ability to handle massive datasets without breaking a sweat. With a maximum capacity of 32TB, it offers ample space for your most critical projects and media libraries.

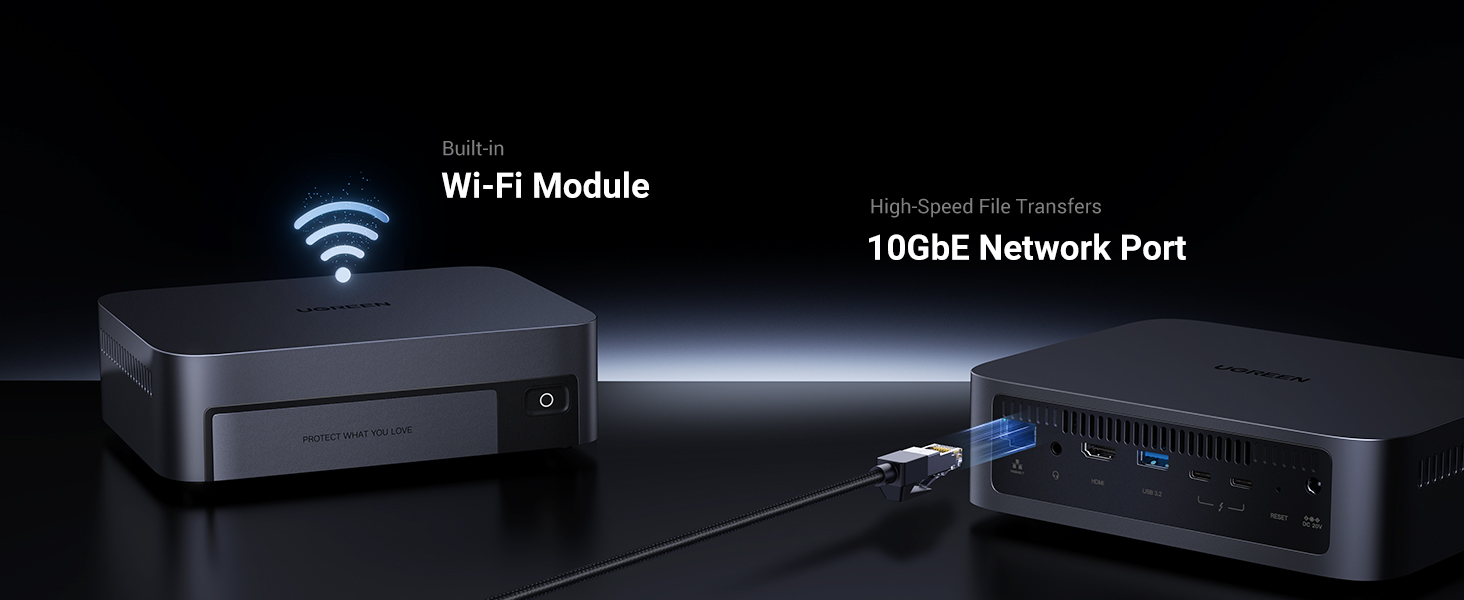

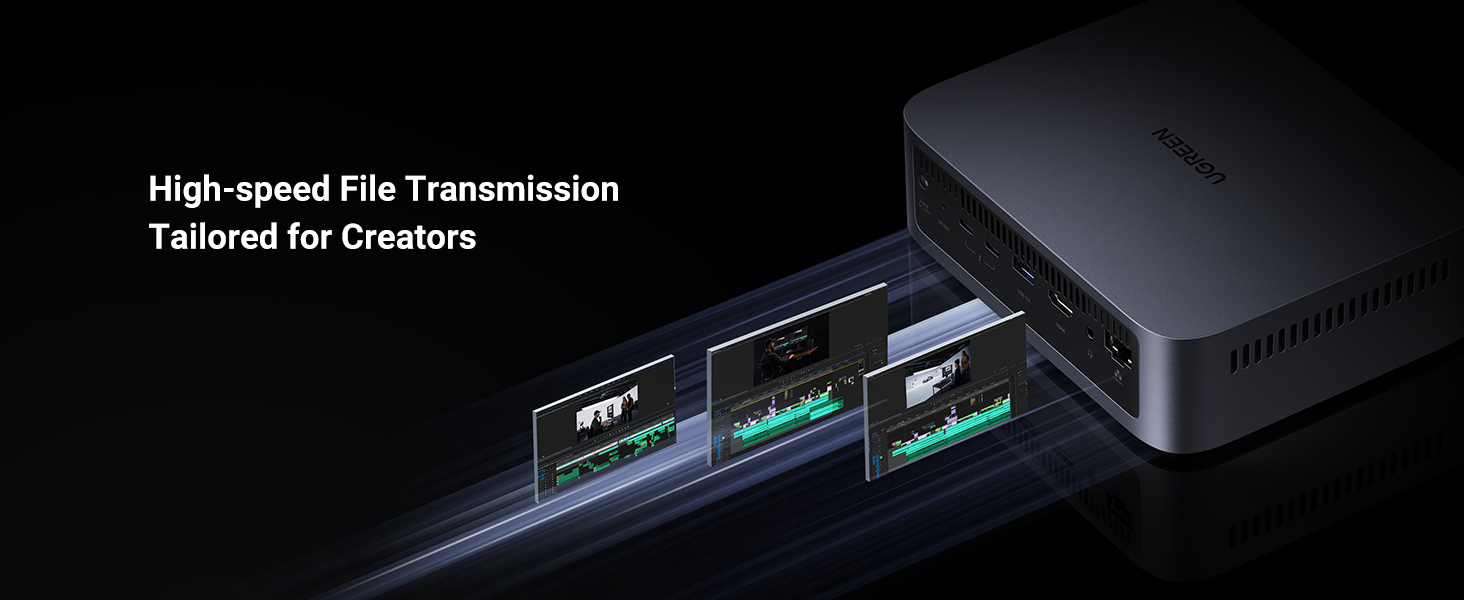

Connectivity is at the heart of its design. The 10GbE Ethernet port ensures the network is never a bottleneck, while the built-in Wi-Fi 6 provides the freedom of a high-speed wireless setup. For the ultimate low-latency connection, the dual Thunderbolt 4 ports offer a direct 40Gbps pipeline to your computer, ideal for connecting a Thunderbolt dock. The 8GB of DDR5 memory ensures smooth multitasking and can be expanded to 64GB for even more demanding workloads.

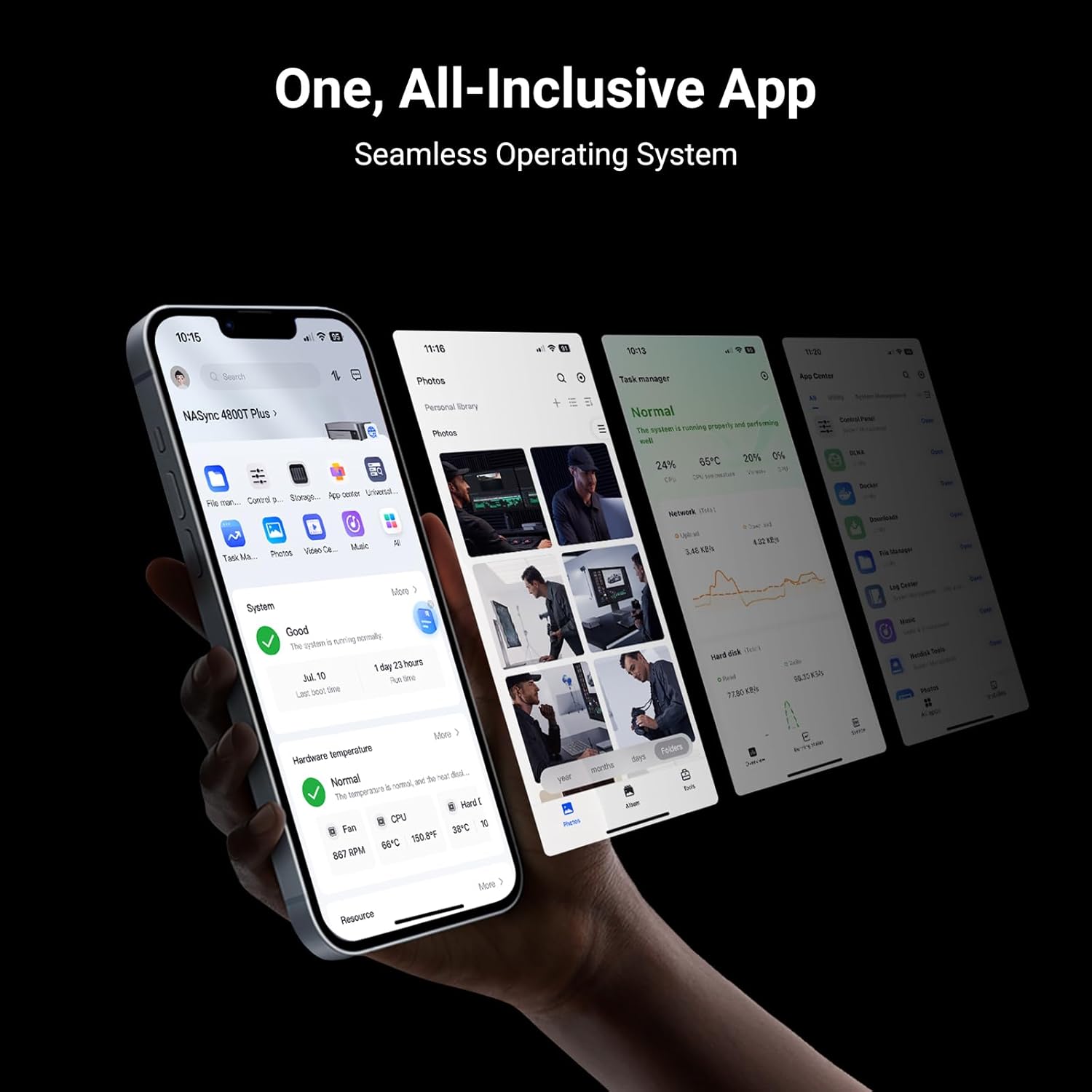

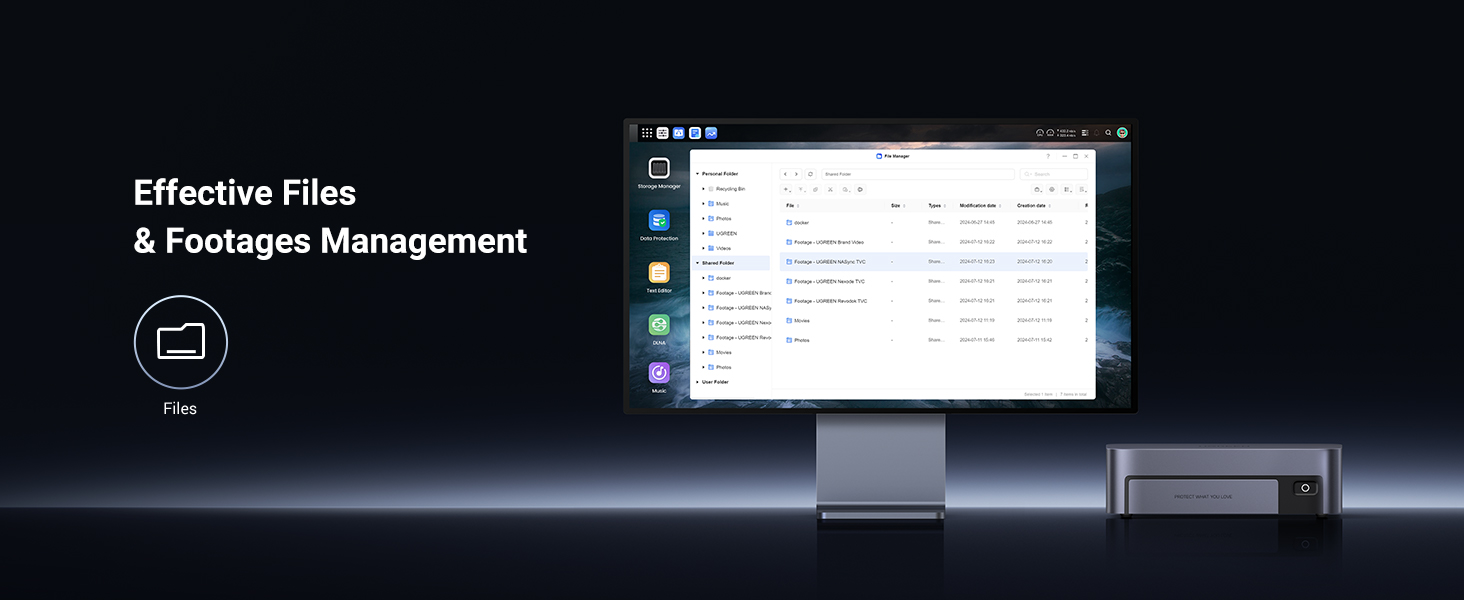

Operating on UGOS Pro, the unified NAS App puts complete control at your fingertips, from managing RAID arrays to enjoying the intelligent AI Photo Album. Unlike cloud storage, your data remains securely on your local device, protected by professional encryption. For optimal performance, install high-performance NVMe SSDs and pair it with a 10GbE switch for a flawless creative workstation experience.

Products Specifications:

1. General Information
   • SKU: 25891
   • Model: DXP480T Plus
   • Supported Languages: English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語
   • Operating System: UGOS Pro
2. Processor & Performance
   • CPU Model: Intel Core i5-1235U
   • CPU Brand & Architecture: Intel X86 12th Generation Intel® Core™ i5
   • CPU Cores/Threads: 10 Cores, 12 Threads
   • Memory (RAM): 8GB DDR5
   • Expandable RAM: Supported, up to a maximum of 64GB
   • ODECC: Supported
   • Flash Memory (System Disk): 128GB SSD
3. Storage & Expansion

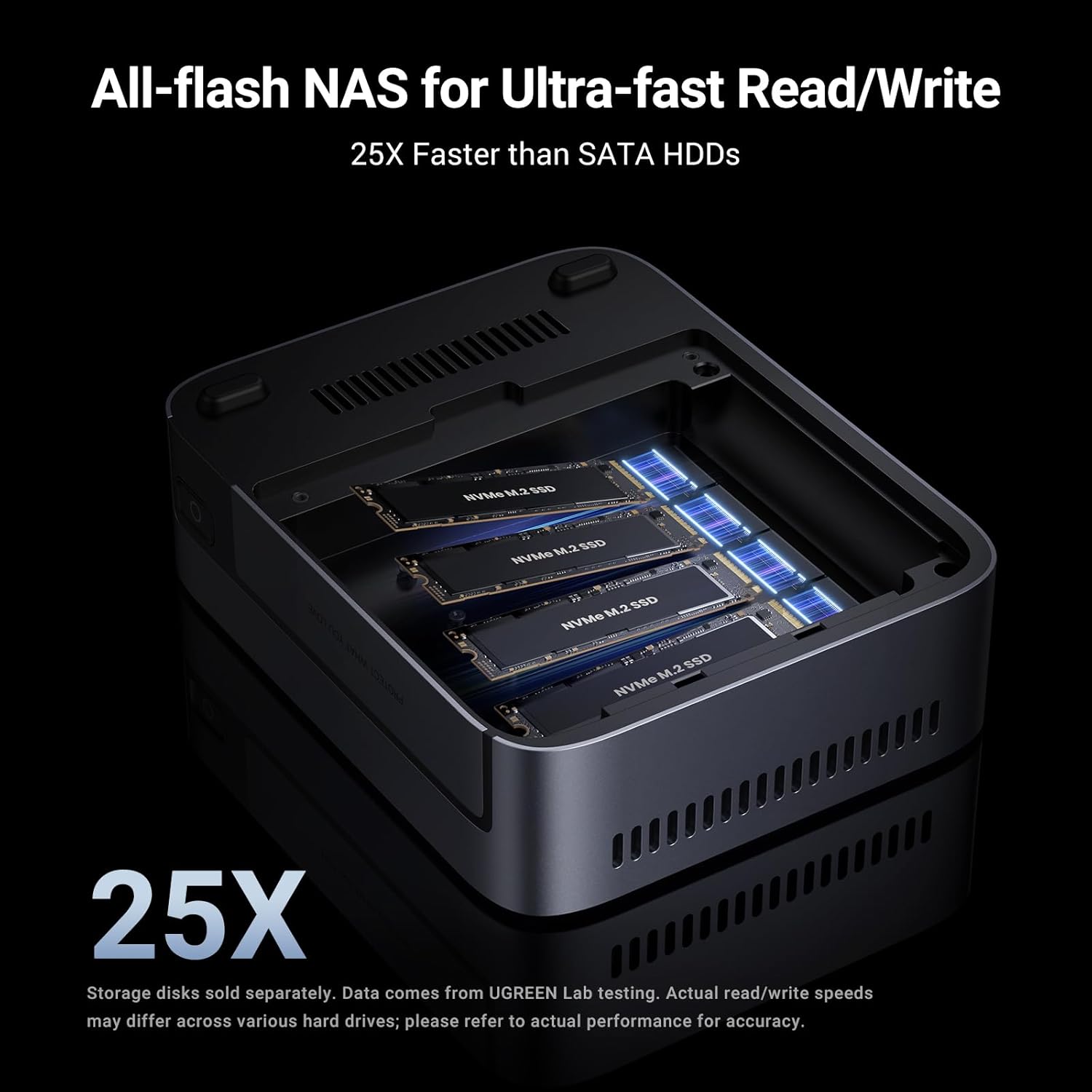

   • Drive Bays: 4 Slots for M.2 NVMe SSDs
   • SATA Drive Bays: Not Available
   • Supported RAID Modes: JBOD, Basic, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

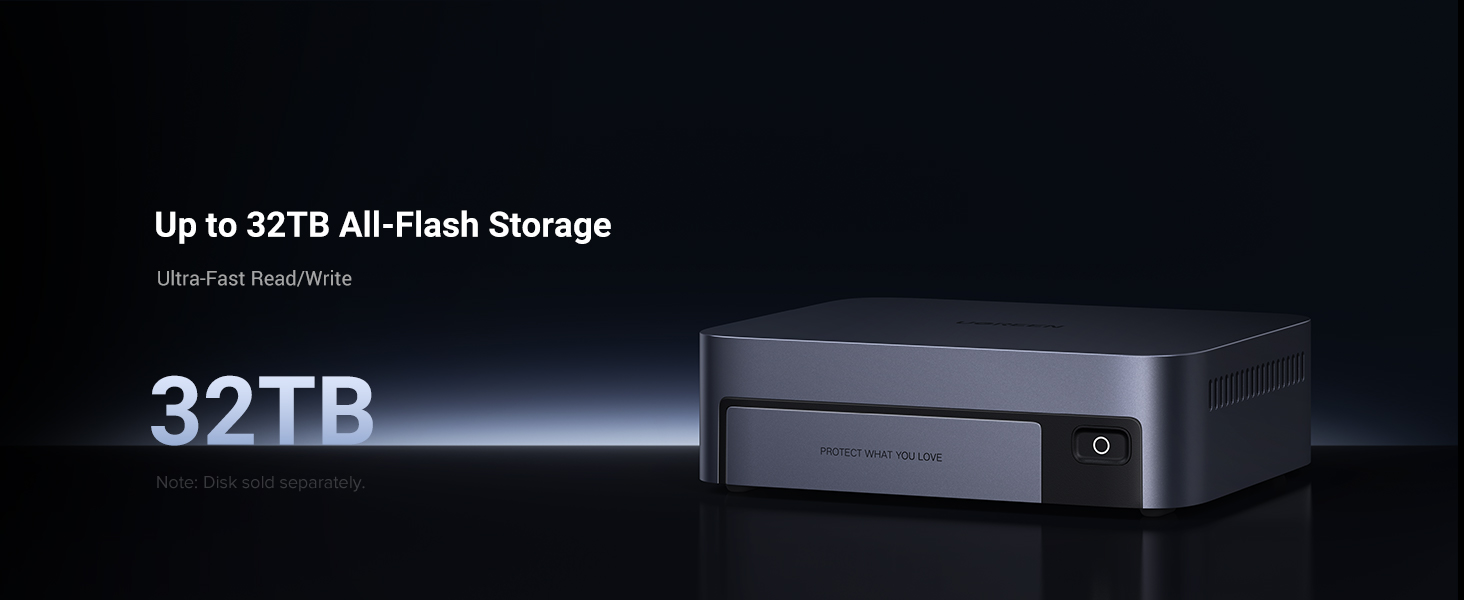

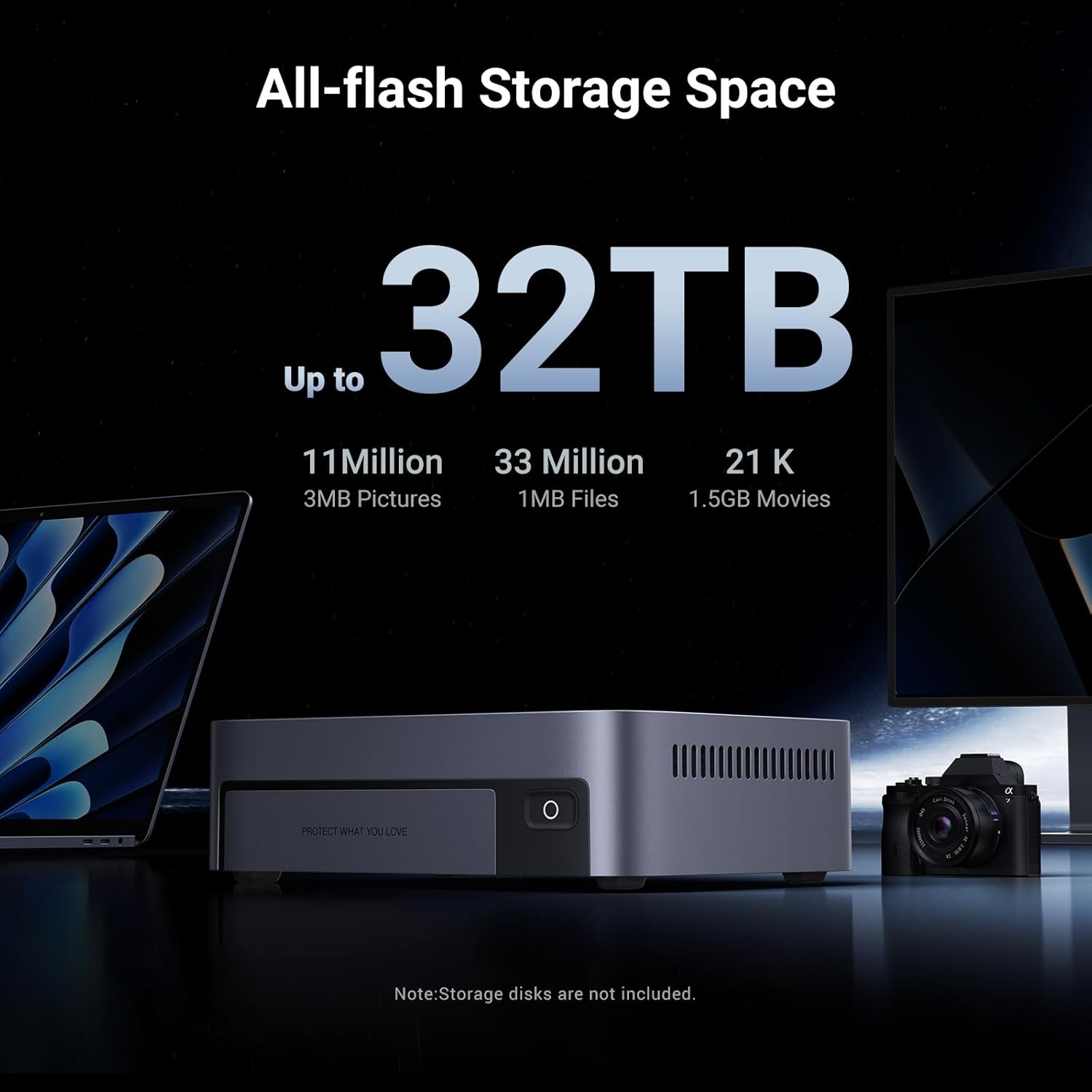

   • Maximum Raw Storage Capacity: 32TB (configured as 4x 8TB M.2 NVMe SSDs)
   • PCIe Expansion: Not Available
4. Connectivity

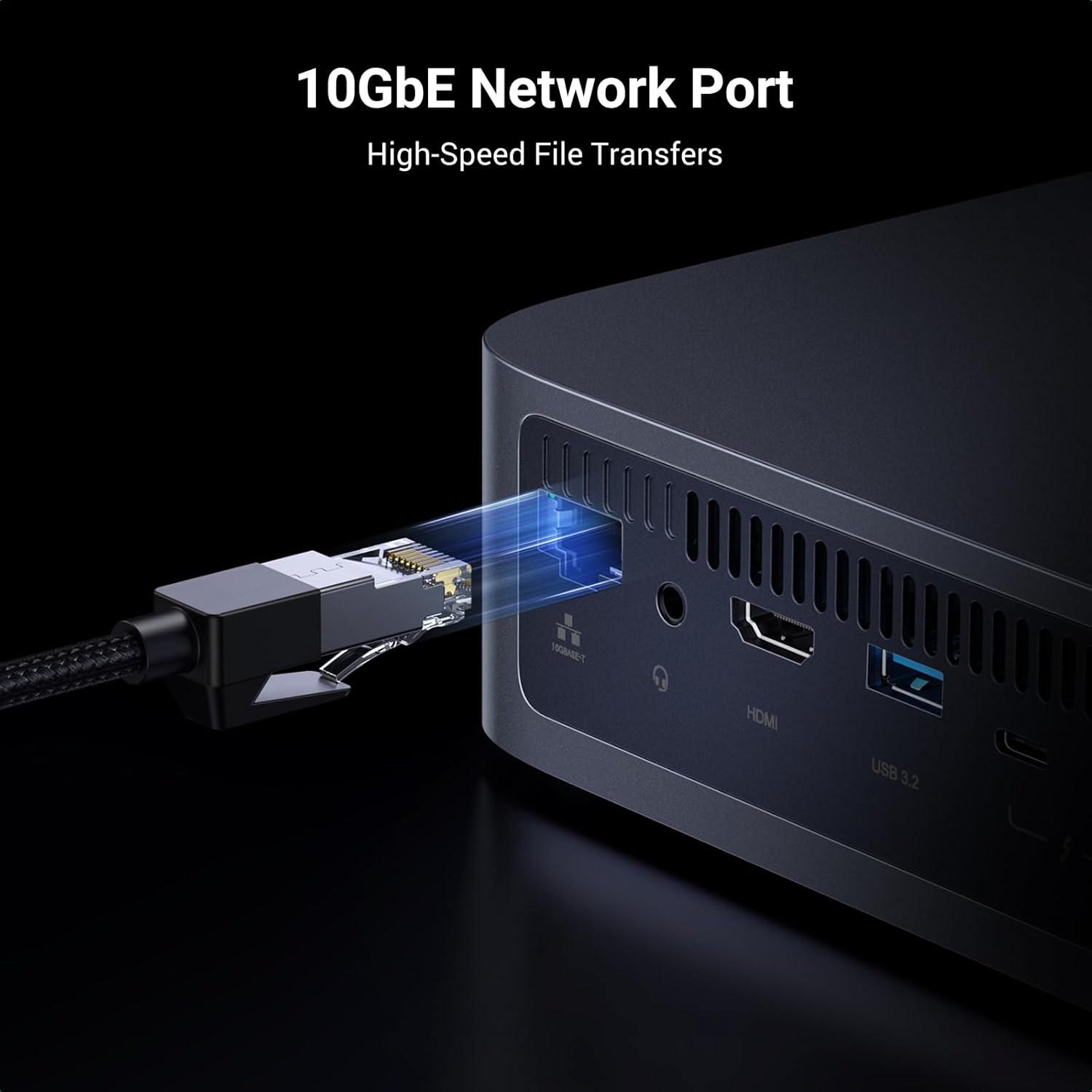

   • LAN Port: 1 x 10 Gigabit Ethernet (10GbE) RJ45

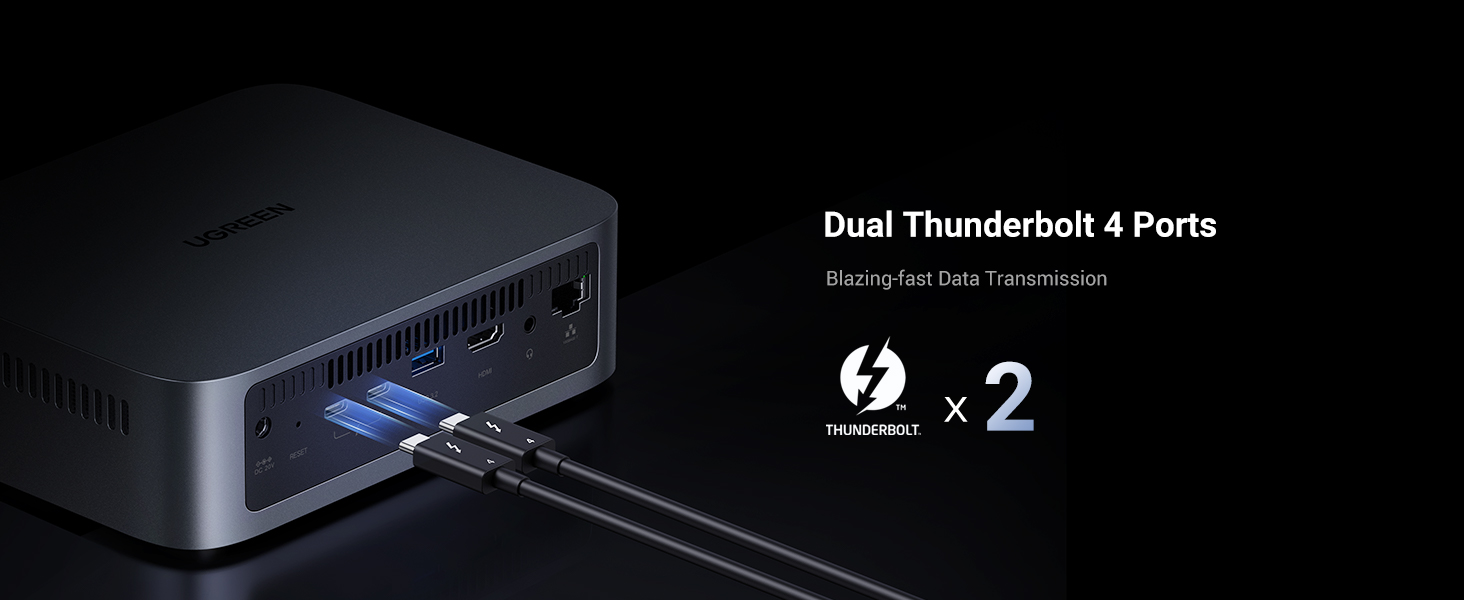

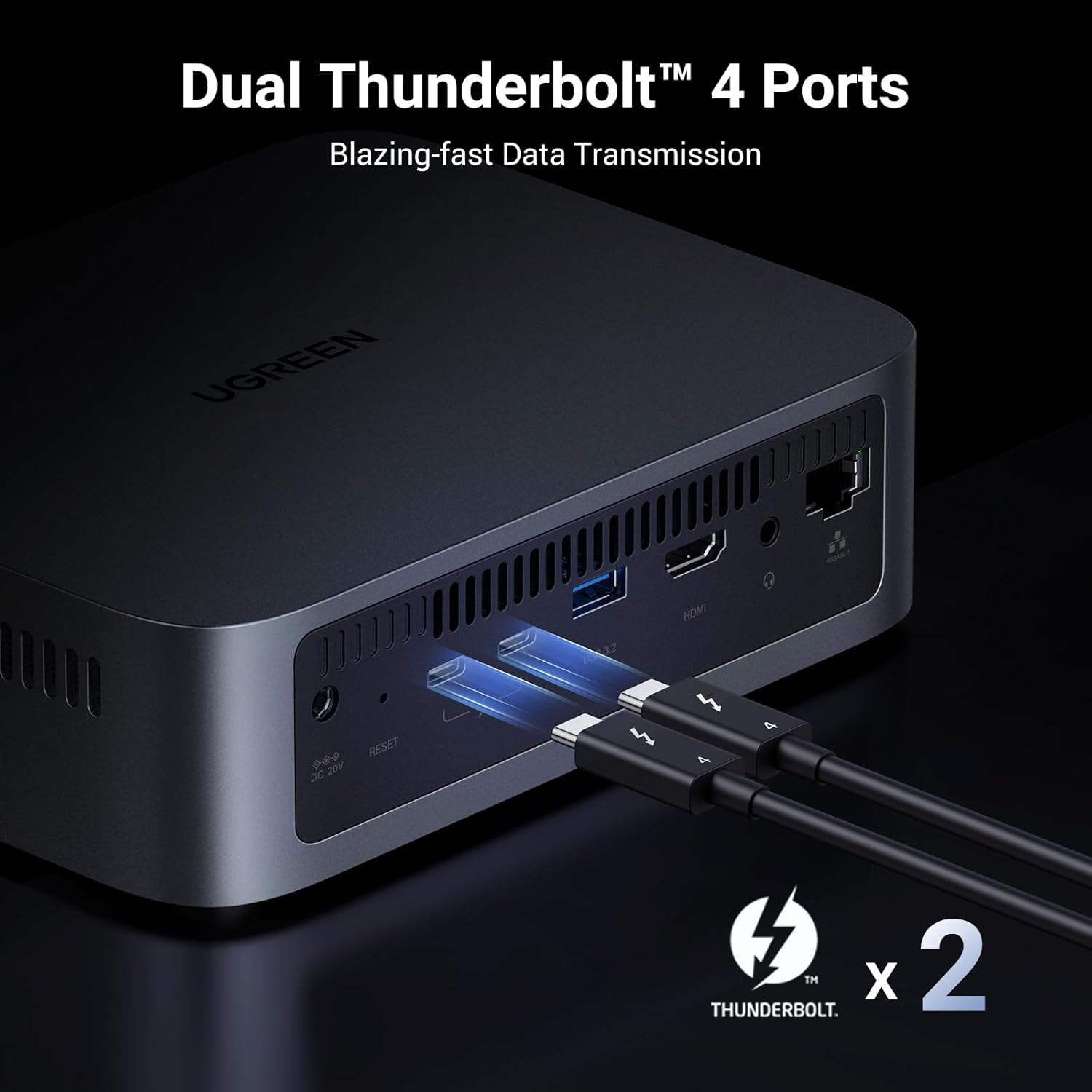

   • Thunderbolt™ 4 Ports (Rear): 2 x Thunderbolt 4 (40Gb/s)
   • High-Speed USB Ports (Rear): 1 x USB-A (10Gb/s)
   • High-Speed USB Ports (Front): Not Available
   • Standard USB Ports: Not Available
   • Wi-Fi: Built-in
   • Video Output: HDMI supporting 8K resolution
   • SD Card Reader: Not Available
5. Physical & Power

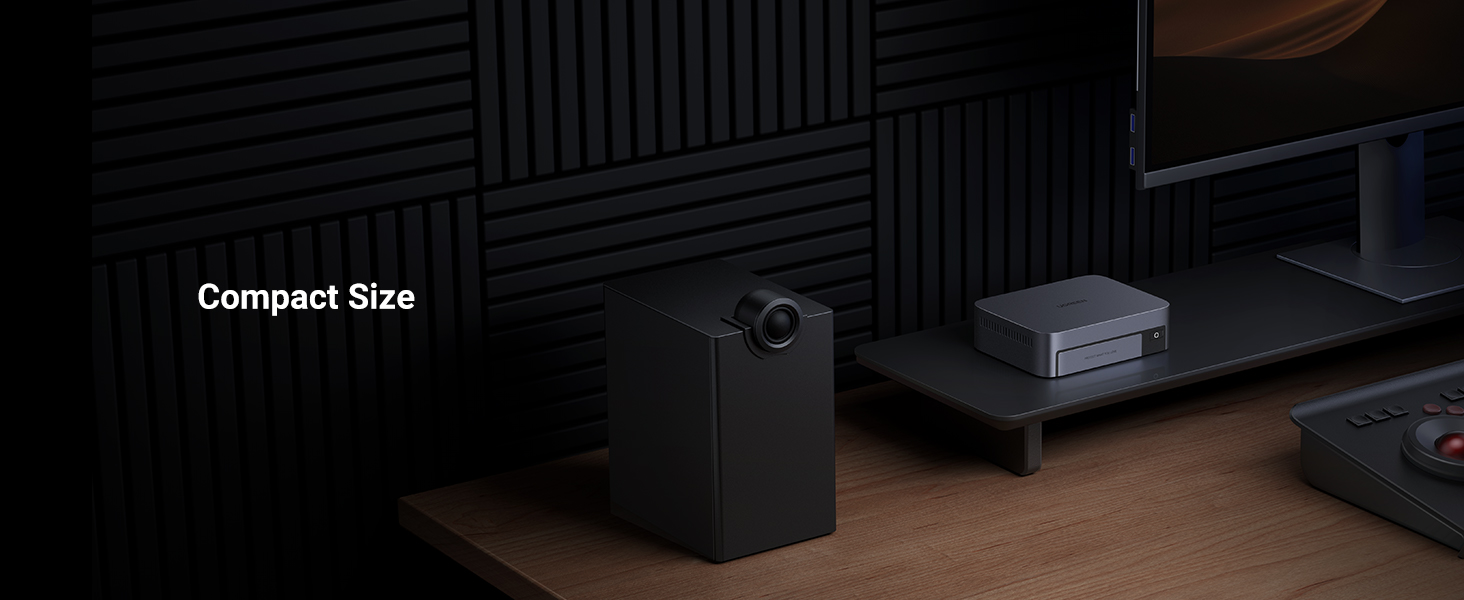

   • Product Dimensions: 7.05″ (L) × 5.59″ (W) × 2.05″ (H)
   • Power Consumption (Typical):
     • 23.14W during drive access
     • 16.94W during drive hibernation

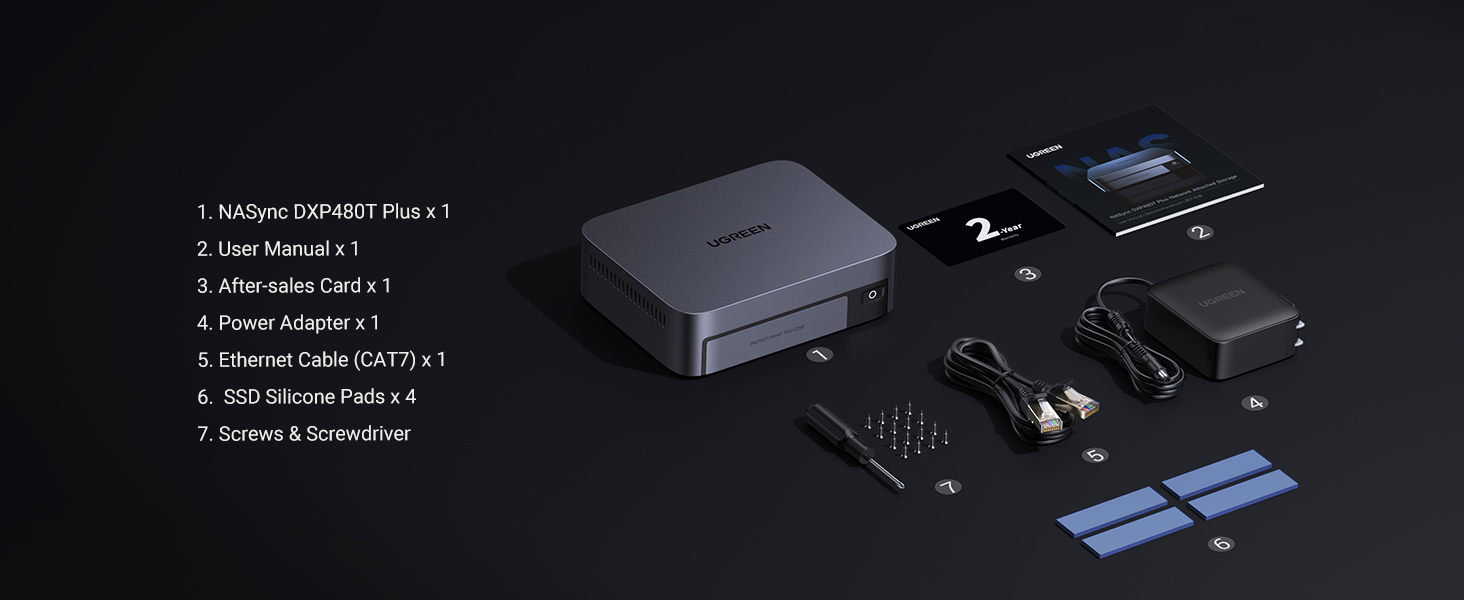

What’s in the Box?

• 1 x UGREEN NASync DXP480T Plus Unit (Diskless)
• 1 x Power Adapter
• 1 x Power Cable
• 1 x RJ45 Ethernet Cable
• 1 x Set of Screws
• 1 x Quick Start Guide

FAQs:

1. Are M.2 NVMe SSDs included with this NAS?
No, this is a diskless model, meaning the M.2 NVMe SSDs are sold separately. This allows you to choose the capacity and speed that best fits your workflow. We recommend our selection of NVMe SSDs for optimal compatibility.

2. What is the primary advantage of an all-flash NAS?
An all-flash NAS provides significantly higher read/write speeds, lower latency, and quieter operation compared to traditional HDD-based NAS systems, making it ideal for high-performance tasks.

3. Can I use this for real-time 8K video editing?
Absolutely. The combination of NVMe storage, a powerful Intel i5 CPU, and 10GbE/Thunderbolt 4 connectivity makes it perfectly suited for direct, real-time editing of high-resolution 8K video footage.

4. How does the built-in Wi-Fi 6 benefit me?
The Wi-Fi 6 capability allows for a completely wireless setup, providing high-speed network access without the need to run an Ethernet cable, offering greater flexibility in placement.

5. Is the RAM user-upgradable?
Yes, the 8GB DDR5 memory is user-upgradable, supporting a maximum of 64GB to handle more virtual machines and demanding applications.

6. What is the purpose of the Thunderbolt 4 ports?
The Thunderbolt 4 ports provide a direct, ultra-high-speed (40Gbps) connection for computers, ideal for video editors and designers to work directly from the NAS with minimal latency.

7. Can this NAS be used as a gaming server or for live streams?
Yes, its high-speed storage and processing power make it excellent for hosting game servers, storing game libraries, or serving as a backend for live streaming assets.

8. Where can I find support and warranty information?
This product is covered by a 1-year warranty. For technical support and warranty claims, please visit our dedicated customer support portal.

9. How does it ensure data security?
It provides professional data security by keeping your data locally stored, away from the cloud. It features robust encryption and multi-factor authentication to protect your data from unauthorized access.

10. Is it noisy?
As an all-flash NAS with no moving hard drives, it operates almost silently, making it perfect for noise-sensitive environments like studios or quiet offices.
