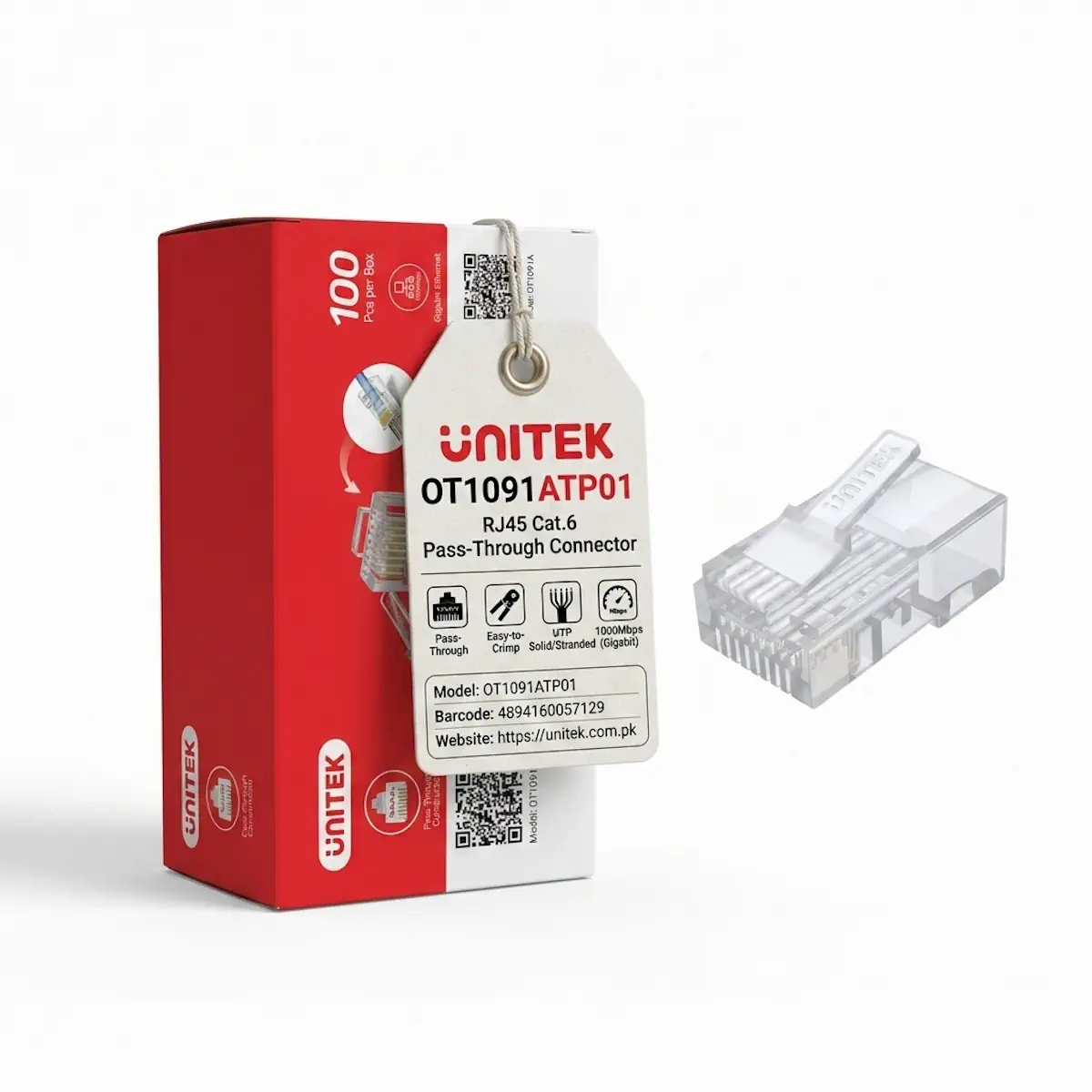

UNITEK RJ45 Cat 6 Pass-Through Connector (100 Pieces), Gold-Plated 3-Point Staggered Contacts, TIA/EIA 568A/568B

UNITEK OT1091ATP01 RJ45 Cat 6 Pass-Through Connector (100 Pieces), Cat6 Ethernet Modular Plug, Gold-Plated 3-Point Staggered Contacts, Pass-Through Design for Easy Wire Alignment, TIA/EIA 568A/568B Compatible, for Cat6/Cat5e/Cat5 Cables – Transparent

Professional-Grade Cat6 Pass-Through Connectors for Perfect Terminations

First and foremost, enhance your networking capabilities with the UNITEK Category 6 Connectors, specially engineered for optimal performance and reliability. Designed to meet the demands of high-speed data transmission, these connectors are perfect for any networking setup. These pass-through RJ45 connectors let you make Ethernet cables in custom lengths. Our Cat 6 connectors work with virtually every model of pass-through RJ45 crimp tool. When searching for the Best Cat6 Pass-Through Connectors in Pakistan , look no further – these UNITEK connectors are the top choice for network installers. Check the UNITEK OT1091ATP01 Price in Pakistan for exceptional value. For more networking tools, check out the UNITEK Multi-Function Crimping Tool for RJ45, RJ11, RJ12, and Coaxial Cables and the UNITEK OT40GY Network Cable Tester.

Pass-Through Design for Visual Wire Alignment

The key advantage is the pass-through design that allows wires to pass through the front of the plug. This enables you to verify the color-coded wire alignment before crimping, significantly reducing errors and wasted connectors. The transparent housing provides additional visibility, ensuring your terminations are perfect every time. Follow these 10 simple steps for perfect terminations:

1. Using a cable cutter to cut the Ethernet cable to desired length
2. Use a stripper tool to strip the outer jacket off (3-4cm from tip)
3. Untwist the pairs of wires and repeat this process for each set
4. Cut off the excess Aluminum foil/film
5. Organize the cables according to T568A/T568B color coding
6. Trim the wires to a uniform length
7. Insert wires into the RJ45 Modular Plug
8. Crimp the plug with the specialized crimping tool (Repeat steps 2-7 for other end if needed)
9. Bend and fix the tail wing
10. Pass through completed

For more installation tools, check out the UNITEK Multi-Function Crimping Tool.

Gold-Plated 3-Point Staggered Contacts for Superior Signal Integrity

The standout feature is its 3-point staggered contact design with gold-plated pins . This design:

• Provides superior conductivity and corrosion resistance
• Reduces crosstalk between adjacent wires
• Ensures reliable signal transmission up to 1000MHz
• Improves contact pressure for secure terminations

The staggered contacts prevent wire overlap and ensure each wire makes proper contact with its designated pin. This results in cleaner signal transmission and more reliable network performance. For high-quality Ethernet cables to pair with these connectors, consider the UNITEK Cat 6 Ethernet Cable and the UNITEK Cat 7 SFTP Ethernet Cable.

Universal Compatibility with T568A and T568B Standards

These connectors work with both TIA/EIA 568A and 568B wiring standards , making them universally compatible with all standard Ethernet installations. The color coding chart is clearly visible for easy reference:

100-Piece Bulk Value Pack for Professionals

This 100-piece bulk value pack is perfect for IT professionals, network installers, ISPs, and DIY enthusiasts who need reliable connectors in quantity. Each connector is quality certified for consistent performance. The pack includes:

• 100 x RJ45 Cat.6 Pass-Through Connectors
• Clear transparent housing for wire visibility
• Gold-plated 3-point staggered contacts
• Compatible with 23-26 AWG stranded and solid wires

For more UNITEK products, browse the UNITEK Mix Tools collection and the UNITEK USB Extension Cables collection.

Perfect Applications

• Home networking – Create custom-length Ethernet cables for your home network
• Office installations – Professional-grade connectors for office cabling
• Data centers – Bulk connectors for server room and network closet terminations
• ISP installations – Reliable connectors for customer premises wiring
• DIY projects – Make your own exact-length cables for clean setups
• Gaming setups – Create low-latency custom cables for gaming rigs

For a complete networking toolkit, pair these connectors with the UNITEK Cat 6 Ethernet Cable (305 Meter) 23AWG and the UNITEK RJ45 Coupler.

RJ45 Color Coding System

TIA 568A:

1. 1. White/Green Stripe
   2. Green Solid
   3. White/Orange Stripe
   4. Blue Solid
   5. White/Blue Stripe
   6. Orange Solid
   7. White/Brown Stripe
   8. Brown Solid

TIA 568B:

1. 1. White/Orange Stripe
   2. Orange Solid
   3. White/Green Stripe
   4. Blue Solid
   5. White/Blue Stripe
   6. Green Solid
   7. White/Brown Stripe
   8. Brown Solid

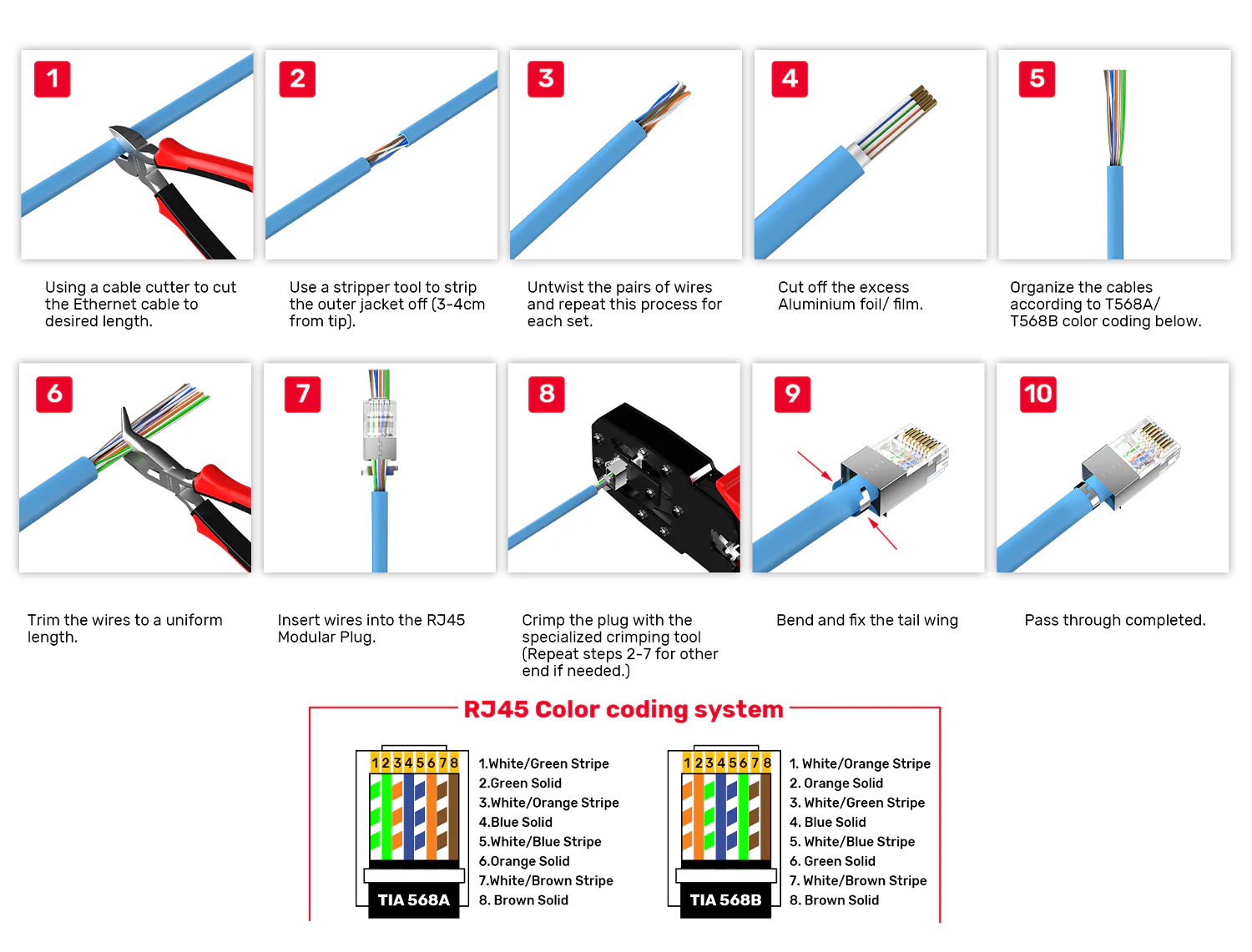

10-Step Termination Guide

1. Using a cable cutter to cut the Ethernet cable to desired length
2. Use a stripper tool to strip the outer jacket off (3-4cm from tip)
3. Untwist the pairs of wires and repeat this process for each set
4. Cut off the excess Aluminum foil/film
5. Organize the cables according to T568A/T568B color coding below
6. Trim the wires to a uniform length
7. Insert wires into the RJ45 Modular Plug
8. Crimp the plug with the specialized crimping tool (Repeat steps 2-7 for other end if needed)
9. Bend and fix the tail wing
10. Pass through completed

Products Specifications

• Brand: UNITEK
• SKU: OT1091ATP01
• Type: RJ45 Cat.6 Pass-Through Connector
• Quantity: 100 pieces per pack
• Color: Transparent
• Dimensions: 22.5mm × 11.68mm × 7.96mm
• Network Speed: 1000MHz (Cat6 compatible)
• Contact Type: 3-Point Staggered Contacts
• Contact Material: Gold-Plated
• Cable Compatibility: Cat6, Cat5e, Cat5 (UTP)
• Wire Gauge: 23-26 AWG (stranded and solid)
• Wiring Standards: TIA/EIA 568A and 568B compatible
• Special Features: Pass-through design for wire alignment verification, Transparent housing, Staggered contacts to prevent crosstalk
• Warranty: 12 Months (Pakistan)

What’s in the Box

100 x UNITEK OT1091ATP01 RJ45 Cat.6 Pass-Through Connectors (Transparent)

Frequently Asked Questions

Q1: What is a pass-through RJ45 connector and why is it better?

A: A pass-through connector allows wires to pass through the front of the plug, enabling you to visually verify the color-coded wire alignment before crimping. This significantly reduces errors and wasted connectors compared to traditional connectors. This is a 100% original product available from the Official UNITEK Store in Pakistan, ensuring authenticity and quality. Explore the full UNITEK LAN Cables & Adapters collection

Q2: What cables are compatible with these connectors?

A: These connectors are compatible with Cat6, Cat5e, and Cat5 UTP (unshielded twisted pair) cables using 23-26 AWG stranded or solid wires. They are NOT designed for shielded (STP) cables. Purchase from the UNITEK Official Distributor in Pakistan to ensure you receive genuine products with full warranty support.

Q3: Do these connectors support both T568A and T568B wiring standards?

A: Yes! These connectors work with both TIA/EIA 568A and 568B wiring standards . The color coding chart is included in the listing for easy reference. For guaranteed authenticity, always purchase from the UNITEK Pakistan Official Store.

Q4: What crimping tool should I use with these pass-through connectors?

A: These connectors work with virtually every model of pass-through RJ45 crimp tool . For best results, use a quality pass-through crimper. This is a 100% original product – for more networking tools, check out the UNITEK Multi-Function Crimping Tool for RJ45, RJ11, RJ12, and Coaxial Cables.

Q5: Why are the contacts gold-plated and 3-point staggered?

A: The gold-plated contacts provide superior conductivity and corrosion resistance. The 3-point staggered contact design prevents wire overlap, reduces crosstalk, and ensures each wire makes proper contact with its designated pin for reliable signal transmission. Purchase from the UGREEN Official Distributor in Pakistan to ensure you receive genuine products with full warranty support.

Q6: What is the maximum bandwidth supported by these connectors?

A: These connectors support 1000MHz bandwidth , making them fully compatible with Cat6 standards for high-speed networking, gaming, and streaming applications. For guaranteed authenticity, always purchase from the UGREEN PK Official Store in Pakistan.

Q7: How many connectors are in this pack?

A: This is a 100-piece bulk value pack , perfect for IT professionals, network installers, and DIY enthusiasts who need reliable connectors in quantity. Check the UNITEK OT1091ATP01 Price in Pakistan for exceptional value.

Q8: Can I use these connectors with Cat6a or Cat7 cables?

A: These connectors are designed for Cat6, Cat5e, and Cat5 cables . For Cat6a or Cat7 cables, you would need connectors specifically designed for those cable categories with larger wire gauges and shielding. For more networking solutions, browse the UNITEK LAN Cables & Adapters.

Q9: Are these connectors reusable after crimping?

A: No, these connectors are single-use only . Once crimped, they cannot be removed and reused. Plan your terminations carefully to avoid waste. When searching for the Best Cat6 Pass-Through Connectors in Pakistan , these UNITEK connectors are the top choice for network installers.

Q10: What is the warranty coverage in Pakistan?

A: All authentic UNITEK products purchased from the UNITEK Official Distributor in Pakistan or the UGREEN Official Distributor in Pakistan come with a comprehensive 12-month warranty against manufacturing defects from the date of purchase. Purchase from authorized retailers for original product warranty and fast delivery in Pakistan.
