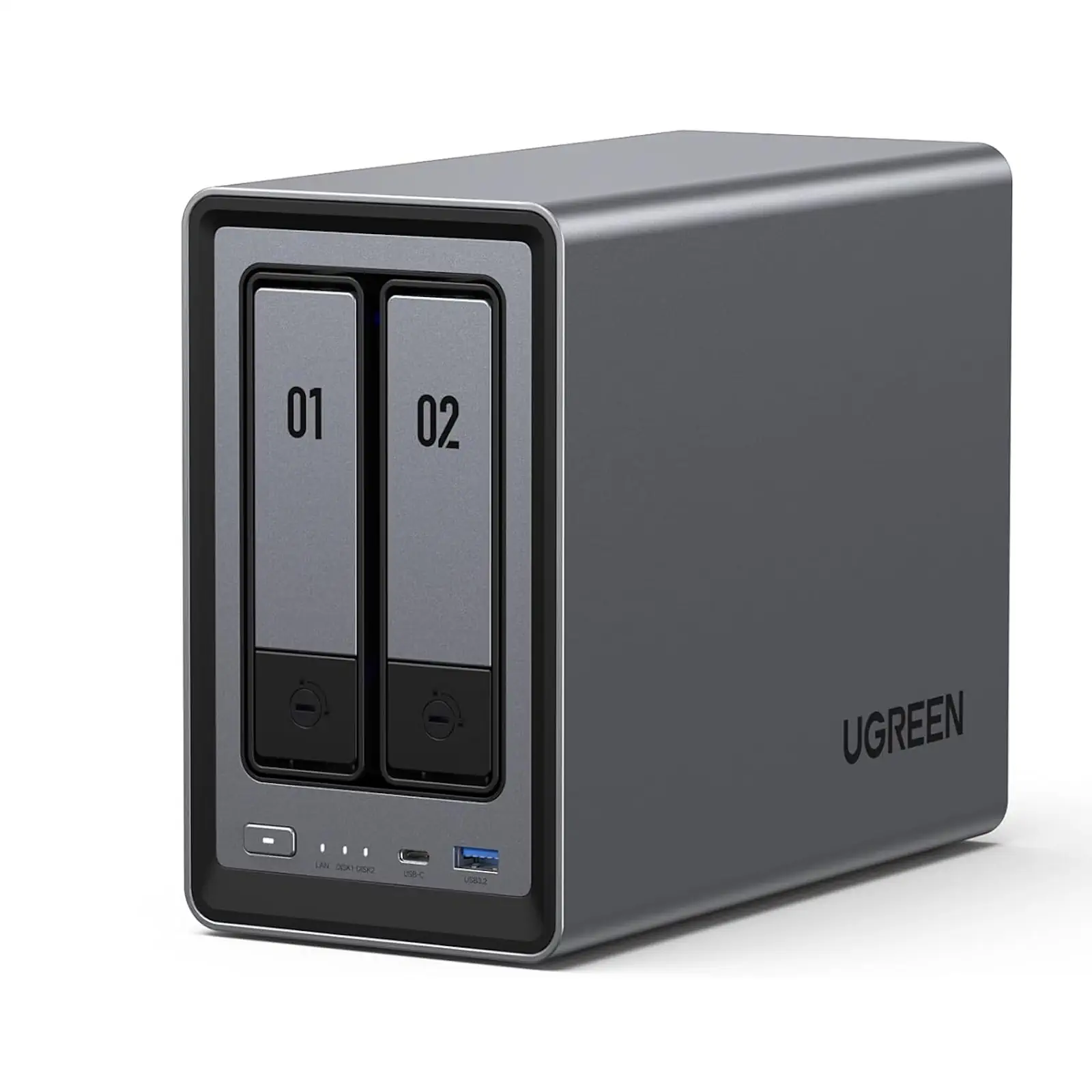

UGREEN 25242 NASync DXP2800 2-Bay Desktop NAS

UGREEN 25242 NASync DXP2800 2-Bay Desktop NAS with Intel N100 CPU, 8GB DDR5, 2.5GbE, Dual M.2 Slots, 4K HDMI – Personal Private Cloud Storage Server (Diskless)

Take command of your digital life with the UGREEN NASync DXP2800, a high-performance 2-bay Network Attached Storage (NAS) device designed to be the secure and powerful heart of your smart home or small office. This is more than just a hard drive enclosure; it’s your own private cloud server, media center, and automated backup solution all in one sleek, desktop package.

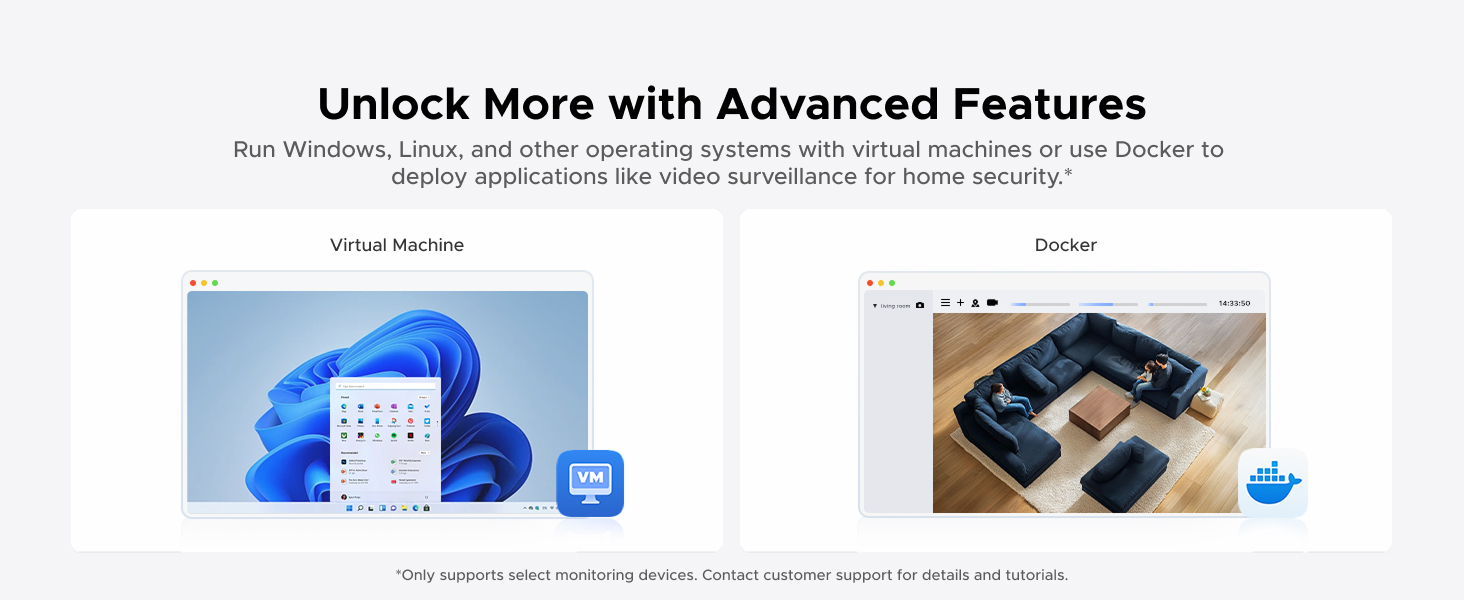

Driven by a modern Intel N100 quad-core CPU and 8GB of DDR5 RAM, the DXP2800 handles demanding tasks with ease. Stream 4K videos to multiple devices, run Docker applications, and perform fast backups without breaking a sweat. The 2.5GbE network port ensures your network is the bottleneck, not your storage, while the dual M.2 NVMe slots allow you to add SSD caching for lightning-fast access to your most-used files.

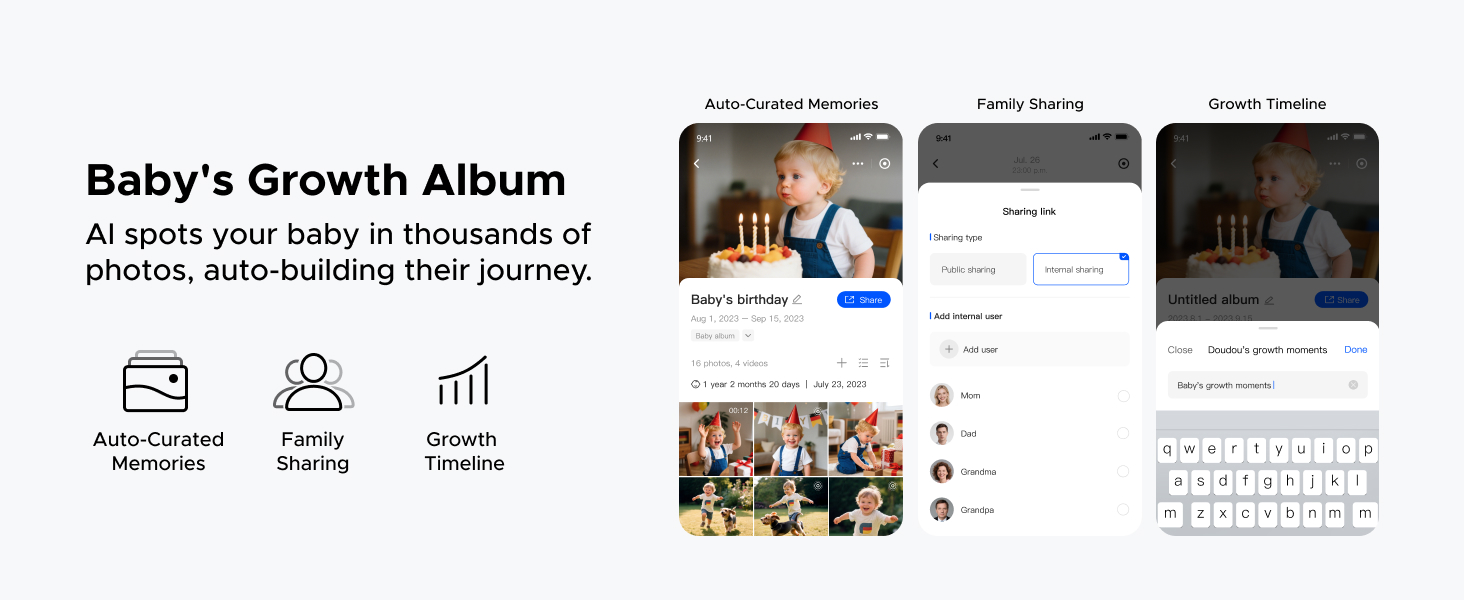

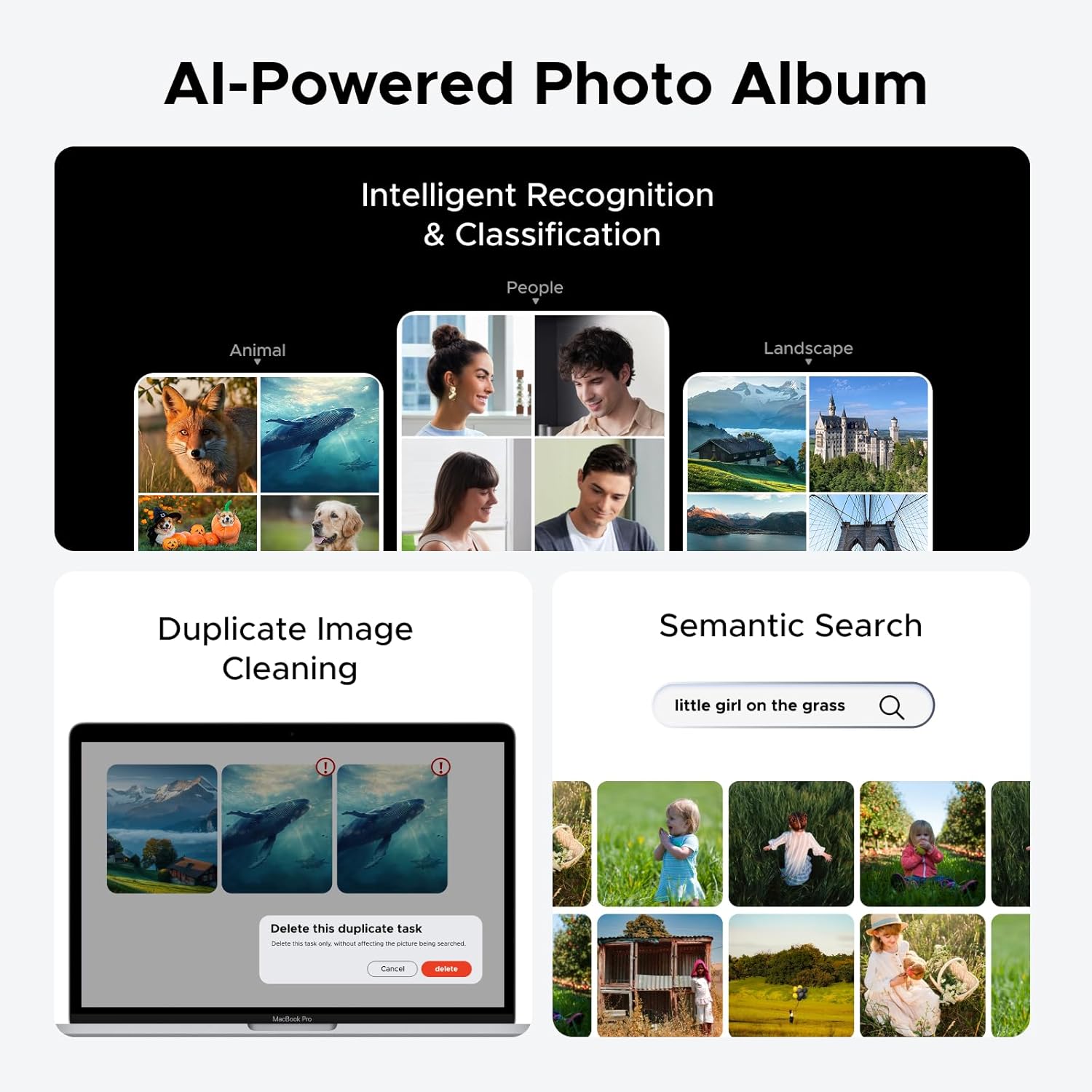

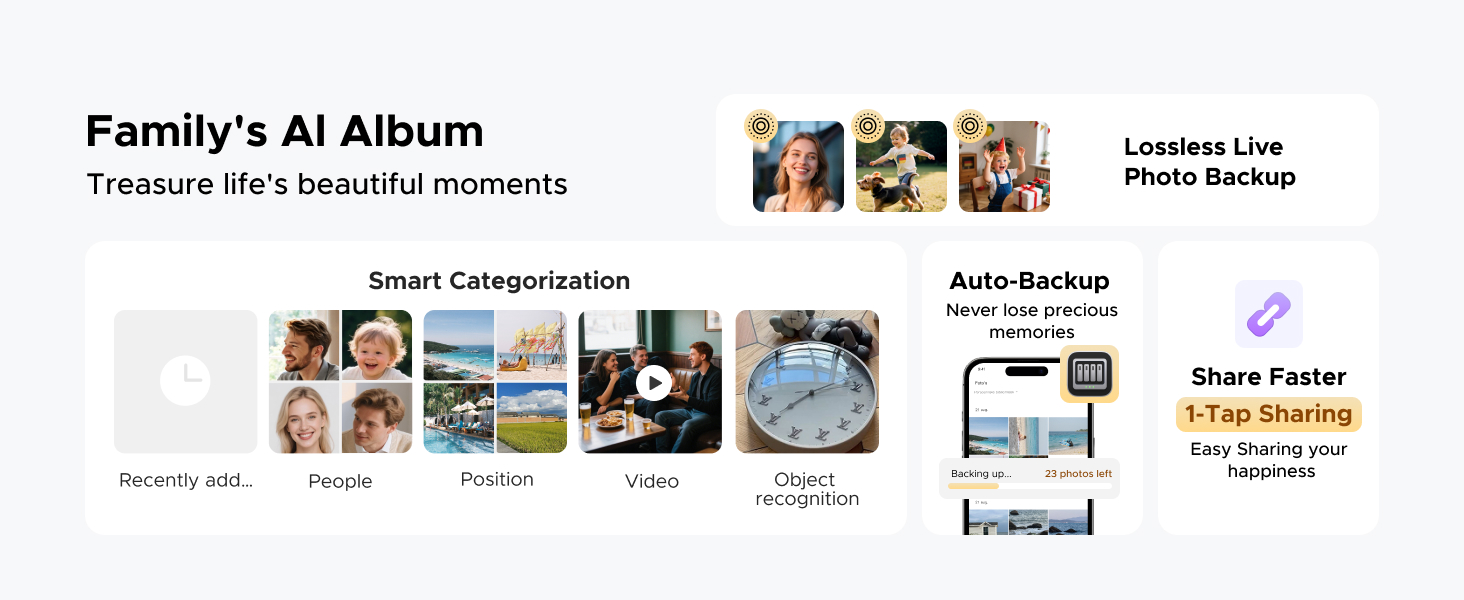

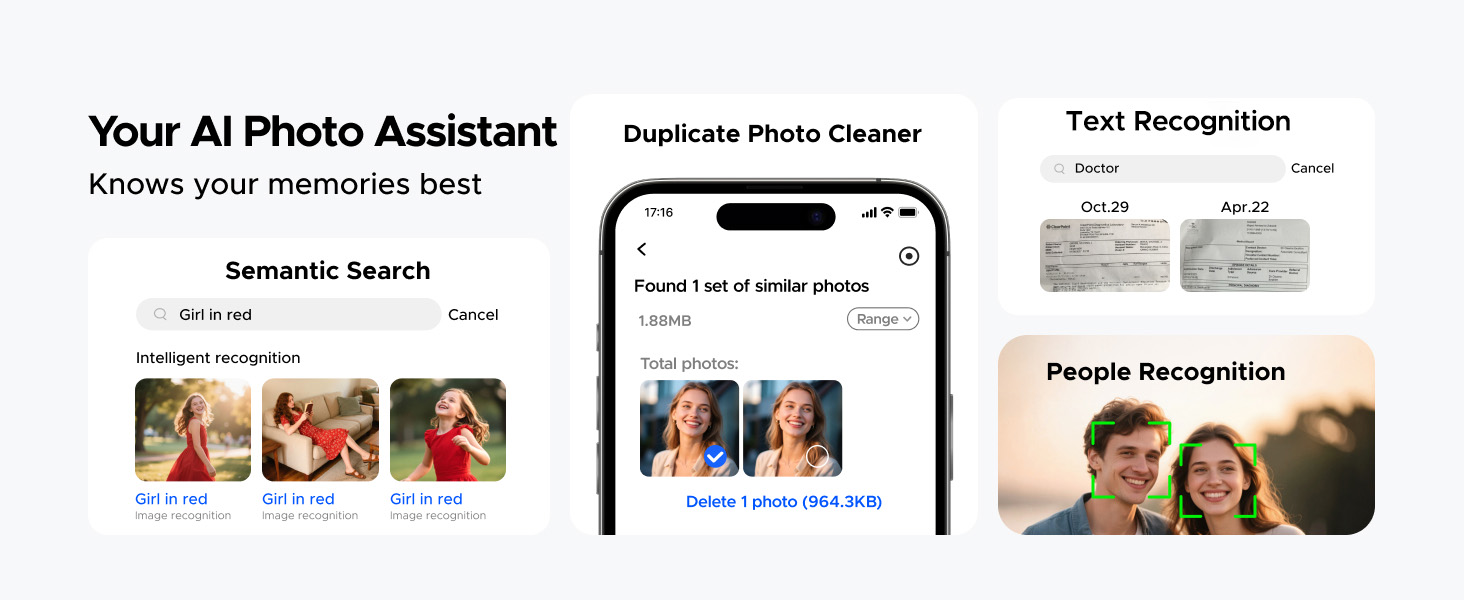

The intuitive UGREEN OS software makes setup simple and brings powerful features to your fingertips. The AI photo management automatically tags and organizes your entire photo library, while built-in tools help you back up your PC and mobile devices. With a 4K HDMI output, you can even connect it directly to a TV or monitor. This NAS is the ultimate solution for data backup, a home media server, and securing your digital legacy. For optimal performance, pair it with UGREEN Cat6 Ethernet cables and NAS-compatible hard drives.

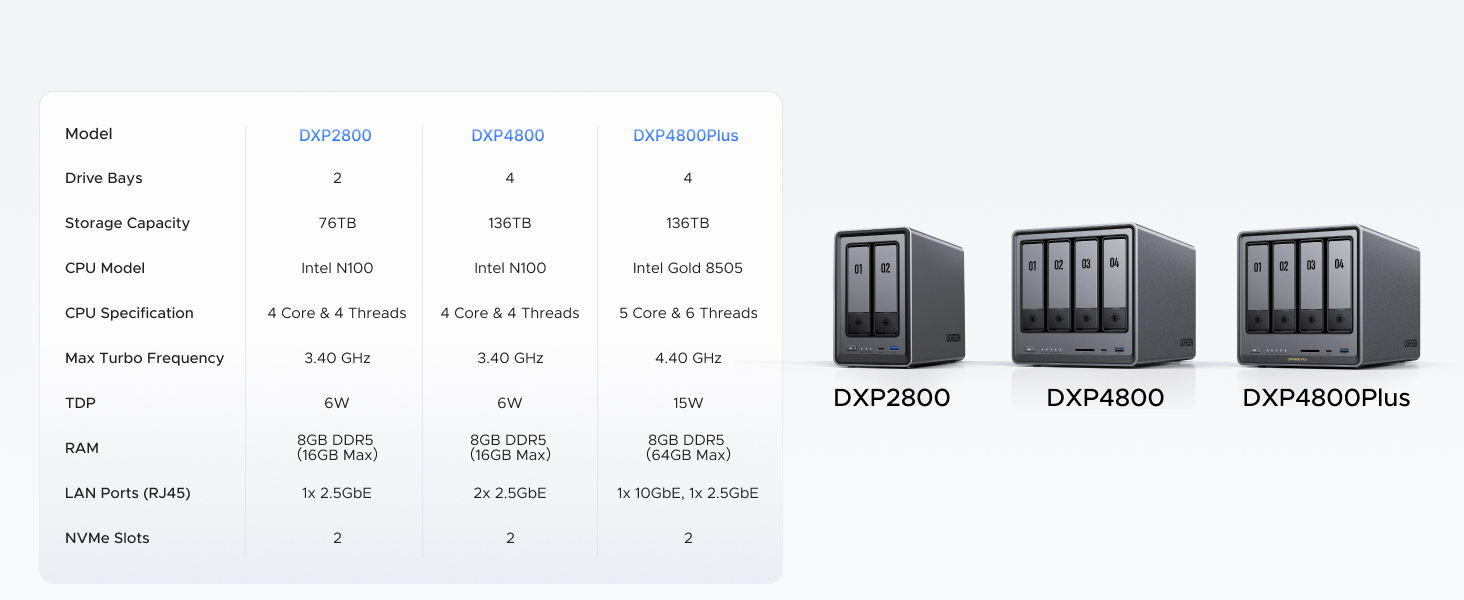

Product Specifications

General Information

• SKU: 25242
• Model: DXP2800
• Supported Languages: English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語
• Operating System: UGOS Pro

Processor & Performance

• CPU Model: Intel N100
• CPU Brand & Architecture: Intel X86 12th Generation N Series
• CPU Cores/Threads: 4 Cores, 4 Threads

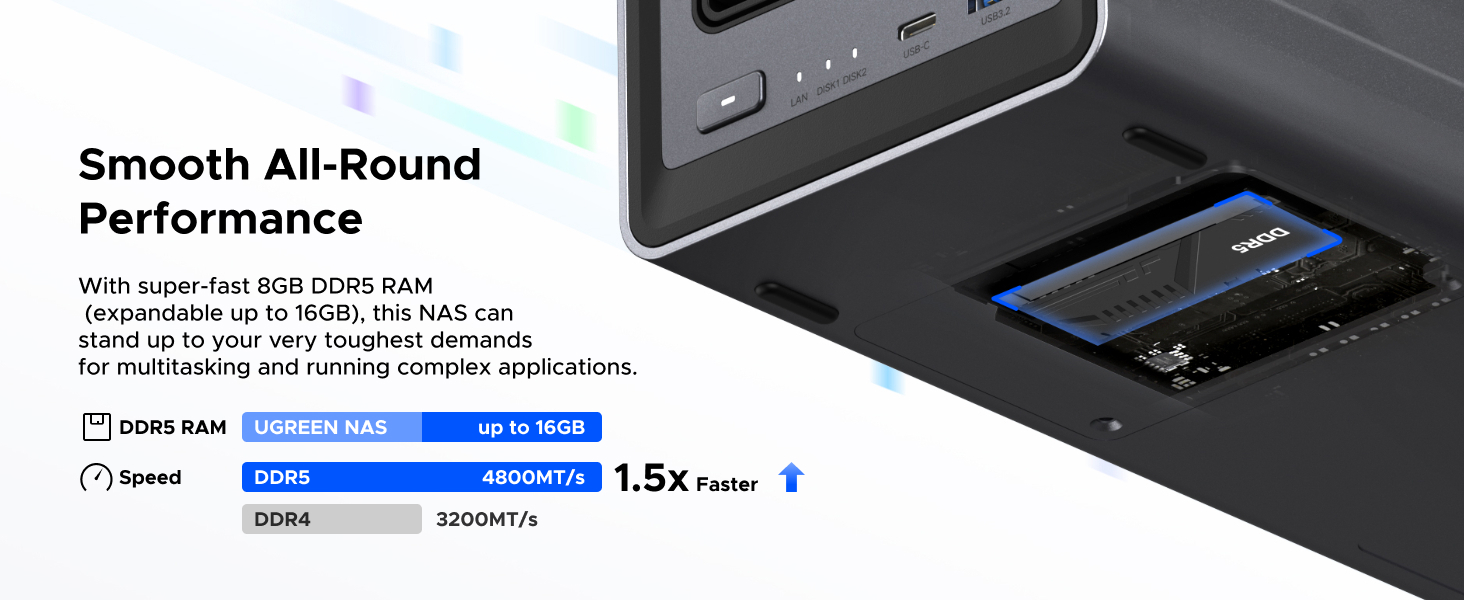

• Memory (RAM): 8GB DDR5 (soldered)
• Expandable RAM: Supported, up to a maximum of 16GB total
• Flash Memory (System Disk): 32GB eMMC
• ODECC: Supported

Storage & Expansion

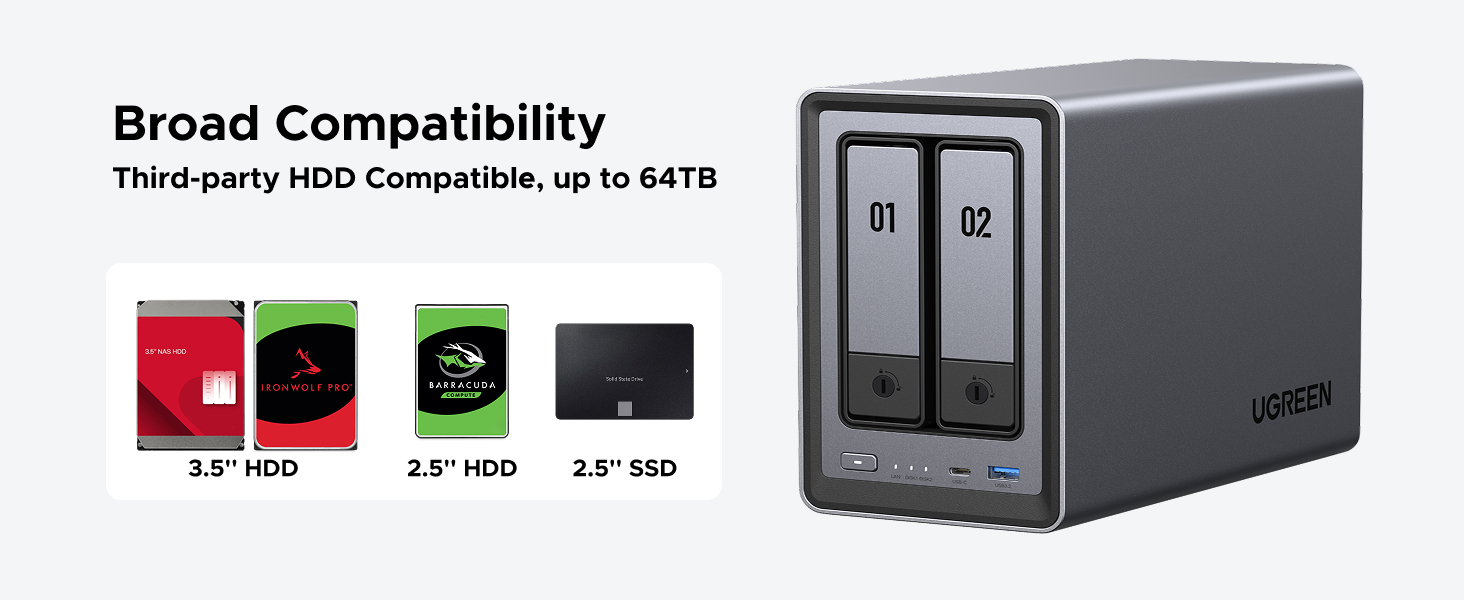

• Drive Bays: 2-Bay for SATA HDD/SSD
• M.2 SSD Slots: 2 slots for NVMe SSDs
• Supported RAID Modes: JBOD, Basic, RAID 0, RAID 1

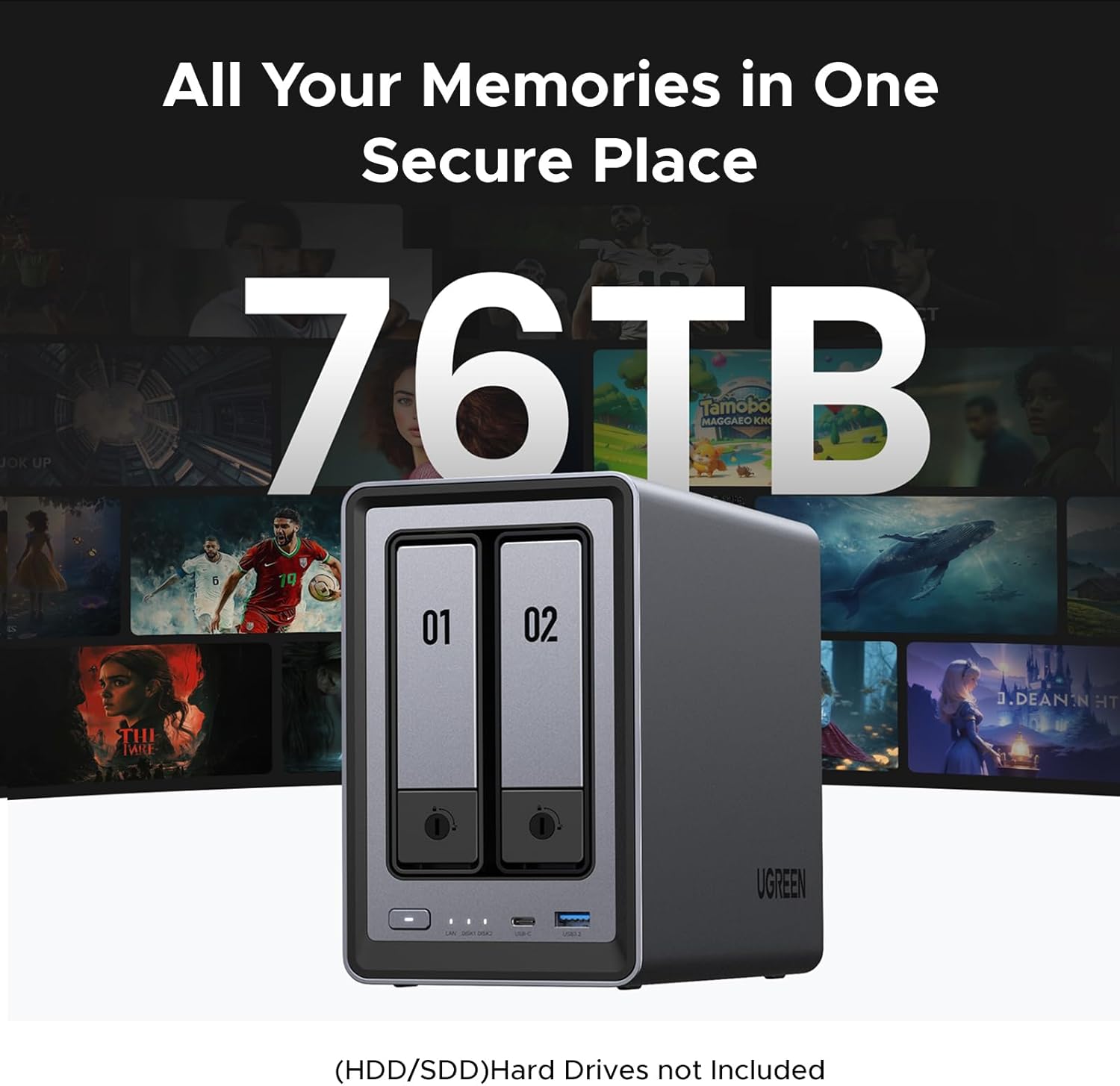

• Maximum Raw Storage Capacity: 76TB (configured as 2x 30TB SATA drives + 2x 8TB M.2 SSDs)

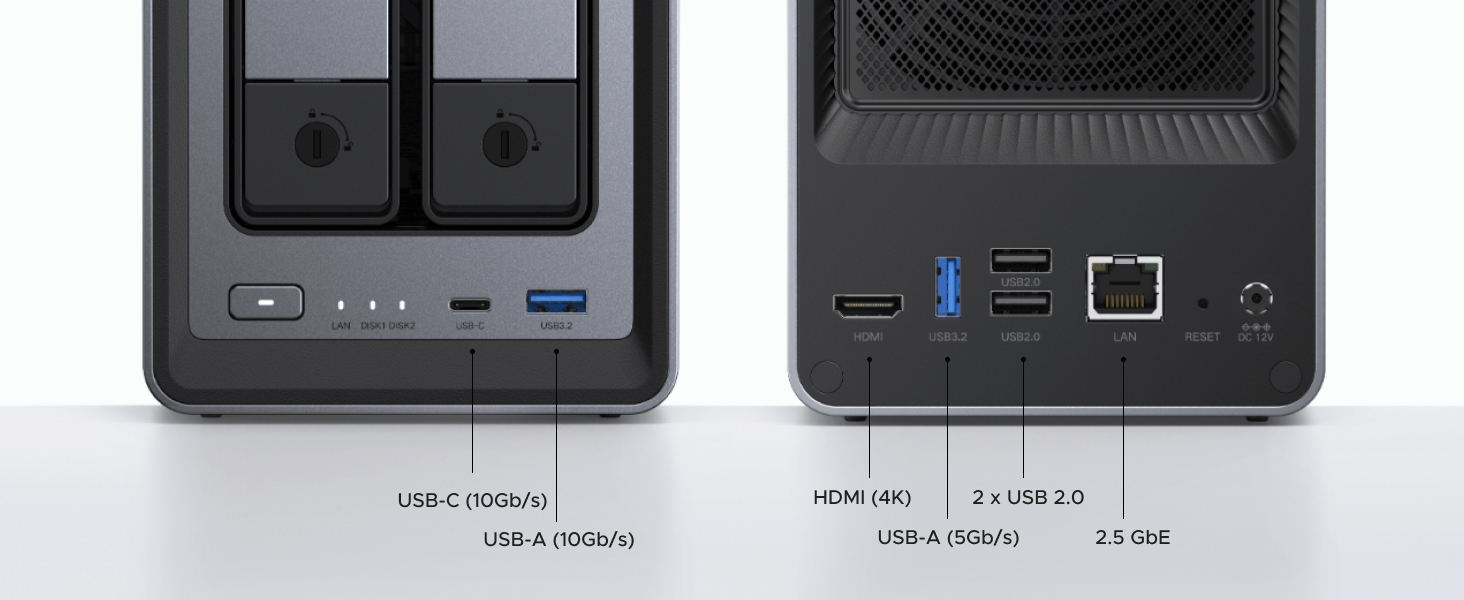

Connectivity

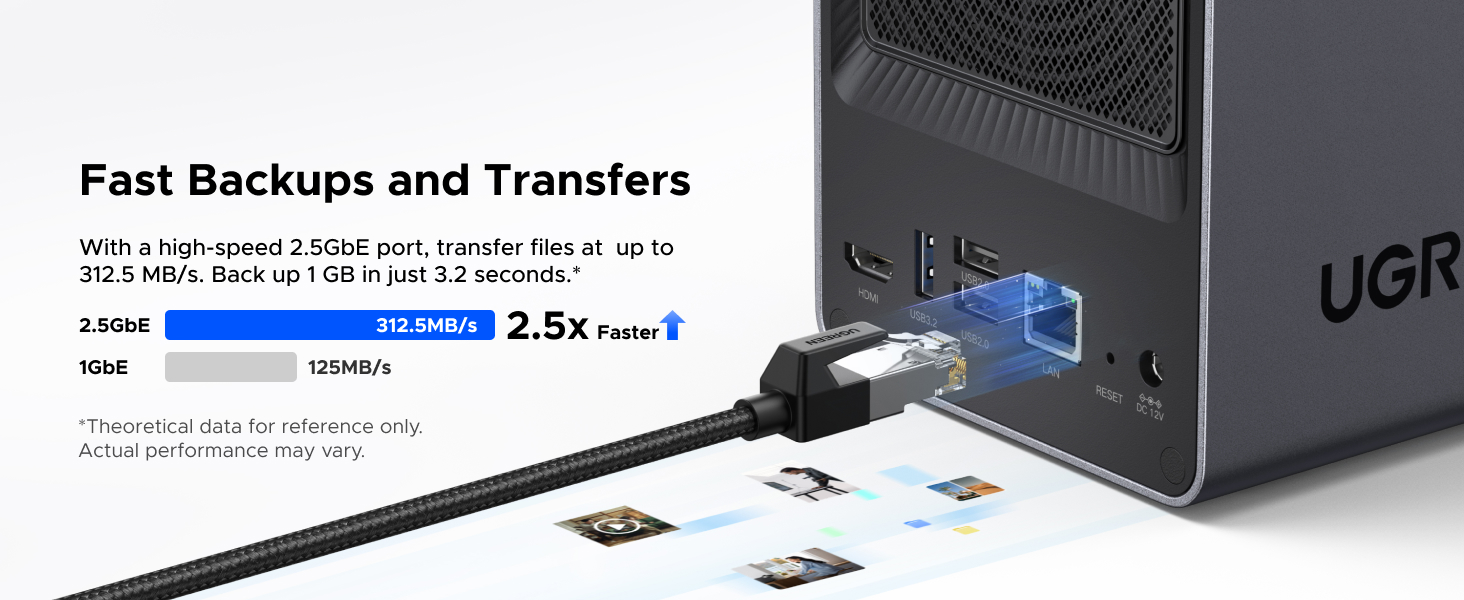

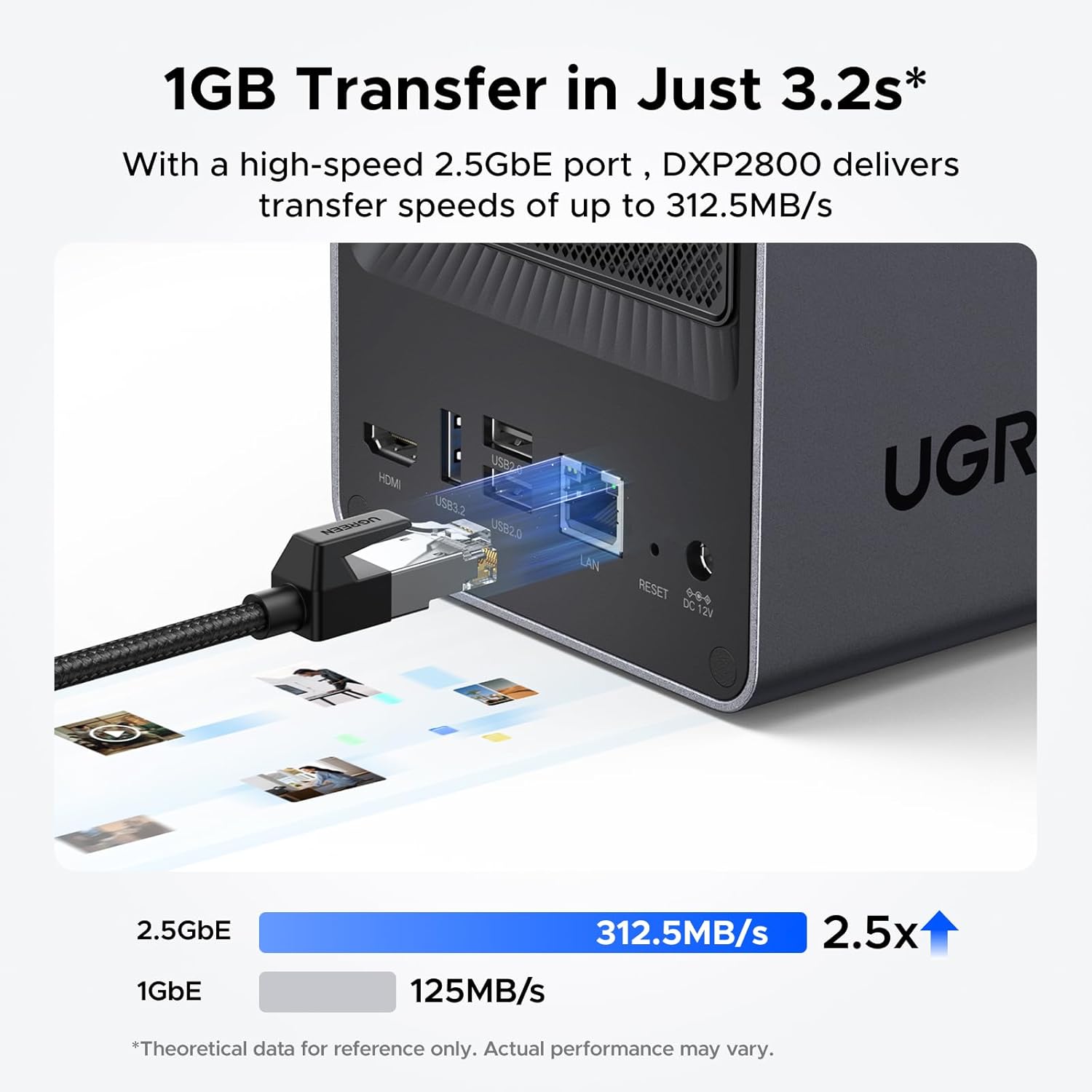

• LAN Port: 1 x 2.5 Gigabit Ethernet (2.5GbE) RJ45
• High-Speed USB Ports (Front): 1x USB-C (10Gb/s), 1x USB-A (10Gb/s)
• High-Speed USB Ports (Rear): 1x USB-A (5Gb/s)
• Standard USB Ports (Rear): 2x USB-A 2.0 (480Mb/s)
• Video Output: HDMI supporting 4K resolution
• PCIe Expansion: Not Available
• Thunderbolt™ 4 Ports: Not Available
• SD Card Reader: Not Available
• Wi-Fi: Not Available

Physical & Power

• Product Dimensions: 9.1″ (W) × 4.3″ (H) × 7.0″ (D)
• Power Consumption (Typical):
  • 16.38W during drive access
  • 5.24W during drive hibernation

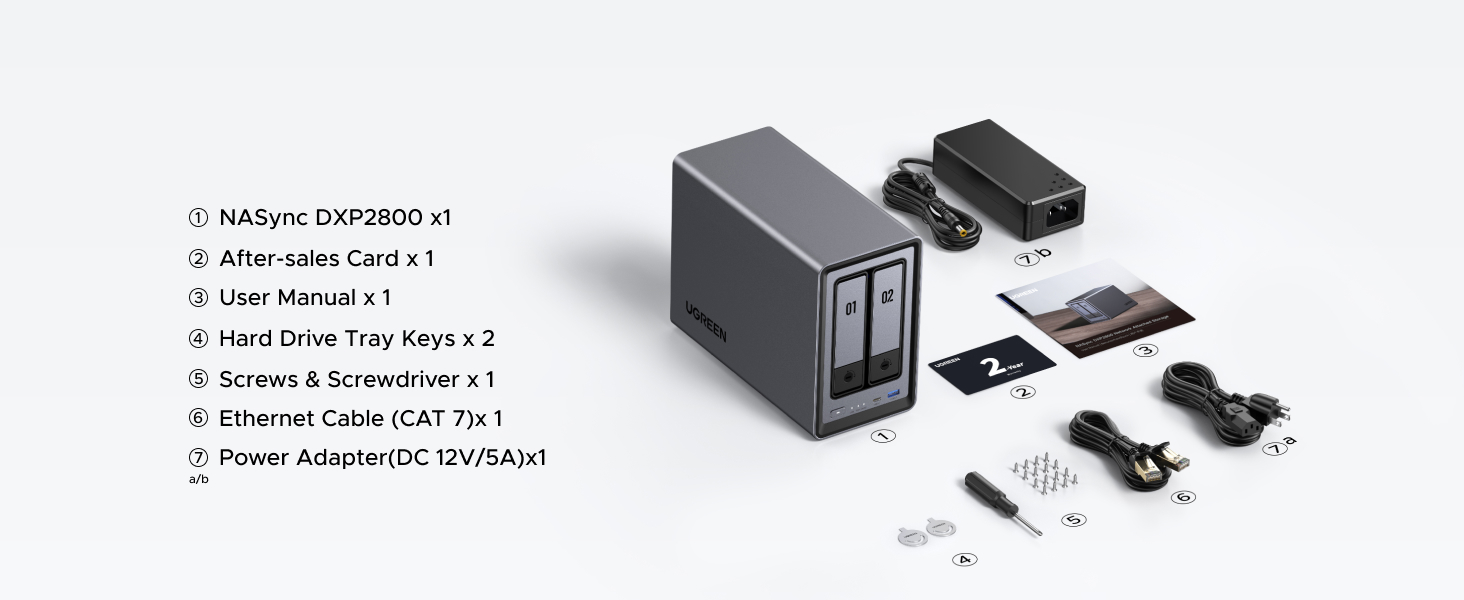

What’s in the Box?

• 1 x UGREEN NASync DXP2800 NAS Unit (Diskless)
• 1 x AC Power Adapter
• 1 x RJ45 Ethernet Cable
• 1 x Set of Screws for Drives
• 1 x Quick Start Guide

10 FAQs:

1. Are hard drives included with this NAS?
No, this is a diskless model. You need to purchase and install your own 3.5-inch SATA hard drives separately. We recommend NAS-optimized drives from WD Red or Seagate IronWolf.

2. Can I access my files from outside my home?

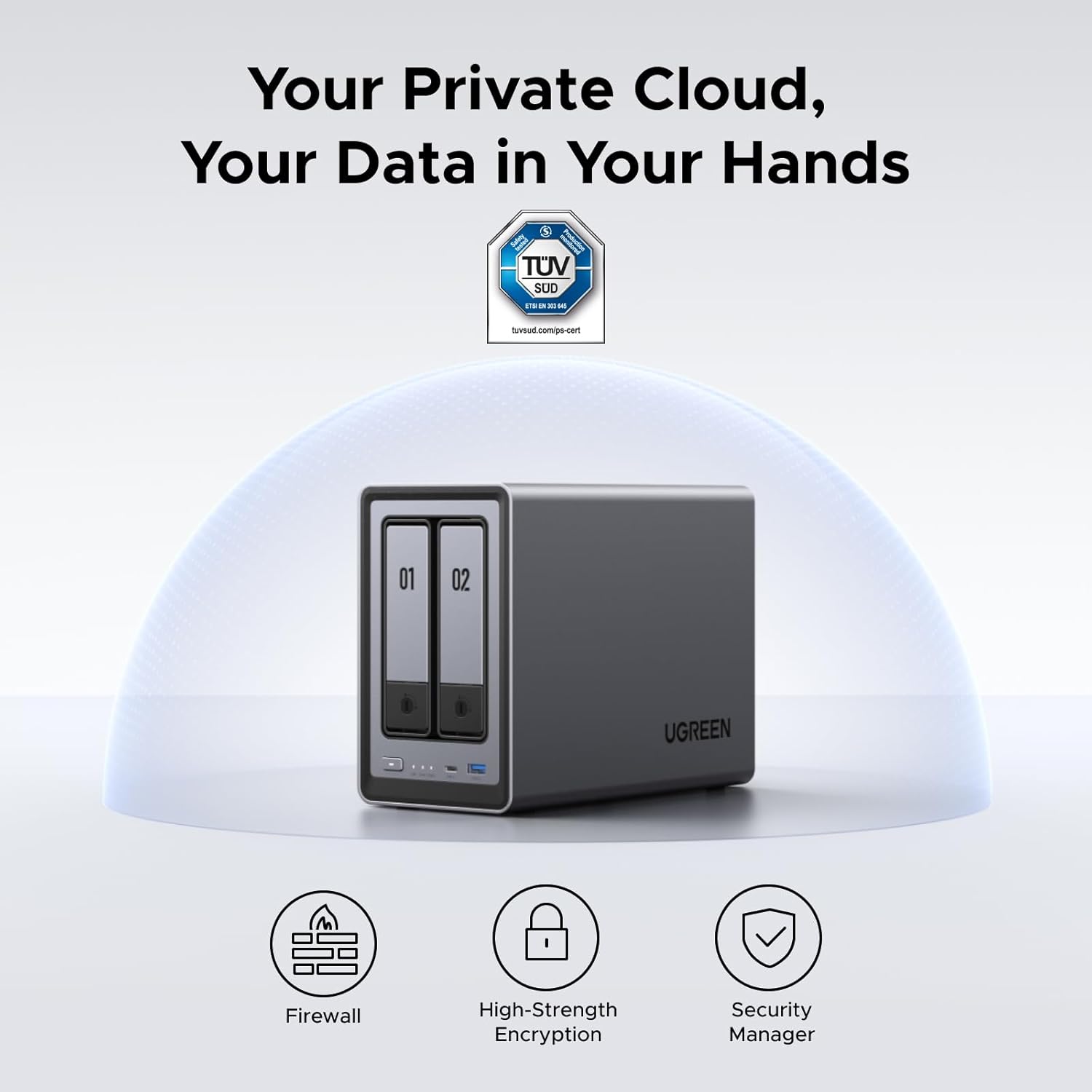

Yes, the UGREEN OS provides secure remote access capabilities, allowing you to access your private cloud from anywhere in the world using a web browser or the mobile app.

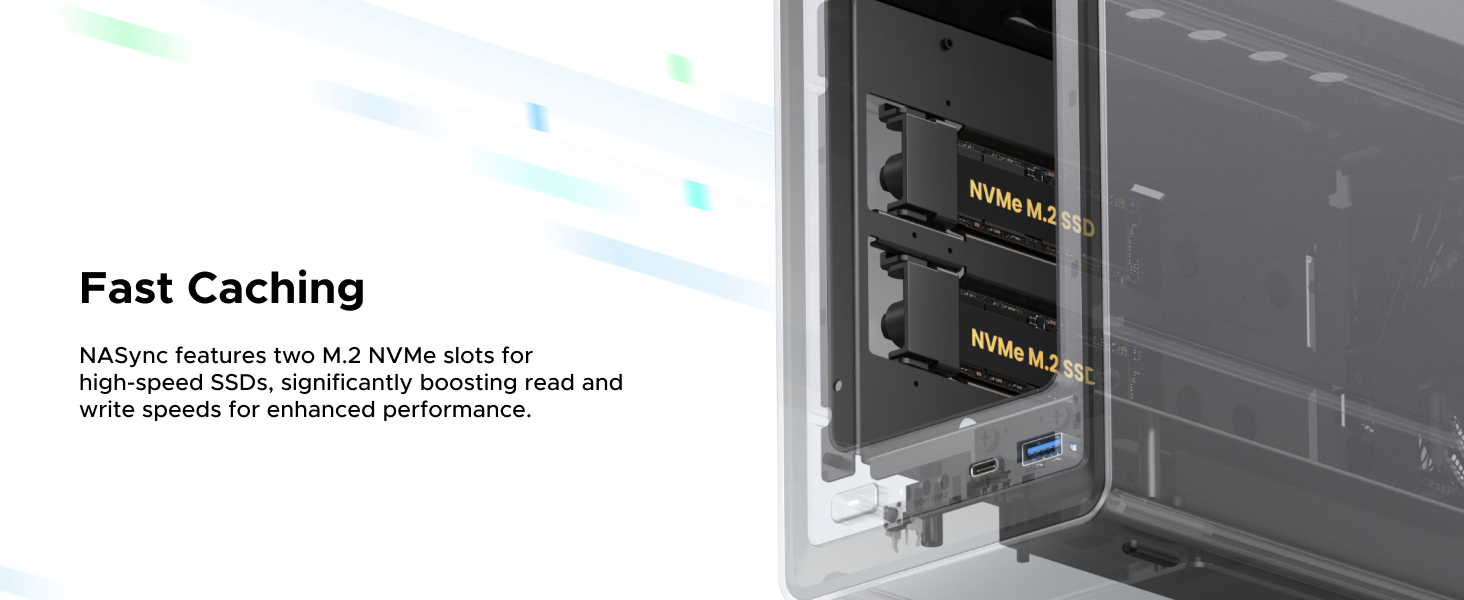

3. What is the purpose of the M.2 NVMe slots?
The M.2 slots are primarily used to install fast SSDs as a read/write cache, which significantly speeds up access to frequently used files and improves overall system responsiveness.

4. Is it difficult to set up for a beginner?
No, UGREEN has designed the setup process to be very user-friendly. A step-by-step guide in the UGREEN OS will walk you through the initial configuration, making it accessible even for beginners.

5. Can I use it to back up my family’s multiple computers?
Absolutely. You can create separate user accounts and set up automated backups for every Windows and Mac computer in your household to their own private or shared folders on the NAS.

6. Does it support Plex Media Server?
Yes, you can install the Plex Media Server application directly onto the NAS. The powerful Intel N100 CPU is excellent for on-the-fly transcoding of 4K video for various devices.

7. Where can I find warranty information?
This product comes with a 1-year warranty. For any claims or technical support, please visit our warranty and support page.

8. What RAID modes are supported?
The UGREEN OS supports various RAID configurations, including RAID 0 (Striping for performance), RAID 1 (Mirroring for redundancy), and JBOD, allowing you to balance speed and data safety.

9. Is the 8GB of RAM enough?
8GB of DDR5 RAM is ample for most home and small office tasks, including running several applications, media streaming, and file serving. It is also expandable if your needs grow.
